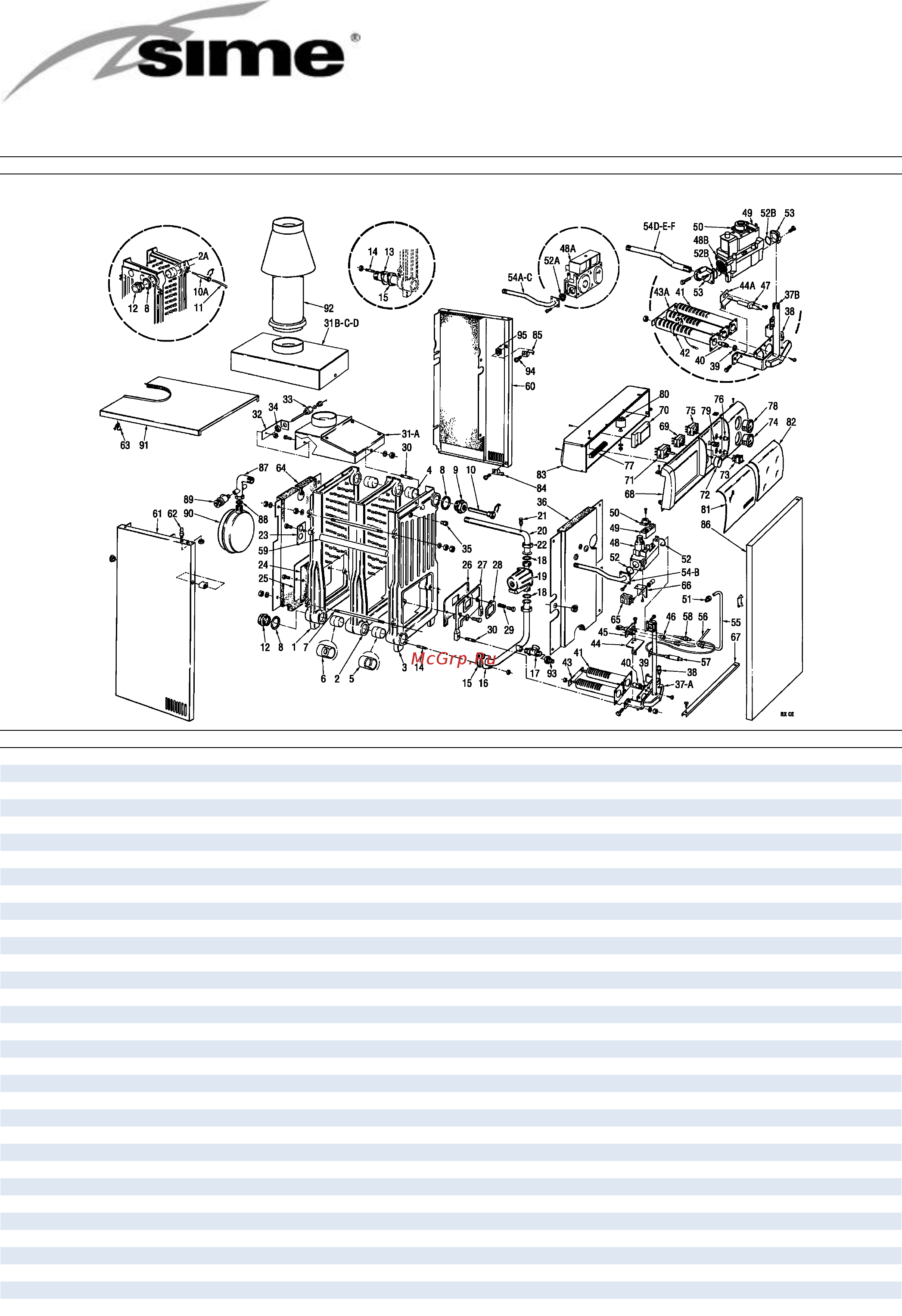

SIME RX 19 Взрывной чертёж онлайн

Fonderie Sime S.p.A. - Via Garbo, 27 - 37045 Legnago (VR) - www.sime.it

Tribunale Verona 13531 - R.E.A. VR 171357 - C.C.P. 19423375 - N° Mecc. VR 014435

Capitale Sociale Euro 5.521.200 int. versato - Codice Fiscale/Partita IVA n. IT 01275930236

Comfort Ambiente - Via Garbo, 27 - 37045 Legnago (VR)

Tel +39 0442 631111 - Fax Servizio Commerciale: Italia +39 0442 631291 - Estero +39 0442 631293

Fax Servizio Tecnico +39 0442 631292 - Fax Ufficio Acquisti +39 0442 631292 - Fax Amministrazione +39 0442

631336

8038413 CALD.GAS MET.RX 19 CE IONO

Posiz. Codice Descrizione

001 6263601 Rear section

002 6263701 Intermediate section

003 6263502 Front section

004 6193201 Push nipple 1-1/2"

005 6030302 Push nipple 1-1/2" with opening

007 6000522 Tie-rod M10X265

008 2030224 Gasket Ø 47,3x61x2

009 2041100 Reducer 1-1/2"x1/2"

010 5000000 Bulb holder 1/2" L=120

012 2041000 Plug 1-1/2"

014 6000607 Stud M10x33

015 6052700 Flange oval gasket

017 6179102 Drain cock 1/2"

023 6030500 Connections holder

024 6098801 Combust. chamber rear door insu

025 6019701 Combustion chamber door

026 6019801 Front door insulation

027 6019901 Front door

028 6037601 Window

029 2050000 Spring TDM

030 6000604 Stud M6x17 Zn

031 5065000 Built-in draught-diverter

032 6161801 Smoke stat bulb fixing plate

033 6070802 Bulb holder reducer

034 6146304 Brass nut M12x1

035 6228000 Non return valve 1/4"

036 6062404 Front panel

037 6183901 Burner manifold

037A 6183900 Burner manifold

038 6023100 Pressure test nipple Ø 1/8"

039 6022001 Aluminium washer Ø 10

040 6050260 Nozzle Ø 3,15 for natural gas

040E 6050204 Nozzle Ø 1,80 for L.P.G.
