Step 2： Entering the HyperTerminal

Open the HyperTerminal included in Windows after the connection established. The example

below is based on the HyperTerminal included in Windows XP.

1) Click Start menu - All Programs -Accessories -Communication - HyperTerminal.

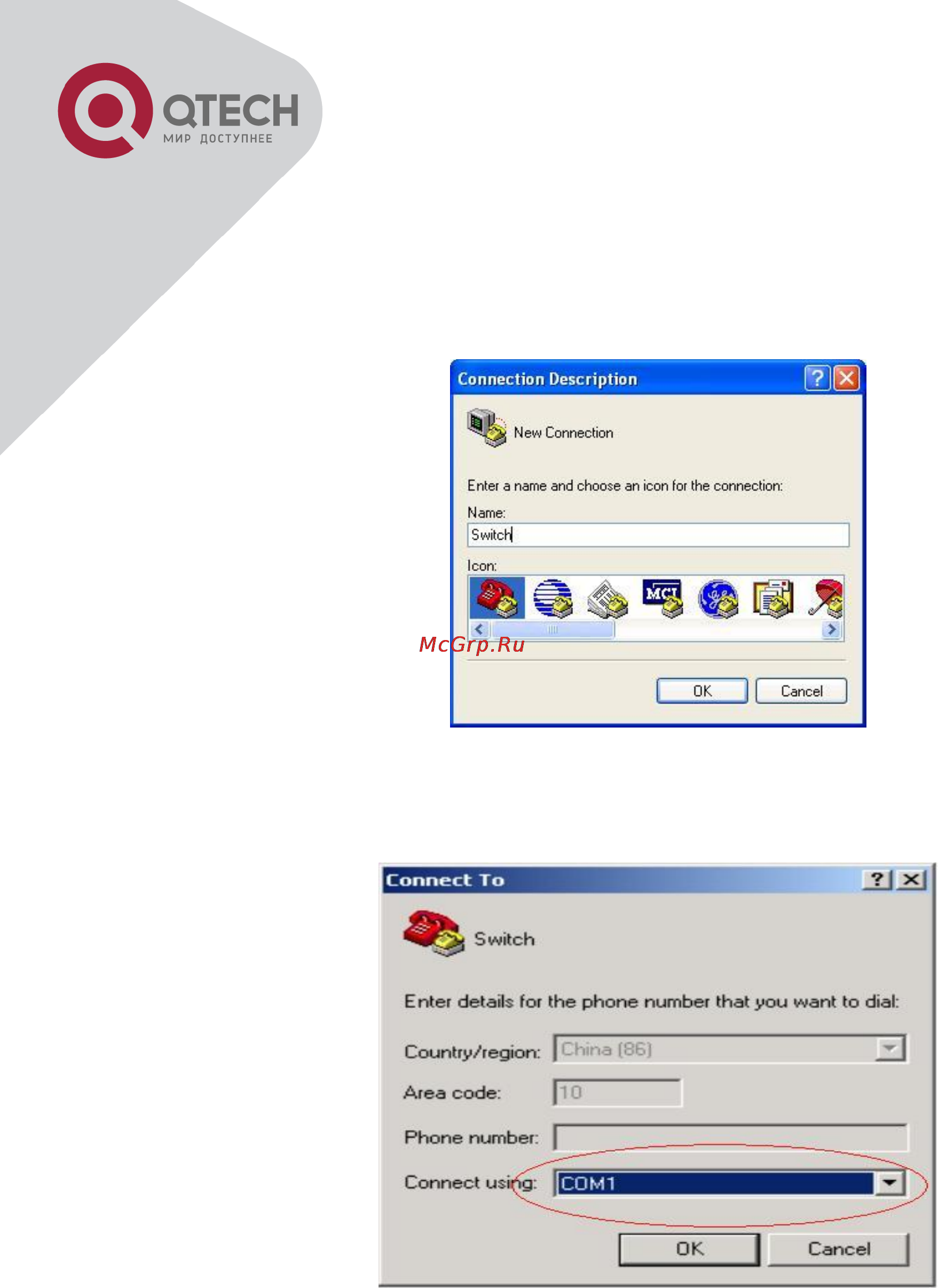

2) Type a name for opening HyperTerminal, such as “Switch”.

Opening HyperTerminal

3) In the “Connecting using” drop-list, select the RS-232 serial port used by the PC, e.g.

COM1, and click “OK”.

Opening HyperTerminal

4) COM1 property appears, select “9600” for “Baud rate”, “8” for “Data bits”, “none” for “Parity

checksum”, “1” for stop bit and “none” for traffic control; or, you can also click “Restore default”

and click “OK”.
