FLIR f=88,9 mm. (7°) для T6xx [4/5] Basic dimensions flir t6xx
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

FLIR f=88,9 mm. (7°) для T6xx [4/5] Basic dimensions flir t6xx

FLIR f=88,9 mm. (7°) для T6xx [4/5] Basic dimensions flir t6xx
2,66in
67,5mm
5,36in
136,2mm
4,96in
126mm
2,48in
63mm
Lens support
Optional
7,45in
189,4mm
8,41in
213,6mm
0,91in
23mm
3,5in
89mm
3,78in
96mm
For additional dimensions see page 1

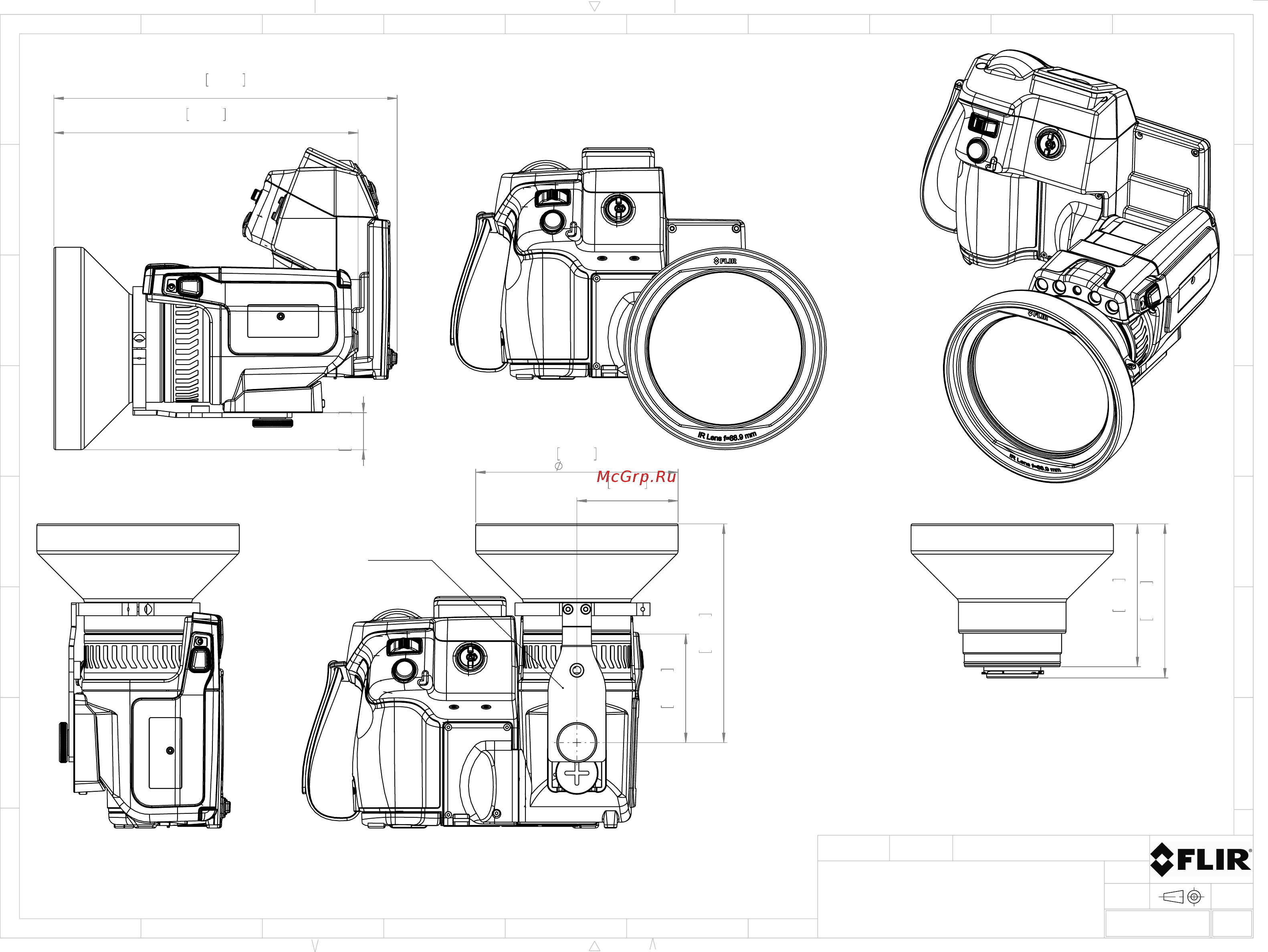

Camera with Lens IR f=88,9 mm (7°) incl support
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
6(9)
T127424
Basic dimensions FLIR T6xx
CAHA
2012-04-19
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Size
A
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-
