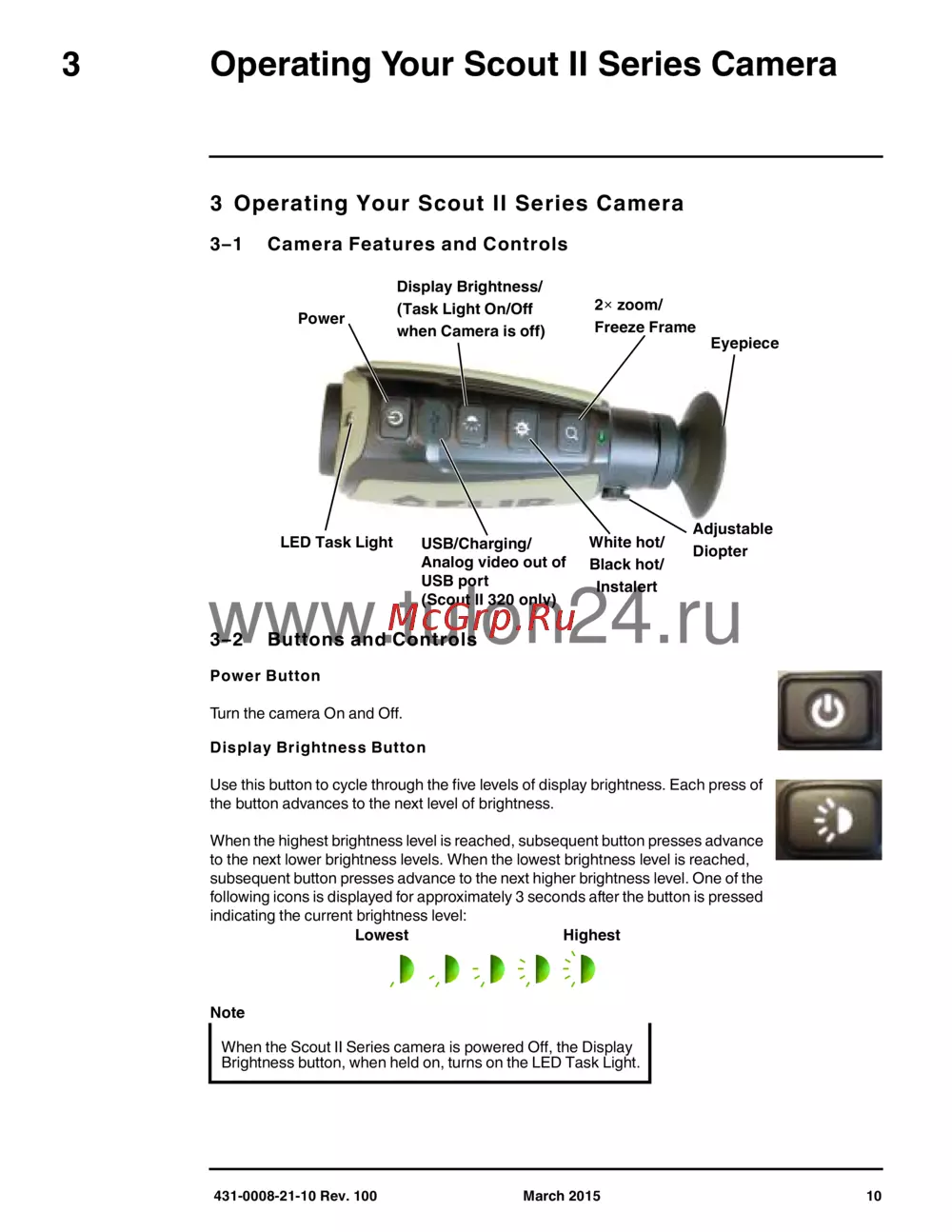

3 Operating Your Scout II Series Camera

3–1 Camera Features and Controls

3–2 Buttons and Controls

Power Button

Turn the camera On and Off.

Display Brightness Button

Use this button to cycle through the five levels of display brightness. Each press of

the button advances to the next level of brightness.

When the highest brightness level is reached, subsequent button presses advance

to the next lower brightness levels. When the lowest brightness level is reached,

subsequent button presses advance to the next higher brightness level. One of the

following icons is displayed for approximately 3 seconds after the button is pressed

indicating the current brightness level:

Note

When the Scout II Series camera is powered Off, the Display

Brightness button, when held on, turns on the LED Task Light.
