Wiring

Cable Connection

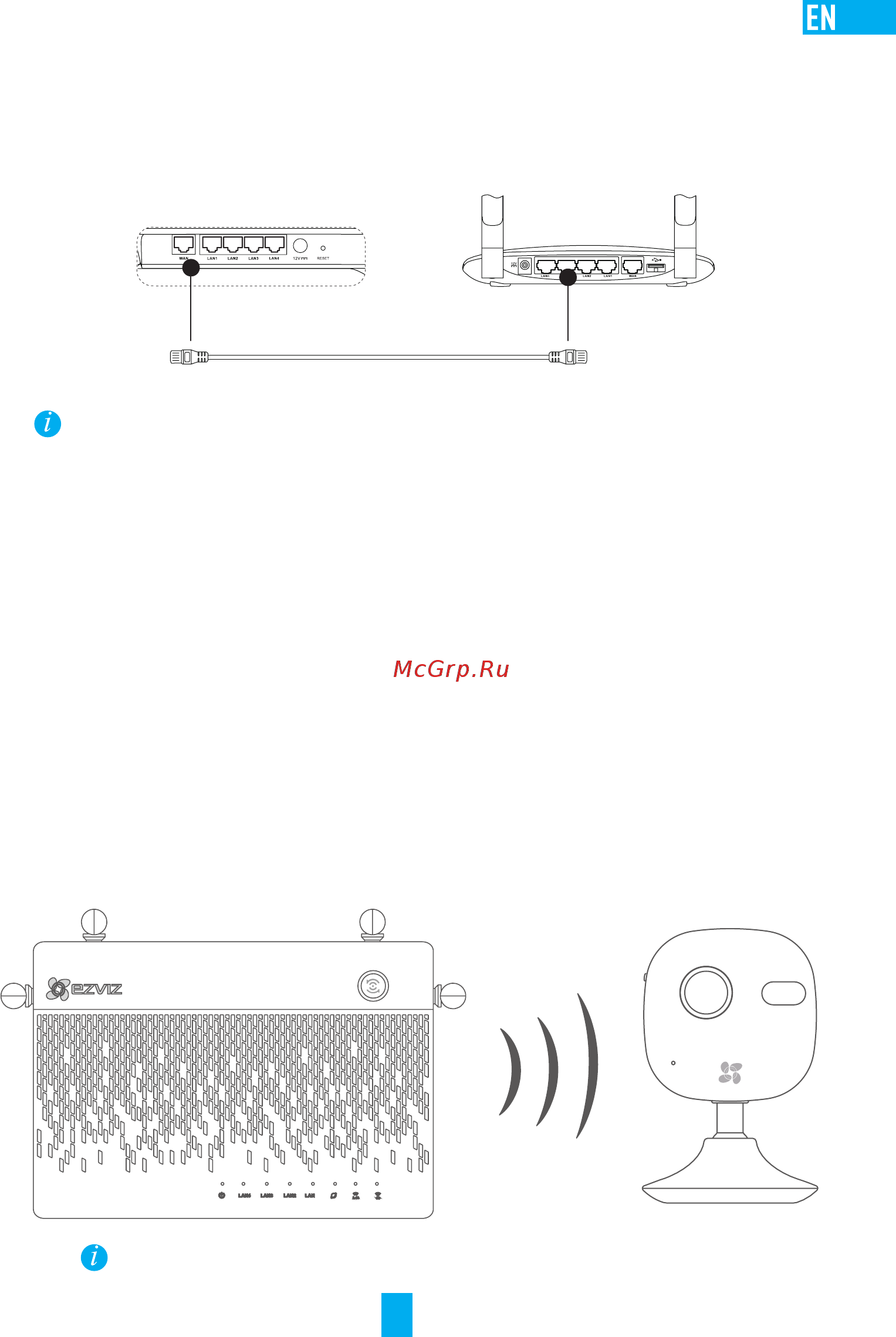

1. Connect the WAN interface of Vault Plus to the LAN interface of router, see ﬁgure below. When the

connection succeeds, the WAN network indicator displays green, and the system status indicator

displays green.

2. Connect the power cable to the Vault Plus, and the Vault Plus starts up within two minutes.

If you want to install the HDD by yourself, refer to the Appendix.

Setup

Powering on Device

(Before You Start) The camera should be within 20' (6m) from the Vault Plus.

1. Power on the camera.

- Wait until camera status light blinks alternating Blue and Red.

2. Press the One-Touch Access button of the Vault Plus.

- Its system status indicator light will start to ﬂash.

- The EZVIZ camera will automatically connect to it.

(Result) When the camera status light starts to ﬂash Blue, the connection process is complete.

Restore the camera if it has been connected to Wi-Fi before. You can connect to the device with One-touch access. For cameras that do

not support Wi-Fi, connect the camera to the LAN interface with the network cable.
