6. Commissioning
6.1 Assemblethetelescopicbracket

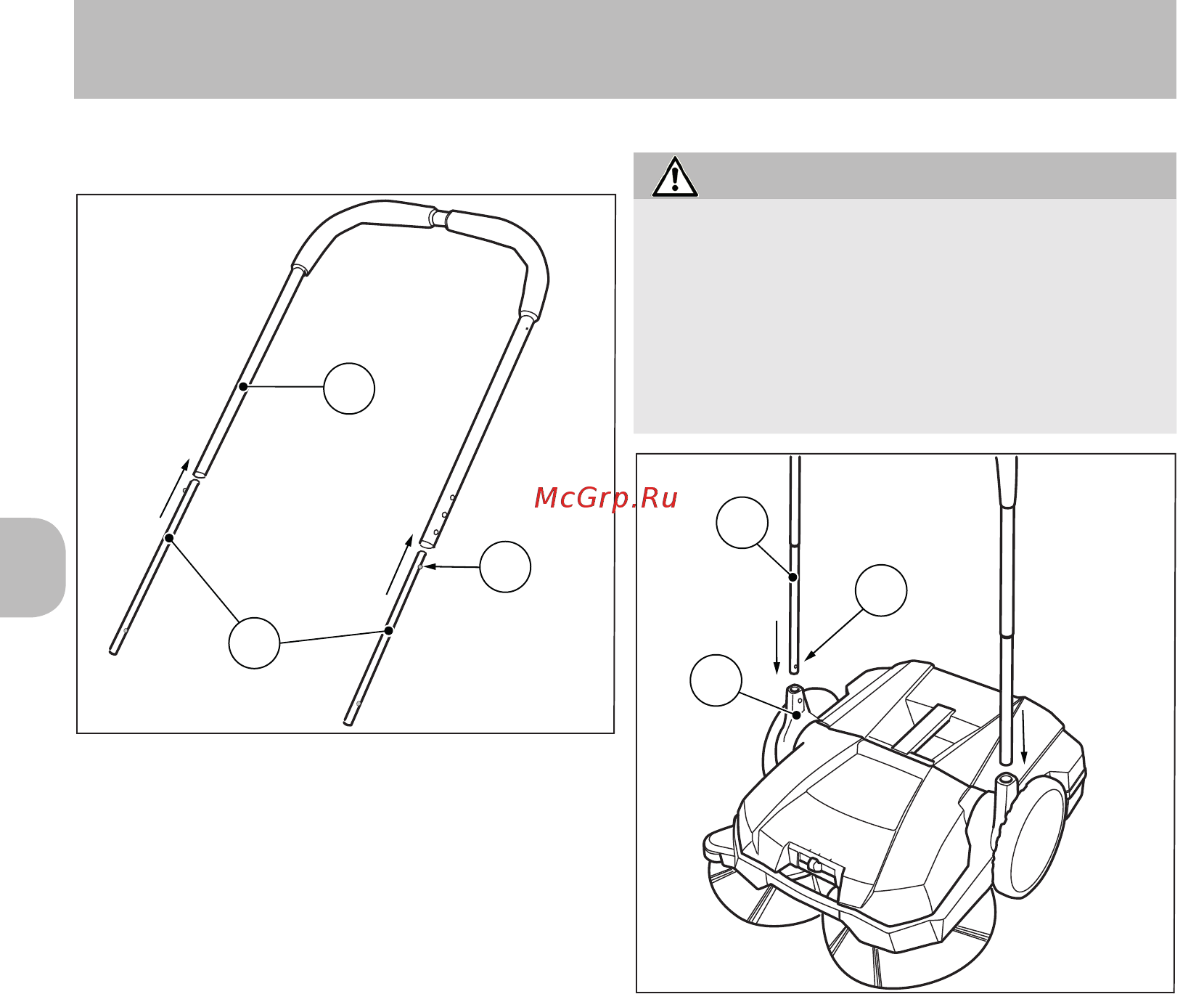

Fig.7:Assemblyofthetelescopicbracket
On delivery, the 2 telescopic pipes (1) and the
sliding brackets (2) or individual parts.
1. Press the locking springs (3) inwards on both
sides of the telescopic pipes.
2. Push the telescopic pipe (1) into the sliding
bracket (2).
3. Push the telescopic tube into the sliding
brackets until the locking springs on both
sides lock in.
» Make sure that the locking springs lock in at
the same height on both sides.
6.2 Assembletelescopicbracket
CAUTION
Riskofinjurythroughtippingoverofthe
telescopicbracket!
Tipping over of the telescopic bracket may
lead to slight injuries, such as jamming of
the nger or haematomas in users or other
persons.
• When carrying the device, hold it so that the
telescopic bracket cannot tip over.
Fig.8:Assemblyofthetelescopicbracket
1. Turn the handles (1) into the vertical position.
2. Press the locking springs (2) inwards on both
sides of the telescopic sliding bracket.
3. Push the telescopic sliding bracket (3) into
both handles simultaneously.
4. Push the telescopic sliding bracket into the
handles until the locking springs lock in.
Commissioning
1
2
3
2
1
2
3
3
1
