SWP 355

ConstructionandFunction

4. ConstructionandFunction

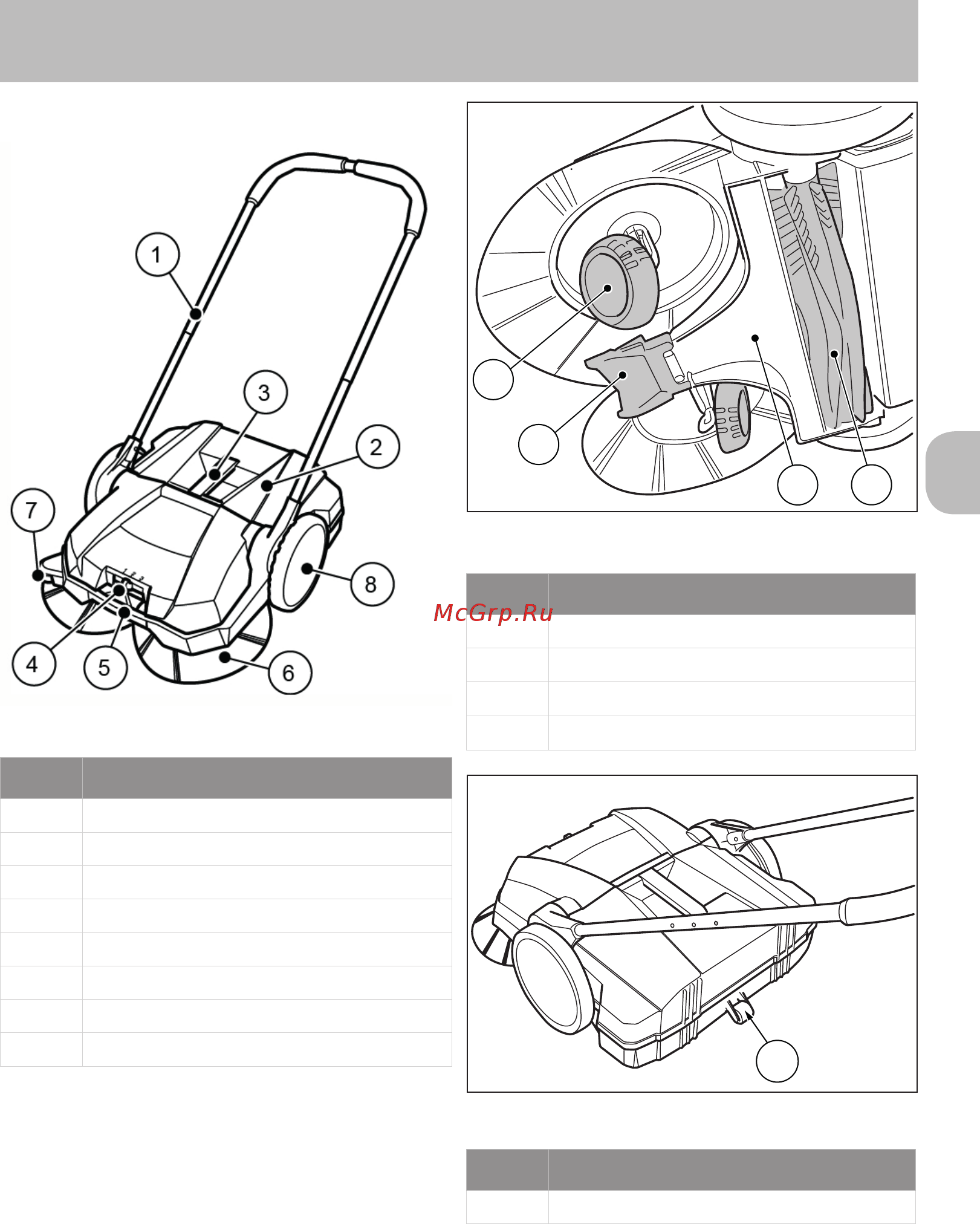

Fig.1:Componentoverview1

Item no. Component

1 Telescopic bracket

2 Sweeping container

3 Handle of sweeping container

4 Plate brooms – height adjustment

5 Carrying handle

6 Plate brooms

7 Lateral guide roller

8 Impeller

The device is moved forward by pushing, via

the telescopic bracket (1). At the same time the

2 plate brooms (6) convey the sweepings in the

direction of the sweeping container (2) with the

aid of the sweeper lip (11). The ne dirt sweeping

roll (9) conveys the rest of the sweepings into the

sweeping container (2).

Fig.2:Componentoverview2

Item no. Component

9 Fine sweeping roll

10 Helical gear

11 Sweeper lip

12 Sweeping plate

Fig.3:Componentoverview3

Item no. Component

13 Multi-roll
