XLiner 360 G XLiner 360 G

ACCURACY CHECK

Check of horizontal line

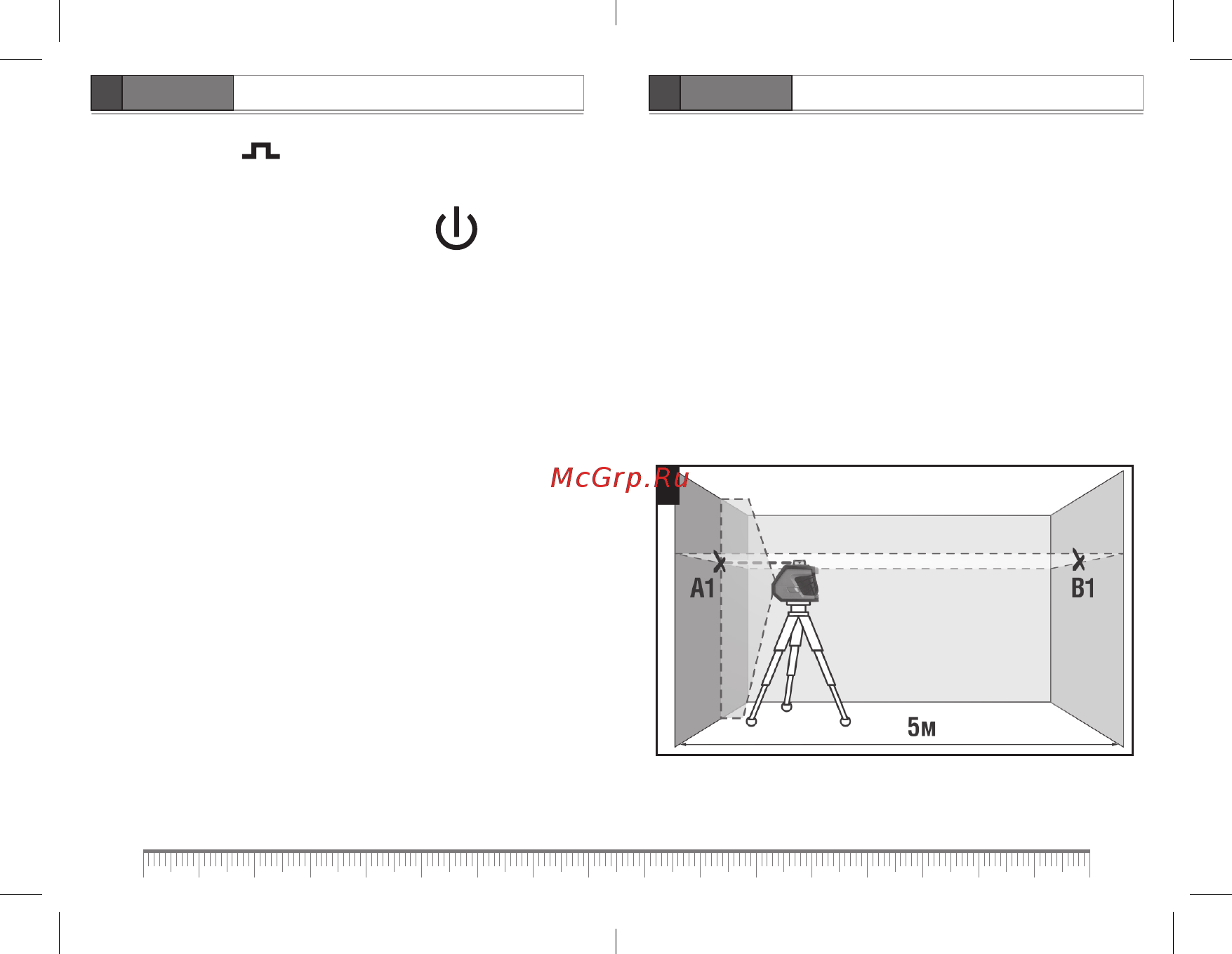

Check of horizontal line is carried out by using 2 walls A and B located

opposite each other at 5m distance.

1. Install the laser level as close as possible to wall A (see Fig.A). Unlock

compensator and switch on vertical and horizontal lines. Expand the

device emitters in the direction of wall A so that the crossing of the

laser lines on the wall is located in front of the laser level. Mark the

crossing point of laser lines as A1. Mark point B on the wall B.

2. Turn the instrument by 90°. Check misalignment of horizontal line

and point B1 (see Fig. B). If deviation between the laser line and the B1

mark exceeds 1 mm, please contact service center.

3. Repeat step 2 for 2 more times, turning the laser level in one

direction.

Short press button to switch on/off pulse mode that allows

working with laser receiver. In this mode pulse mode indicator will

turn red.

To switch the laser level off short press button several times

until all laser planes are off.

Attention! To increase operating time and avoid the risk of

unintentional blindness switch the laser on only when you are ready

to work.

If operated near objects or air streams with the temperature different

from the environment the laser line may tremble due to heterogeneity

of the atmosphere. The longer the distance, the more trembling of the

laser line can be observed.

The width of the laser line increases as soon as operating distance

increases as well. The layout should be made along the axis of the laser

line. For maximum accuracy, use the middle portion of the laser line.

It should be noted that the shape of the laser line on the object’s

surface (e.g., walls, ceilings, etc.) depends on the curvature and tilt of

the surface relative to the laser plane.
