CONDTROL UniX 360 Set

ProDuCt DesCriPtion

This cross line laser UniX 360 Set CONDTROL is intended for determining and checking horizontal

and vertical lines. (see figure A-C). This mode allows constructing inclined planes (see figure D).

The measuring instrument is suitable for operation in enclosed working sites and outdoor.

It has 2 operation modes:

- working with automatic levelling. Levelling function automatically compensates irregularities

within the self-levelling range of ±4°(see figure E,F).

- working without automatic levelling for inclined planes. (see figure D)

PULSE mode allows to use laser receiver to increase a working range of the instrument or to work

when laser is hard to define in bright lighting conditions.

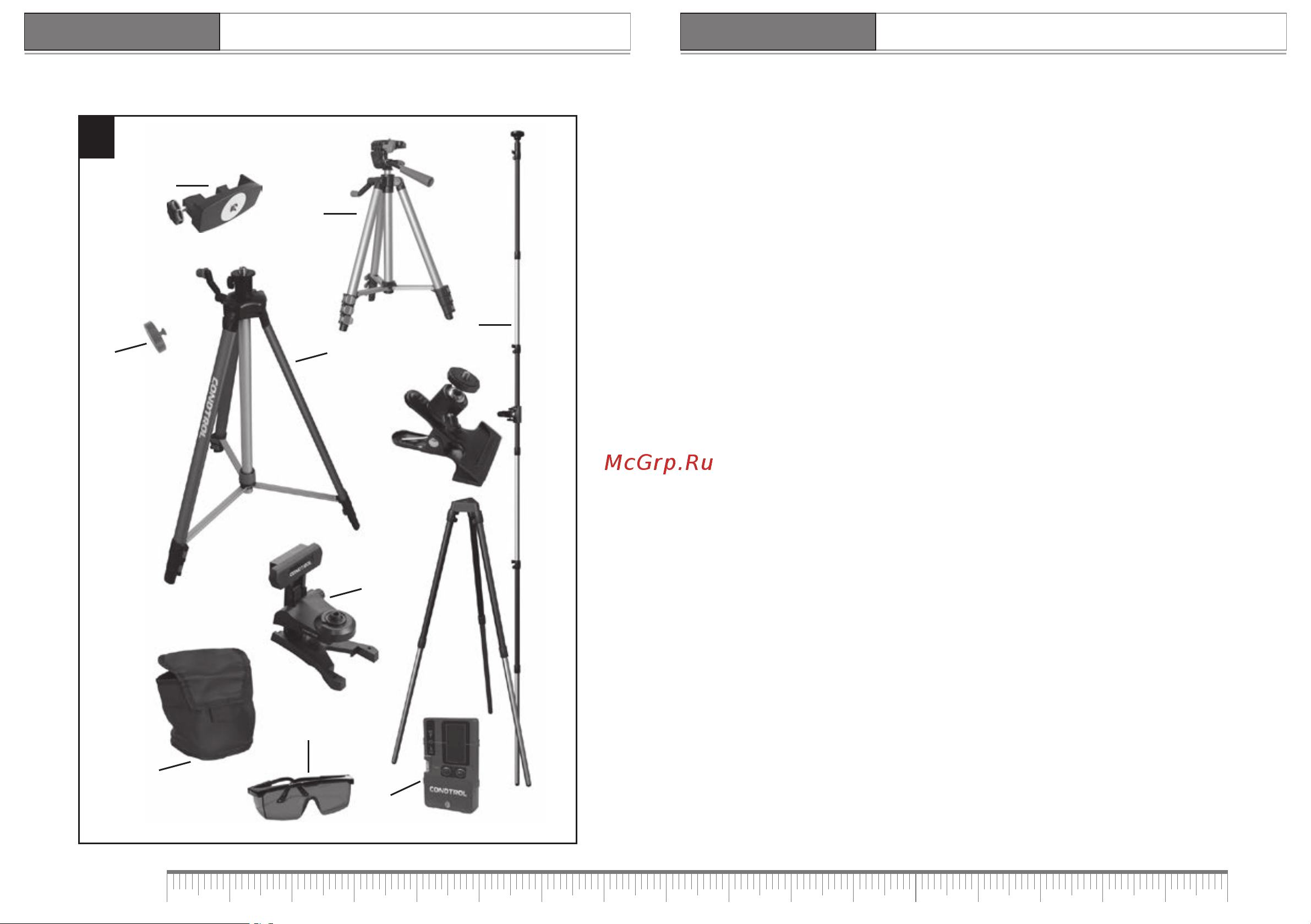

1 - Laser lines apertures

2 - Mode switching button

3 - Switch on/off pulsed mode button / automatic levelling switch on/off

4 - Low Battary indication

5 - Pulse mode indication

6 - Battery cover

7 - Tripod mount 1/4’’

8 - On/Off switch

9 - Crew mount

10 - Tripod with elevational head 1/4”*

11 - Tripod-Transformer*

12 - Universal Wall Mount *

13 - Pouch

14 - Laser intensive Glasses

15 - Electronic Receiver*

16 - Tripod 1/4’’

17 - Universal mount Clamp*

18 - Magnetic holder

* The accessories illustrated or described are not included as standard delivery set.
