Fan connection to a network

ATTENTION!

All options, including linking, configuration, maintenance and repair must be

performed only when the main voltage is off.

Electricians with special access to the executed work, install fans.

Disconnecting items from a network have to be built in stationary conducting, according to

installation rules. The disconnecting device has to disconnect all poles. The ground cable shouldn’t

be broken off.

The fan and the service controlling equipment has to be isolated from power supply during the

installation time and service. The equipment has to be grounded.

Uncover the distribution block, study wiring diagram (Pic.2) and make necessary connections.

Make sure, there is grounding.

After the end of connecting works and checking of connections to a distribution box, move a cover

and make sure that it is fixed.

ATTENTION!

The equipment can not be used by persons (including children) with limited physical,

mental or intellectual abilities or if they have no skills or knowledge, unless they are

controlled or instructed how to use appliance by a person responsible for their safety.

Children must be under supervision to avoid playing with the device.

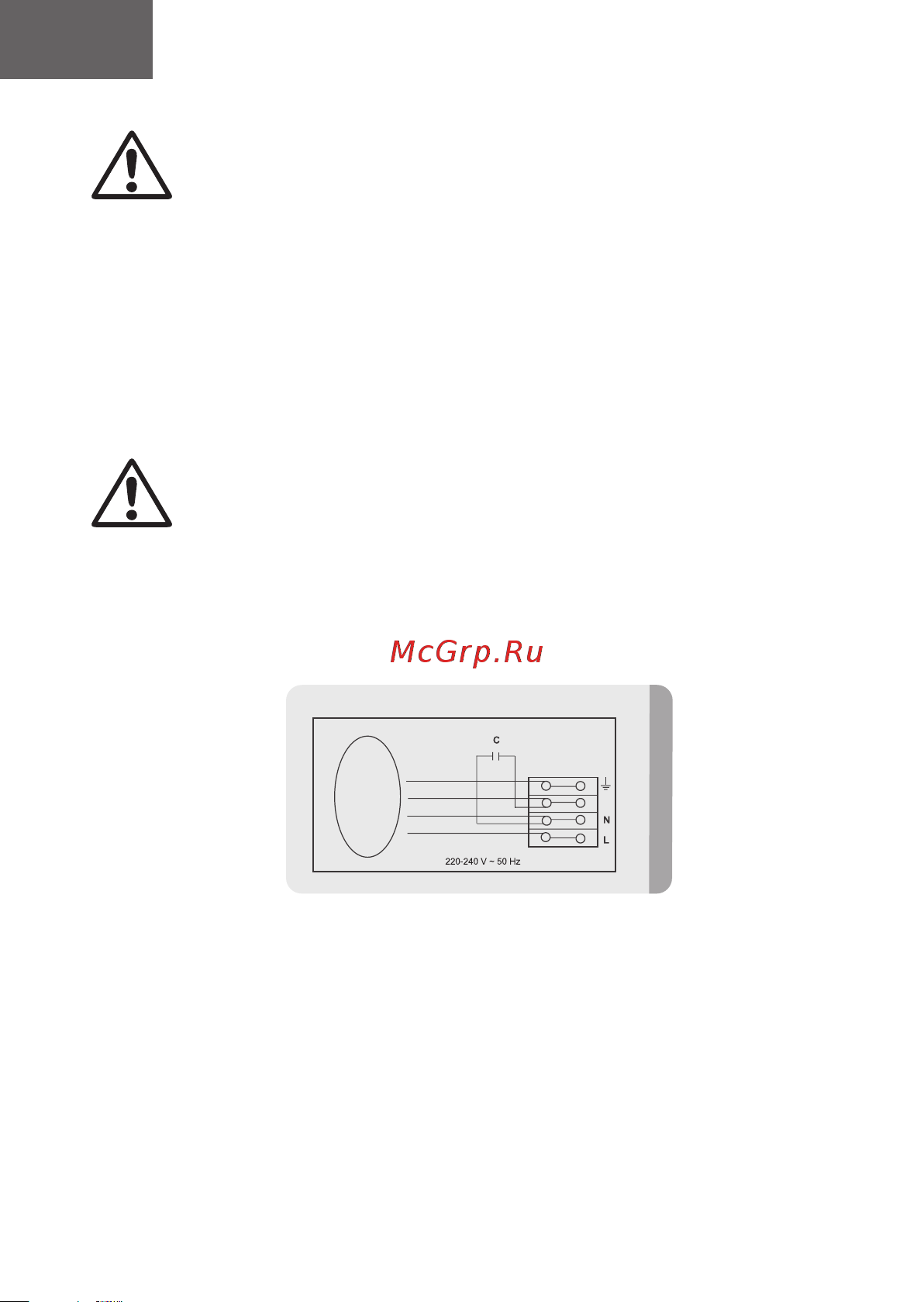

Wiring diagram MARS/TORNADO

YELLOW/GREEN

BROWN

BLACK

ENGINE

BLUE

Pic. 2

Maintenance

• switch off the fan;

• disconnect it from air ducts and air dispensers and remove from the installation site;

• remove dust from blades of the driving wheel, using a soft dry brush or cloth;

• clean blades of the driving wheel, using soapy water;

• wipe all plastic parts with a soft cloth dampened with soapy water;

• wipe all surfaces dry;

• assemble and install the fan in place;

• recommended to do the cleaning 1 time in 6 months.
