INSTALLATION INSTRUCTIONS

Installation method

1. Installation of main body

Drill holes in the wall according to the dimensions of the gas water heater and fix

the M6 expansion bolts. Hang up the hanging bracket slot of the gas water heater

on the expansion bolt. Fix the gas water heater by screwing the nuts. Fix the

lower hanging brackets with two plastic expansion bolts.

2. Installation of water pipes

• The size of cold and hot water connector is G1/2.

• Before connecting up the appliance it is necessary to thoroughly flush and

purge the water and gas pipes in order to remove filings or other waste from

them.

• For the convenience of maintenance please install the water inlet valve near

the appliance.

• Connect the cold water and hot water pipes in correct order. Markings are

located on the bottom of the gas water heater near the connectors.

• Purge air from water pipes by opening all the taps, hot and cold. Then turn off

the taps and check for water tightness.

Important!!

The maximum inlet water pressure must be limited to 10 bar. If the water

supply is more than 10 bar or subject to pressure fluctuations above 10

bar, a pressure limiting valve must be installed to limit the pressure to 10

bar maximum.

Minimum water pressure is 0,2 bar.

Warning!!

Water with a temperature higher than 50°C can cause serious burns.

Always verify water temperature before use.

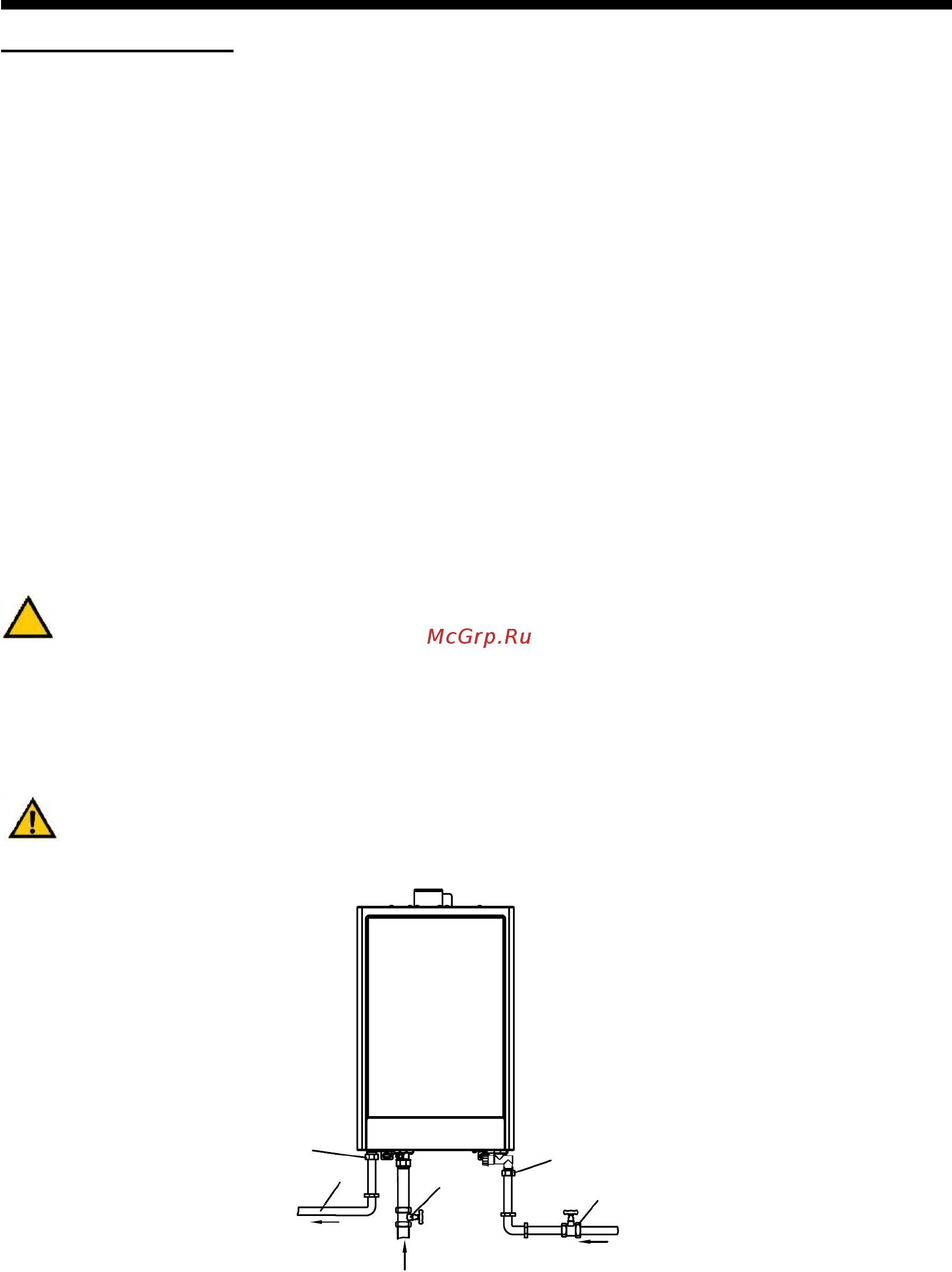

Connector

Water inlet valve

Cold water inlet

Hot water outlet

Gas inlet

Water pipe

Gas

valve
