AXISP1204NetworkCamera

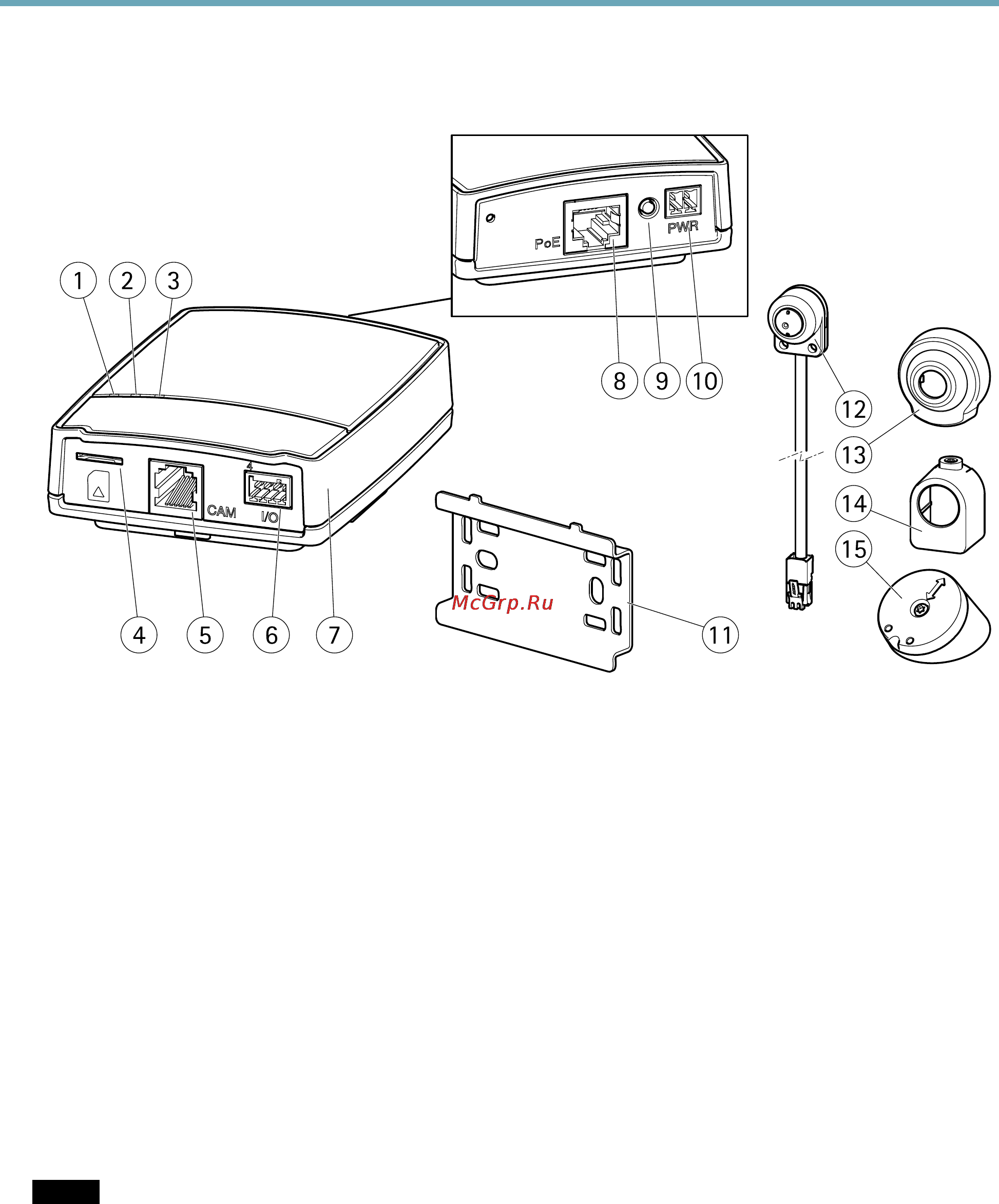

HardwareOverview
HardwareOverview
10
11
98
7
321
654
12
13
14
15
1
PowerindicatorLED
2
StatusindicatorLED
3
NetworkindicatorLED
4
SDcardslot(microSDcard)
5
Cameraconnector
6
I/Oterminalconnector
7
Mainunit
8
Networkconnector
9
Controlbutton
10
Powerconnector
11
Mountingrail
12
Sensorunit
13
Cover
14
Straightmountingbracket
15
Angledmountingbracket
Connectors
Fortechnicalspecications,seepage45.
Networkconnector-RJ45Ethernetconnector.SupportsPoweroverEthernet(PoE).
NOTICE NOTICE
NOTICE
Theproductshallbeconnectedusingashieldednetworkcable(STP).Allcablesconnectingtheproducttothenetworkswitch
shallbeshielded(STP)andintendedfortheirspecicuse.Makesurethatthenetworkswitchisproperlygrounded.For
informationaboutregulatoryrequirements,see.
SDcardslot-Astandardorhigh-capacitymicroSDcard(notincluded)canbeusedforlocalrecordingwithremovablestorage.
