AXISQ7406VideoEncoder
HardwareOverview
HardwareOverview

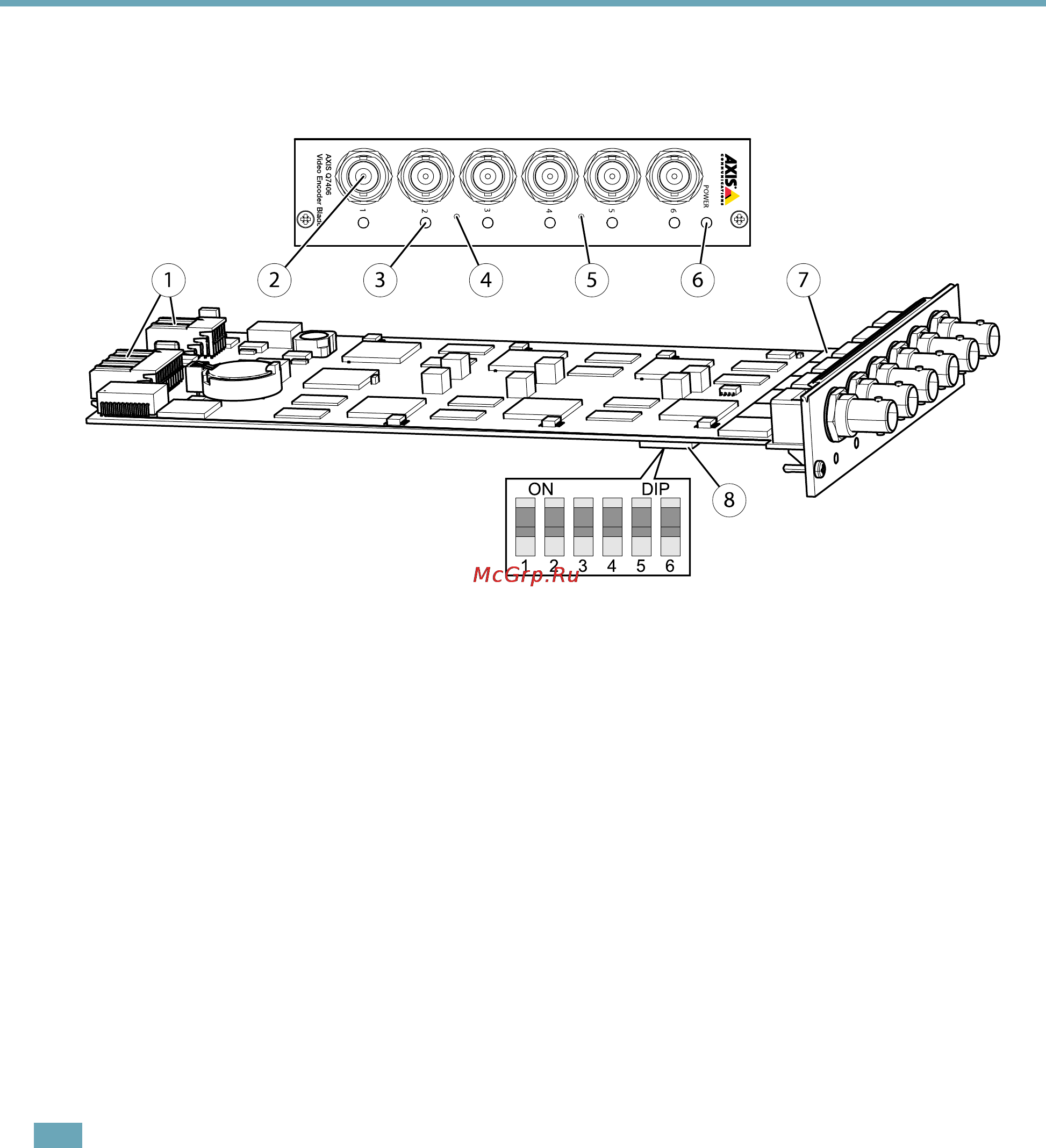

1 2 3 4 5 6
DIPON
1
2
3
4
5
6
POWER
1 2 3 4 5 6 7
8
1.
Busconnectors
2.
BNCconnectors1–6
3.
StatusLEDs1–6
4.
Controlbutton
5.
Restartbutton
6.
PowerLED
7.
S/NandP/Nlabel
8.
DIPswitches
ConnectorsandButtons
Fortechnicalspecications,seepage55.
BusConnector
Thebusconnectorsarethephysicalinterfacestothevideoencoderchassisthatprovidepower,network,RS485,andI/Oterminal
connections.
BNCConnector
Eachvideoinputisterminatedusingacoax/BNCconnector.Connecta75Ohmcoaxialvideocable;therecommendedmaximum
lengthis250m(800ft).
Note
IfthevideosourceisconnectedinparallelwithotherequipmentusingaBNCTadaptor,disabletheinputterminationby
settingthe75OhmterminationswitchtoOFFtoavoidreducedimagequality.
ControlButton
Thecontrolbuttonisusedfor:
•Resettingtheproducttofactorydefaultsettings.Seepage49.
•ConnectingtoanAXISVideoHostingSystemservice.Seepage43.Toconnect,pressandholdthebuttonforabout1
seconduntiltheStatusLEDashesgreen.
