PRELIMINARY SETUP

Before beginning setup at the table saw or router

table, make sure that the silver micro-adjust knob is

adjusted so that the set screw in the slotted hole on

the red knob is aligned approximately centered on the

engraved line. This is the “home” position and while

not every setup may require this “home” position, it

is a good place to start when moving the IBOX to a

new station. To reset, first loosen the black positioning

lock knob located on the top of the IBOX. Hold the

red knob in place as you rotate the silver micro-adjust

knob until you see the set screw aligned as shown in

Detail 1A. While the black positioning lock knob

is still loose, rotate the red knob to bring the (2) pin

plates together as shown in Detail 1B. You’ll see the

pin plates located just inside the fence cutout. After

adjusting, tighten the black positioning lock

knob, Fig. 1.

Now let’s get set up at your work station. If you are

setting up at the table saw, read the “Setting up at

the Table Saw” section that follows. For the router

table, jump ahead to “Setting up at the Router Table”

beginning on page 4.

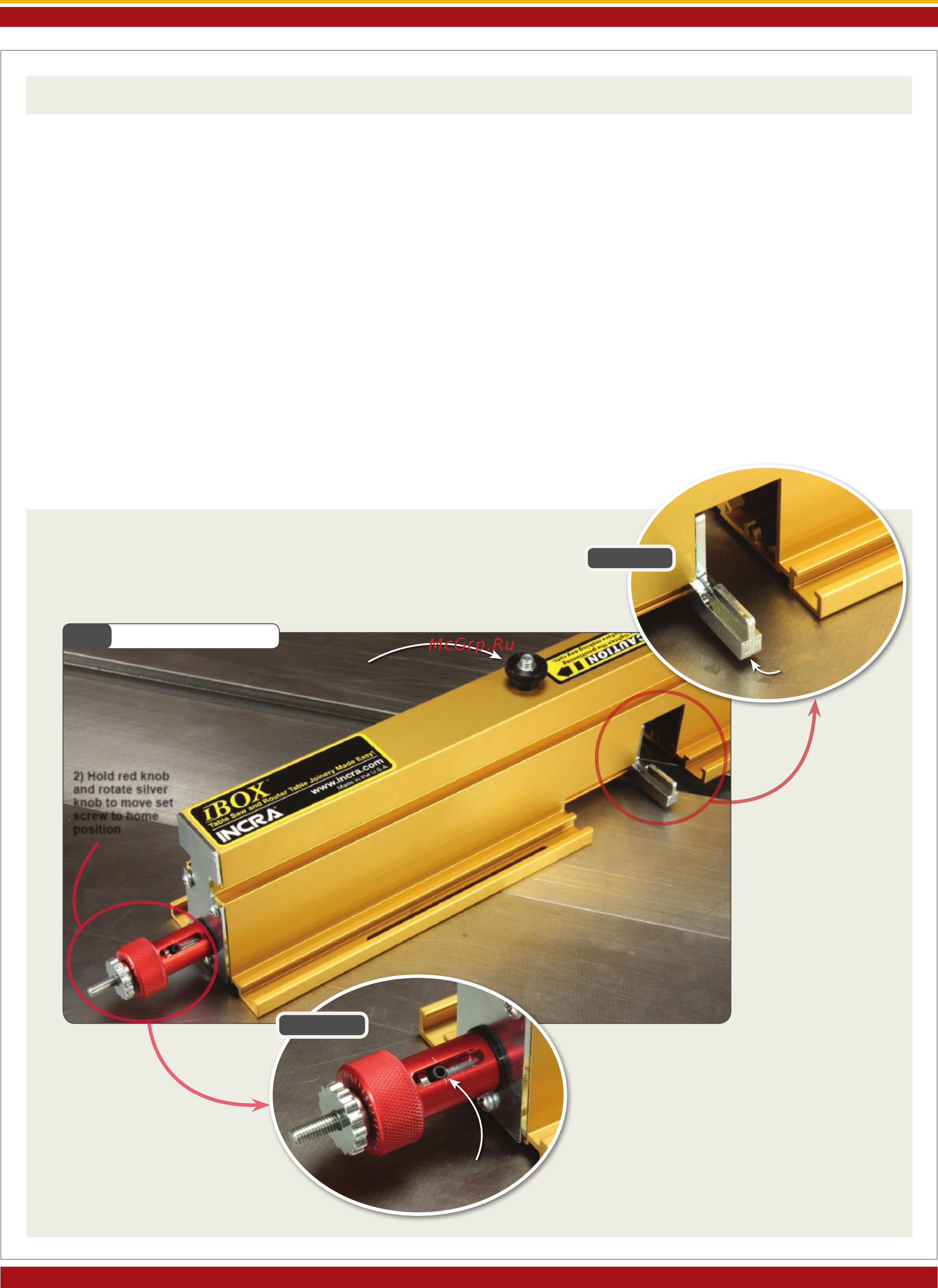

Fig. 1

Preliminary Setup

2) Hold red knob

and rotate silver

knob to move set

screw to home

position

1) Loosen lock knob

Detail 1A

Detail 1B

Set screw at home

position

Bring pin

plates

together
