INCRA IBOX OWNER’S MANUAL
Manufactured by Taylor Design Group, Inc. P.O. Box 810262 Dallas, TX 75381 W W W . I N C R A . C O M
Page 6
2. Attach Blade Guards
Before attaching the blade guards you’ll need to
identify the component positions. Turn the IBOX
upside down and support it on a couple of 3/4” stock
scraps. Hold the (2) blade guards with the square
cut corners facing the fence so that the low and high
cutouts in the guards match the low and high fence
notches. The cutouts will only align one way, Fig. 8.
Once you have identified which side each blade guard
mounts to, use the included 1/4-20 x 2-1/4” hex bolts
with washers and 1/4-20 thumb nuts to attach the
guards to the T-slots on the fence and Stock Ledges.
Before tightening the thumb nuts, make sure that the
deep cutouts on the guards are aligned with the blade
notch on the fence, Fig. 9.
3. Attach Backing Board & Deflector Shield
Insert (2) #10-32 x 1/2” flat head Phillips screws
into the upper holes on the provided backing board.
Thread on (2) #10-32 rectangular nuts then slide the
nuts into the T-slot on the front face of the IBOX
fence, Fig. 10. Center the backing board on the
fence length and tighten the fasteners. The alternate
holes on the backing board allow you to flip the board
over when needed for a fresh backing surface. Using
the (2) #8 x 1” pan head Phillips wood screws and #8
flat washers, attached the deflector shield to the front
blade guard so that the deflector projects forward over
the cutter. Fig. 11 provides dimensions for making
your own backing boards for future use.

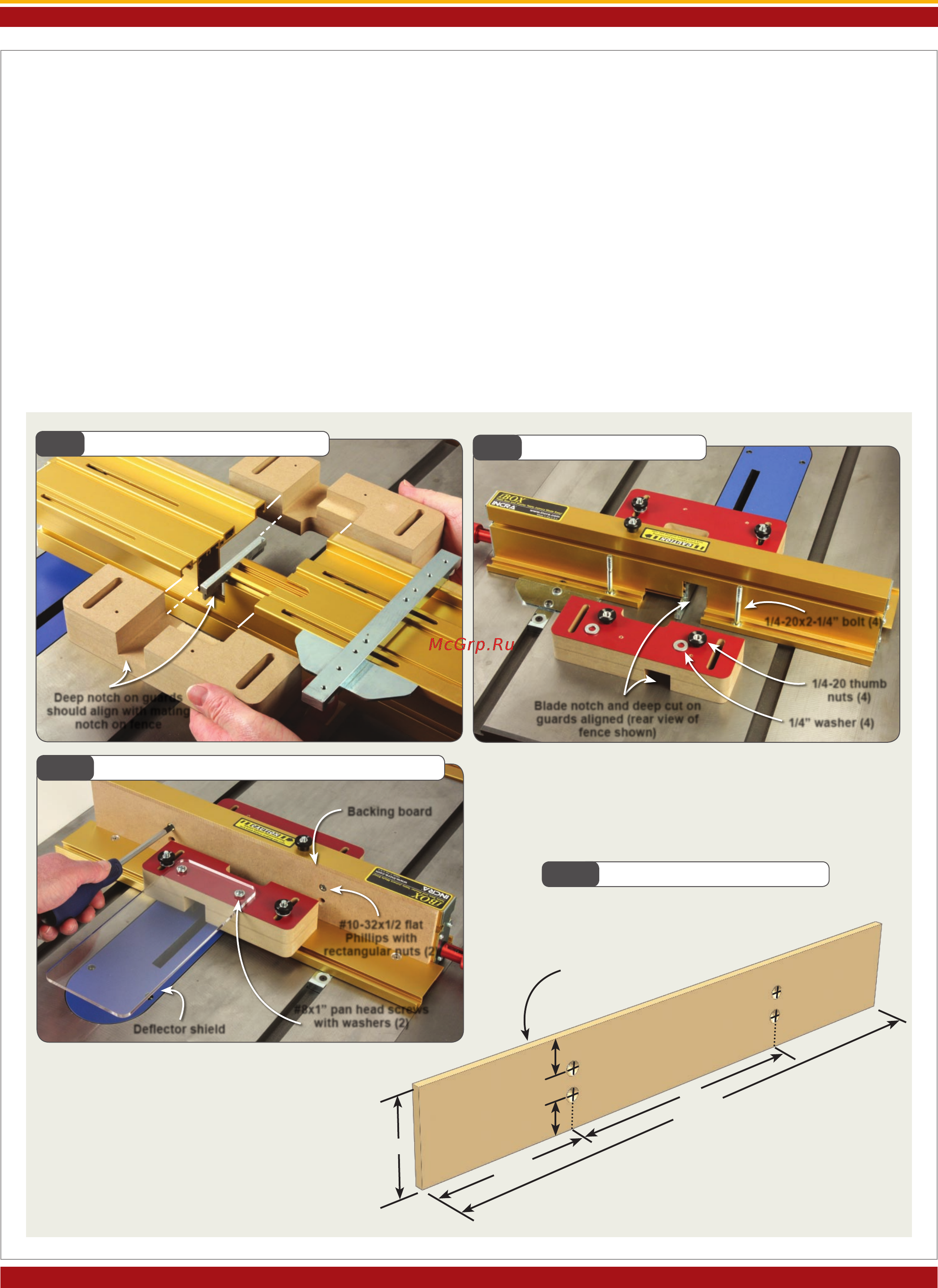

Fig. 8
Identify Guard Components
Fig. 9
Attach Blade Guards
1/4-20x2-1/4” bolt (4)
1/4” washer (4)
Deep notch on guards
should align with mating
notch on fence
Blade notch and deep cut on
guards aligned (rear view of
fence shown)
1/4-20 thumb
nuts (4)
Fig. 10
Attach Backing Board and Deector Shield
Deector shield
Backing board
#8x1” pan head screws
with washers (2)
#10-32x1/2 at
Phillips with
rectangular nuts (2)
Fig. 11
Backing Board Dimensions
1”
1”
1/4” MDF
8”
2-3/4”
4-7/8”
17-3/4”
