Bort BHR-1600 [4/24] Assembly

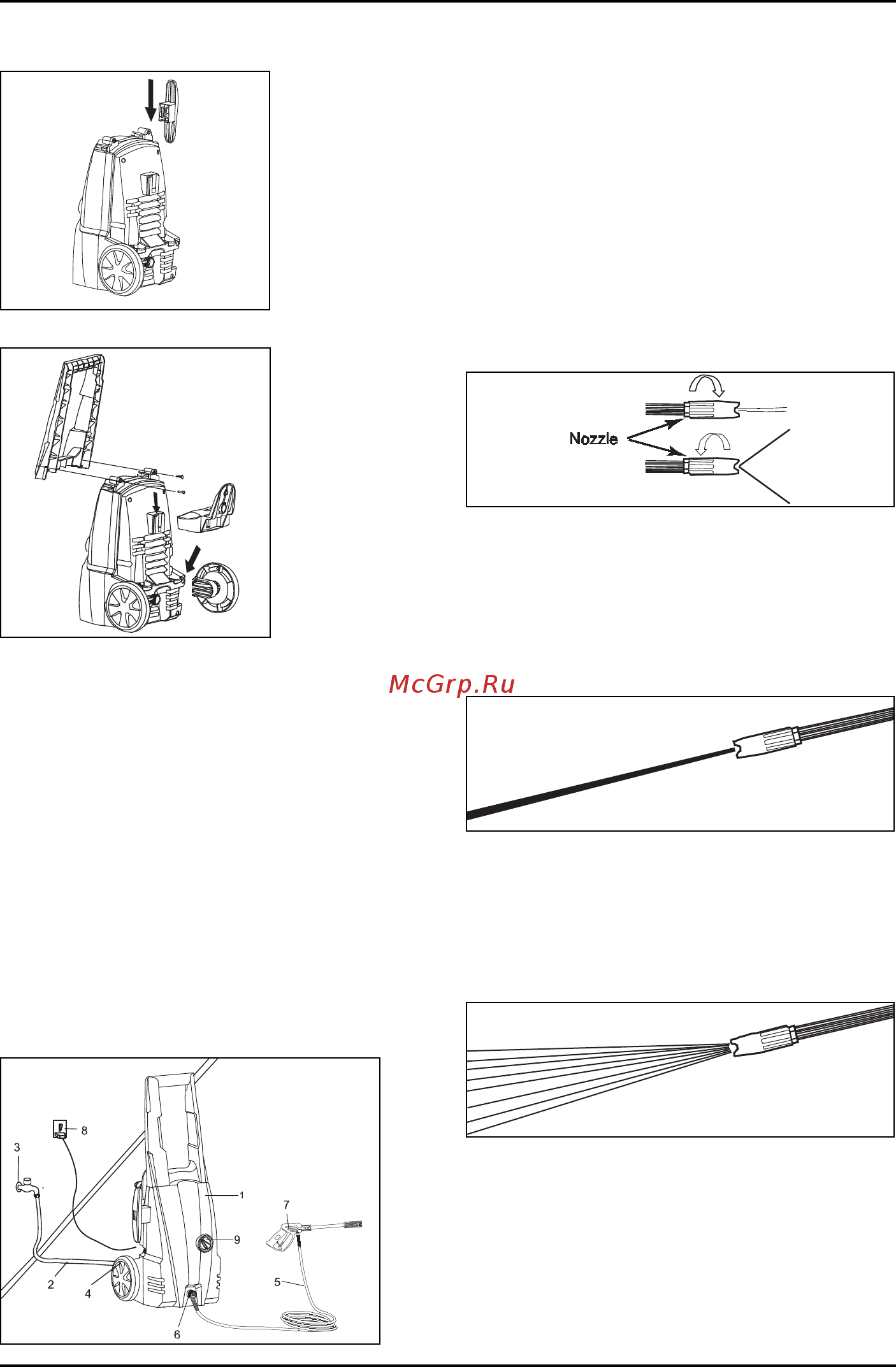

![Bort BHR-1600 [4/24] Assembly](/views2/1642819/page4/bg4.png)
4
1. pressure cleaner
2. water supply hose
3. water connection
4. water inlet
5. high pressure tube
6. water outlet(backside)
7. spray gun
8. power supply
* No. 2, 3, 8 are not included
PRE-OPERATION
ADJUSTING FAN PATTERN
The angle of spray coming out of the lance may be ad-
justed on some lances by rotating the nozzle. This will
vary the spray pattern from approximately a 0° narrow
high impact stream to a 60° wide fan spray.
(See Figure2)
Figure 2 - Adjusting nozzle for fan pattern
(not applicable on some nozzle)
A narrow stream has high impact force on the clean-
ing surface and results in maximum deep cleaning in
a concentrated area. However, this narrow high impact
spray must be used cautiously, as it may damage some
surfaces.
Figure 3 - Narrow high impact stream
A wide fan pattern will distribute the impact of the water
over a larger area, resulting in excellent cleaning action
with a reduced risk of surface damage, Large surface
areas can be cleaned more quickly using a wide fan
pattern.
Figure 4 - Wide fan pattern
NOZZLE CLEANING INSTRUCTIONS
A clogged or partially clogged nozzle can cause a sig-
nifi cant reduction of water coming out of the nozzle and
cause the unit to pulsate while spraying. To clean out
the nozzle:
• Turn off and unplug unit.
• Turn off water supply. Relieve any pressure trapped in
the hose by squeezing trigger 2-3 times.
3. ASSEMBLY
You will need a standard screw driver.
Insert cable hook hold into the machine, as the fi g.
Align holes on the bottom of the pressure cleaner as
shown and tighten the 2 screws, and fi t the wheel to
the machine, as the fi g.
CONNECTION
1. Attach the high pressure hose to the pressure water
outlet of the machine.
2. Attach the spray handle to the high pressure hose.
Prior to operating the machine please ensure that
the high pressure hose has been completely un-
coiled. Whilst the machine is in operation the hose
MUST not loop.
3. Mount the nozzle or any other equipment you want
to use.
4. Connect the machine to the water and power sup-
plies.
INSTALLATION, ELECTRICAL
AND WATER CONNECTIONS
