84
Troubleshooting

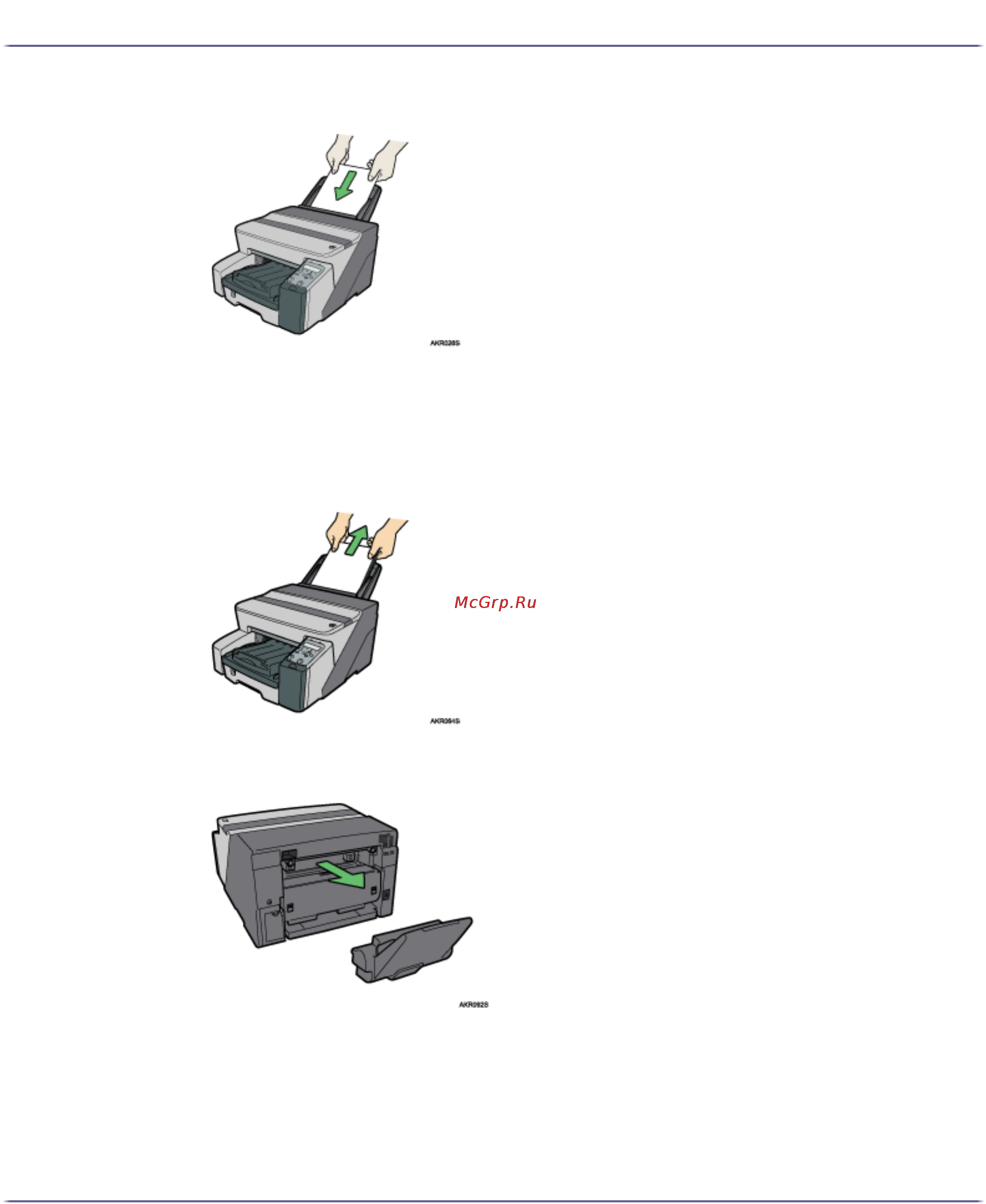

3. Load paper in the bypass tray with the side to be printed on facing up.
Printing cannot start until the machine finishes cleaning its head. Load the paper in the bypass tray when
cleaning finishes.
Insert the sheet straight into the bypass tray.
If it is difficult to remove jammed paper, follow the procedure below to remove it.
1. Remove any paper in the bypass tray.
2. Push the bypass tray extension in.
3. Detach the multi bypass tray.
