ASSEMBLY

Assembly is easy and requires no tools.

●

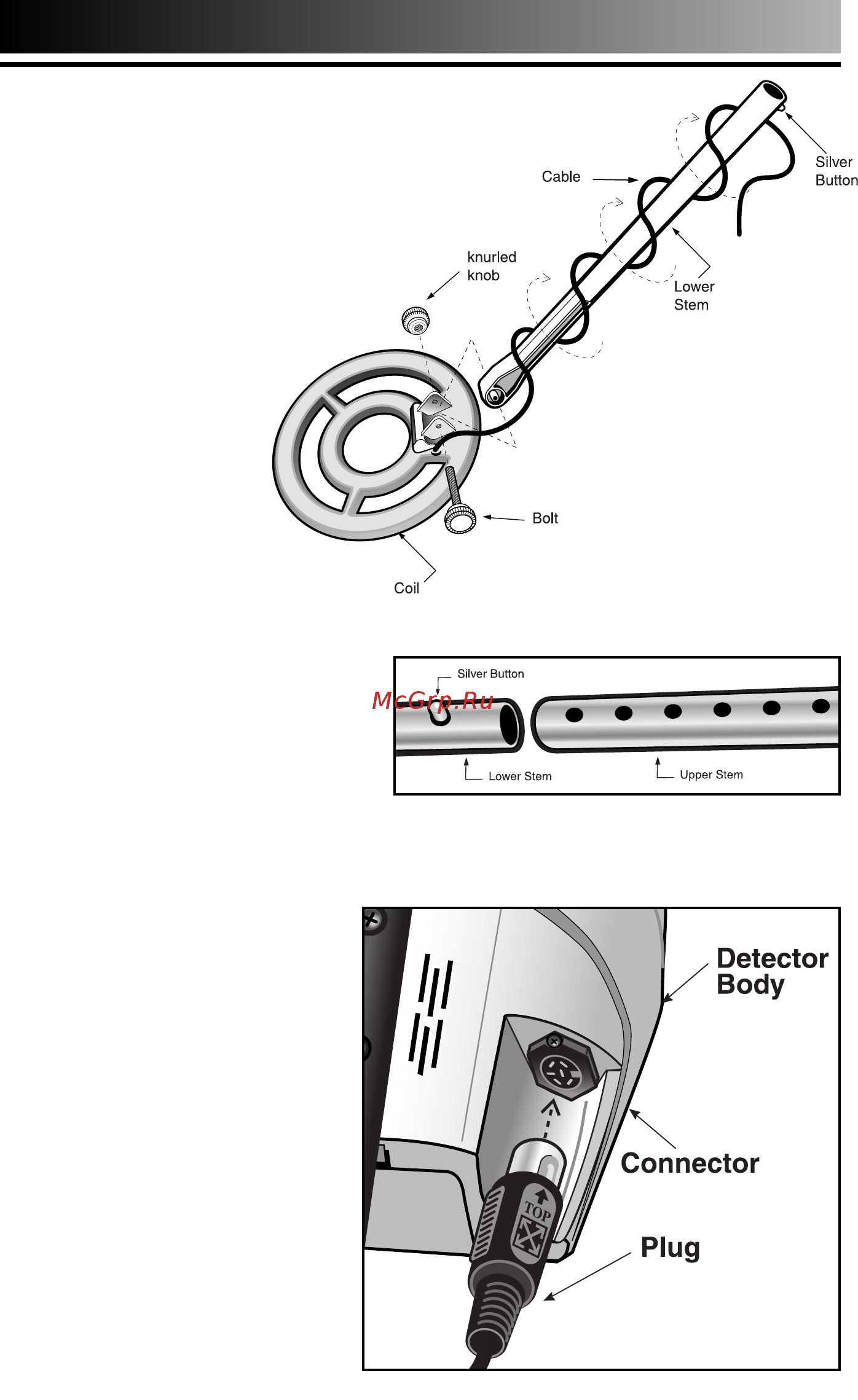

1 Position the lower stem (the straight tube)

with the silver button toward the back.

Using the bolt and knurled knob,

attach the search coil to the

plastic extension protruding

from the lower stem.

●

2 Press the button on

the upper end of

the lower stem,

and slide the lower

stem into the

upper stem.

Adjust the stem to a length

that lets you maintain a

comfortable upright

posture, with your arm

relaxed at your side, and

the search coil parallel to

the ground in front of you.

●

3 Wind the cable securely around the stem.

●

4 Insert the plug into the

matching connector on

the right underside of the

detector body. Be sure

that the key-way and

pins line up correctly.

Caution: Do not force the

plug in. Excess force

will cause damage.

To disconnect the

cable, pull on the

plug.

Do not pull

on the cable.
