6. Screw (5  25 mm)

7. Metal strap

8. Flat washer

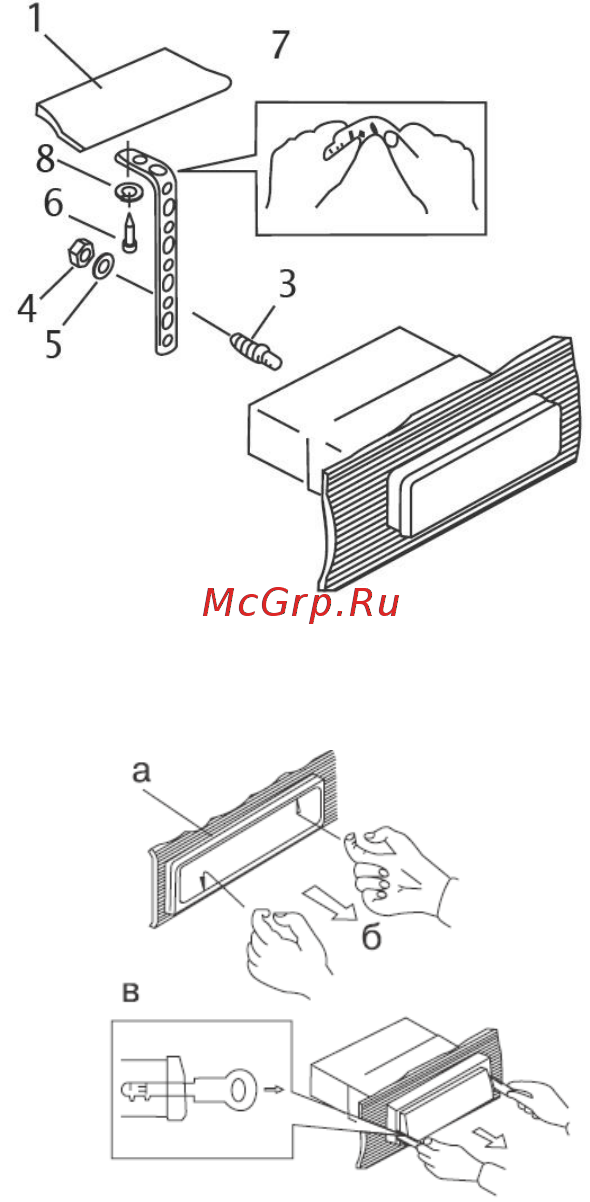

1. Install the sleeve into the dashboard; ensure it is

installed with the correct side and there are no obstacles

(wires, dashboard elements, etc) for the unit installation.

2. After installing the sleeve into the dashboard, bend tabs

fitting to the size of the dashboard to fix the sleeve in

place.

3. Use the metal strap to fix the rear side of the unit.

Determine a place for fixing and install the strap as

shown in the picture. You can bend the strap to the

needed angle with your hands.

4. Make the necessary wire connections. Ensure the

connections are correct.

5. Install the unit into the sleeve until the side locks are

fixed.

Dismantling the unit

 – Trim frame

 – Frame uninstall direction

 – Release key insertion

1. Switch off the unit and detach the front panel.

2. Insert your fingers into the groove in the front side of

the trim frame (apply some effort to detach the frame).

Pull the frame to detach it.
