3. Insert the supplied release keys into the both sides of the unit body to click, as shown in

the picture. To extract the unit from the dashboard, pull the release keys or the unit

body to pull it out. Before detaching the unit, ensure it is not fixed with the metal strap.

Trim frame installation

To install the trim frame, press it to the unit body and push it to fix it in place. This should

be done before installing the front panel; otherwise you are not able to install the trim

frame. When the trim frame being installed, the side with the groove should face down and

fixed first.

2. DIN REAR-MOUNT (Method B)

For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the

help of the factory radio mounting brackets.

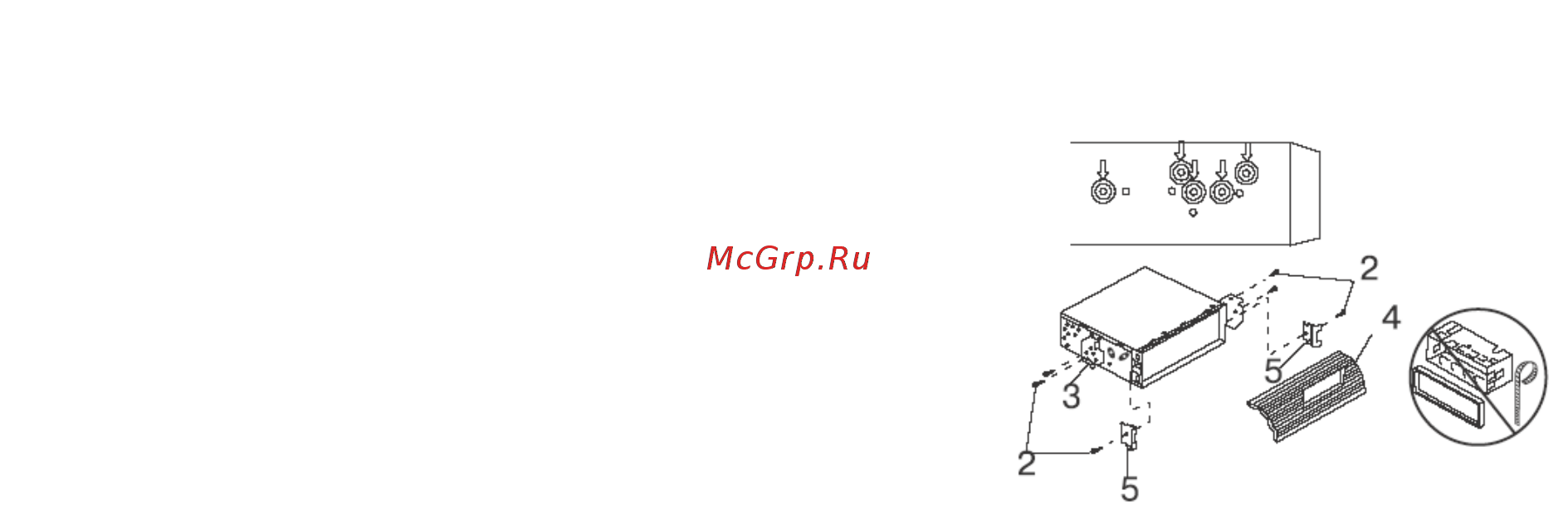

1. Select a position in which the screw holes of the

brackets (3) are aligned with the screw holes in the unit

body, and screw in two screws (2) in each side.

2. Screw.

3. Factory radio mounting brackets.

4. Vehicle dashboard.

5. Lock (remove this part).

Note: The outer trim frame and mounting sleeve are not used for method of installation.
