MOUNTING OF A COOKER HOOD WITH

SLIDER CONTROLS

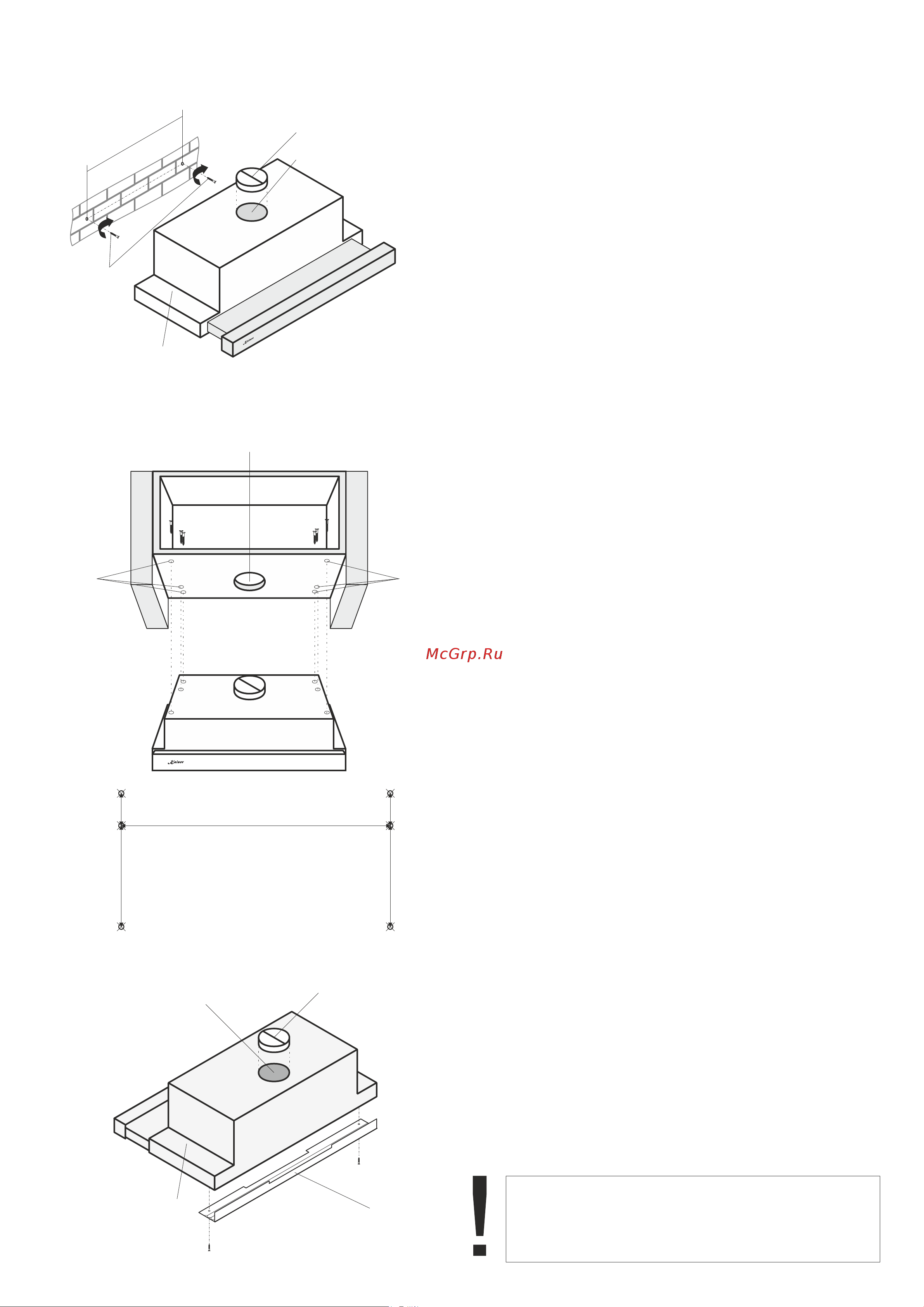

Mounting on the wall

• Trace a vertical line on the wall to indicate the

centre of the cooker plate.

• Place the hood body 1 on the wall to get min 650

mm from the cooker plate (see p. 14). Level it

horizontally. Use the bottom of the rear side of the

hood as ruler to trace the line.

• Measure a distance between the hood’s bottom

and the holes. Trace a horizontal line on the wall

on the same distance above the bottom line. Mark

the mounting holes on the wall: 496 mm between

the holes or 248 mm between each hole and the

central line.

• Drill the holes using a drill of Ø 8 mm, drive the

plugs in and then tight the screws 2.

• Hang the cooker hood 1 on the screws 2.

• Mount the V-flap 3 on the exhaust outlet of the

cooker hood 4.

Mounting under a wall unit

• Drill in the wall unit the 6 holes 5 in predefined

places using a drill of Ø 4 mm.

• Mount the V-flap 3 on the exhaust outlet of the

cooker hood 4.

• Fasten the cooker hood with a 6 screws, operate

inside of the wall unit.

• For the air extractor mode of the cooker hood

make an opening 6 in the bottom of the wall unit in

advance, in accordance with the drawing.

• To close possible space between the cooker hood

and the wall, use a plastic spacing bar 7 on the

rear side of the device.

• f the cooker hood will be operate in odour I

absorber mode it is necessary to install charcoal

filter.

ATTENTION!

Before the beginning of the operation it is

obligatory to remove an adapter inside the cooker

hood.
