SwAPPing houSing DooRS

To secure the HD HERO & LCD BacPac assembly into the

housing, you will need to replace the standard back door

with one of the included extended back doors. A total of 4

doors are supplied with the LCD BacPac; 2 waterproof

doors (standard + wrist housing models) and 2

non-waterproof doors (standard and wrist housing

models). The skeleton doors allow for better audio and

camera cooling when waterproong is not needed.

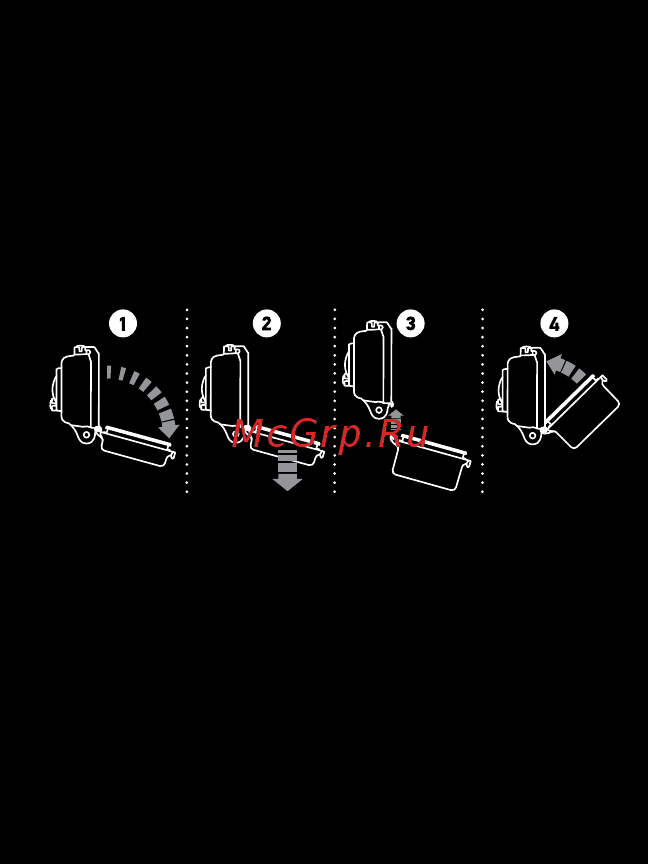

1. 0pen the backdoor of the housing so that it is

hanging downwards.

2. Pull downwards on the backdoor until it snaps

free from the hinge.

3. Line up replacement backdoor into the hinge opening.

4. Push upwards on the backdoor until it clicks

into place.
