Gopro LCD BacPac [4/12] Assembling your lcd screen to hd hero

asseMBlInG yoUr lCd sCreen to Hd Hero

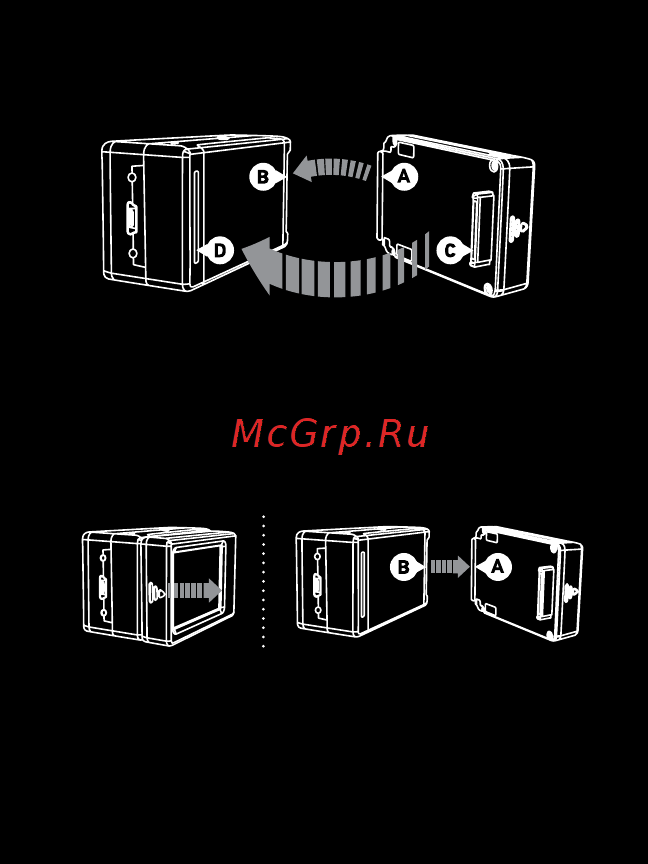

AttAChing LCD BACPAC to hD hERo

1. Slide hooked end of the BacPac (A) into the groove

on the right side of the camera body (B).

2. Push BacPac connector (C) into the HERO Bus port

(D) on the back of the camera.

REmoving LCD BACPAC fRom hD hERo

1. Pull back on le side of BacPac marked with the

arrow to disconnect from the HERO bus port.

2. Slide hooked end of BacPac (A) out of camera

groove (B).
