DC COMPONENTS P600K [2/3] Rating and characteristic curves thru 6a05 6a10 p600a p600m
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

DC COMPONENTS P600K [2/3] Rating and characteristic curves thru 6a05 6a10 p600a p600m

DC COMPONENTS P600M [2/3] Rating and characteristic curves thru 6a05 6a10 p600a p600m

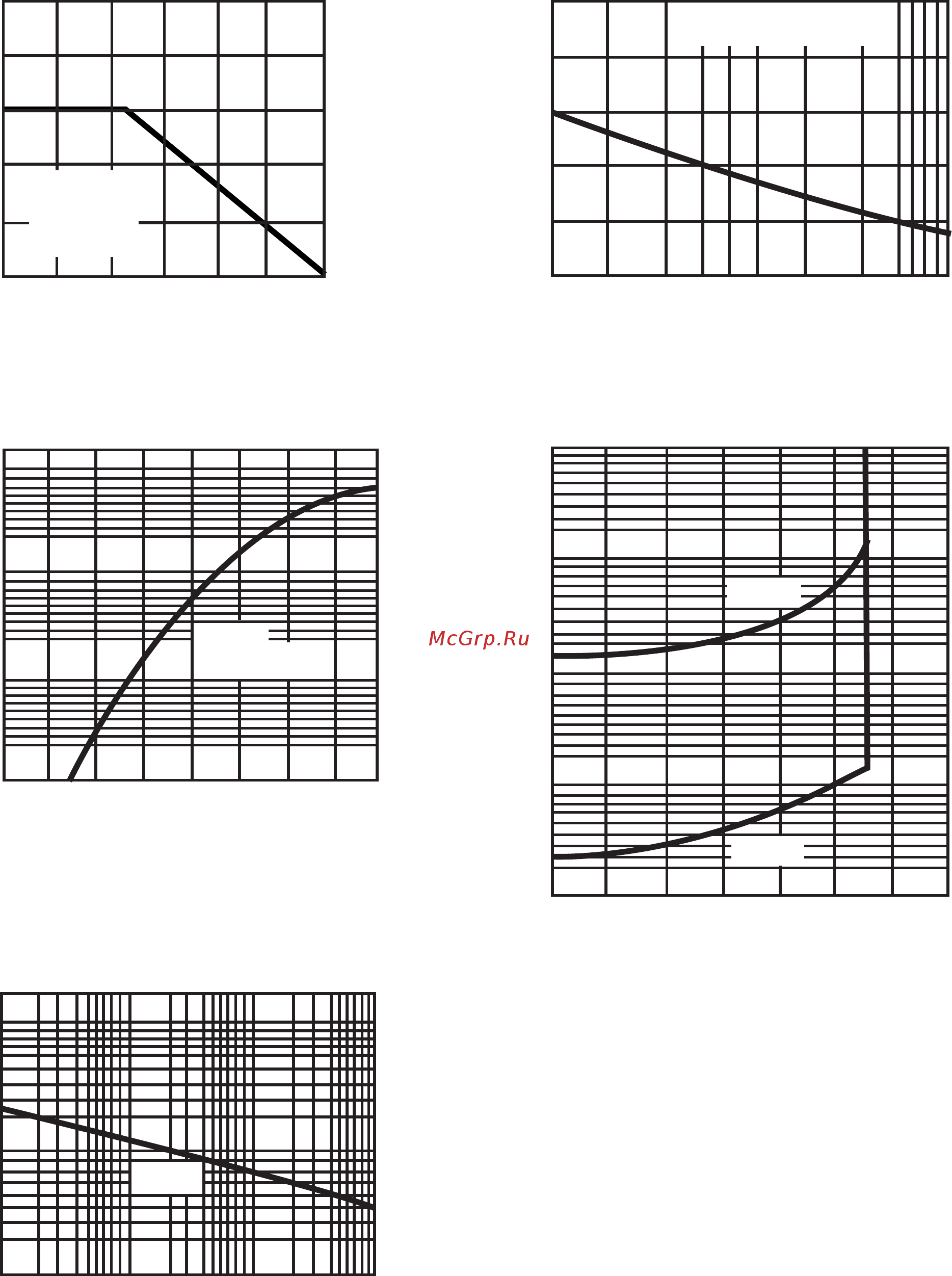

FIG. 4
TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT, (µA)
.1
10
100
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
0 20 40 60 80 120 140100
FIG. 1
TYPICAL FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT, (A)
0
2.0
4.0
6.0
8.0
10
AMBIENT TEMPERATURE, (
O
C)
0 25 50 75 100 125 150
FIG. 2
MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms Single Half Sine-Wave
(JEDEC Method)
PEAK FORWARD SURGE CURRENT, (A)
NUMBER OF CYCLES AT 60Hz
0
1 2 4 6 8 10 20 40 60 80 100
100
200
300
400
500
FIG. 3
TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT, (A)
TJ=25
O
C
Pulse Width=300µs
1% Duty Cycle
INSTANTANEOUS FORWARD VOLTAGE, (V)
0.4
100
1000
0.6 0.8 1.0 1.2 1.4 1.6 1.8
.01
TJ=100
O
C
TJ=25
O
C
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
2.0
10
1.0
1.0
FIG. 5
TYPICAL JUNCTION CAPACITANCE
JUNCTION CAPACITANCE, (pF)
10
100
REVERSE VOLTAGE, (V)
.1 .2 .4 1.0 2 4 10 20 40 100
1000
TJ=25
O
C
RATING AND CHARACTERISTIC CURVES ( THRU )
6A05 6A10
P600A P600M
REV-3,MAY,2017 www.dccomponents.com2
