RECTIFIER SPECIALISTS
R
DC COMPONENTS CO., LTD.

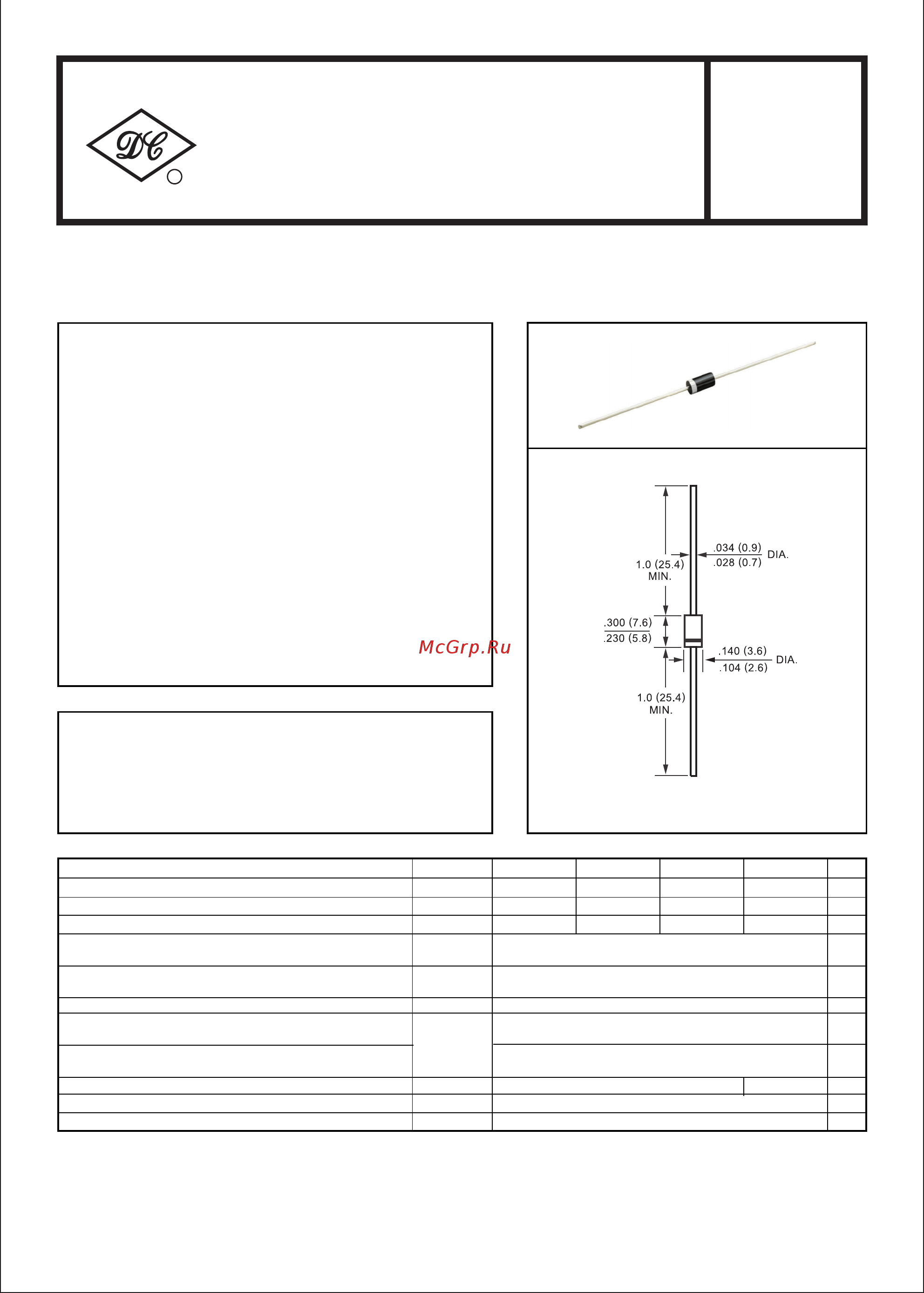

TECHNICAL SPECIFICATION
S OF
FAST RECOVERY RECTIFIER
VOLTAGE RANGE - 100 to 800 Volts
CURRENT - 2.0 Amperes
FEATURES
* Fast switching
* Low leakage
* Low forward voltage drop
* High current capability
* High current surge
* High reliability
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Mounting position: Any
* Weight: 0.38 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
BY296
THRU
BY299
DO-15
NOTES : 1. Test Conditions: IF = 0.5A, IR = 1.0A, IRR = 0.25A
2. Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
Dimensions in inches and (millimeters)
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
A
= 75
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
SYMBOL
V
RRM
V
DC
I
O
I
FSM
C
J
T
J
, T
STG
V
RMS
Volts
Volts
Volts
Amps2.0
70
40
-65 to + 150
Amps
pF
0
C
UNITS
150
at Rated DC Blocking Voltage T
A
= 25
o
C
Maximum Full Load Reverse Current Full Cycle Average,
.375*(9.5mm) lead length at T
L
= 55
o
C
Maximum Reverse Recovery Time (Note 1)
V
F
I
R
trr
1.3
5.0
100 uAmps
uAmps
nSec
Maximum DC Reverse Current
Maximum Instantaneous Forward Voltage at 2.0A DC Volts
BY296 BY297 BY298 BY299
100 200 400 800
100 200 400 800
70 140 280 560
500
