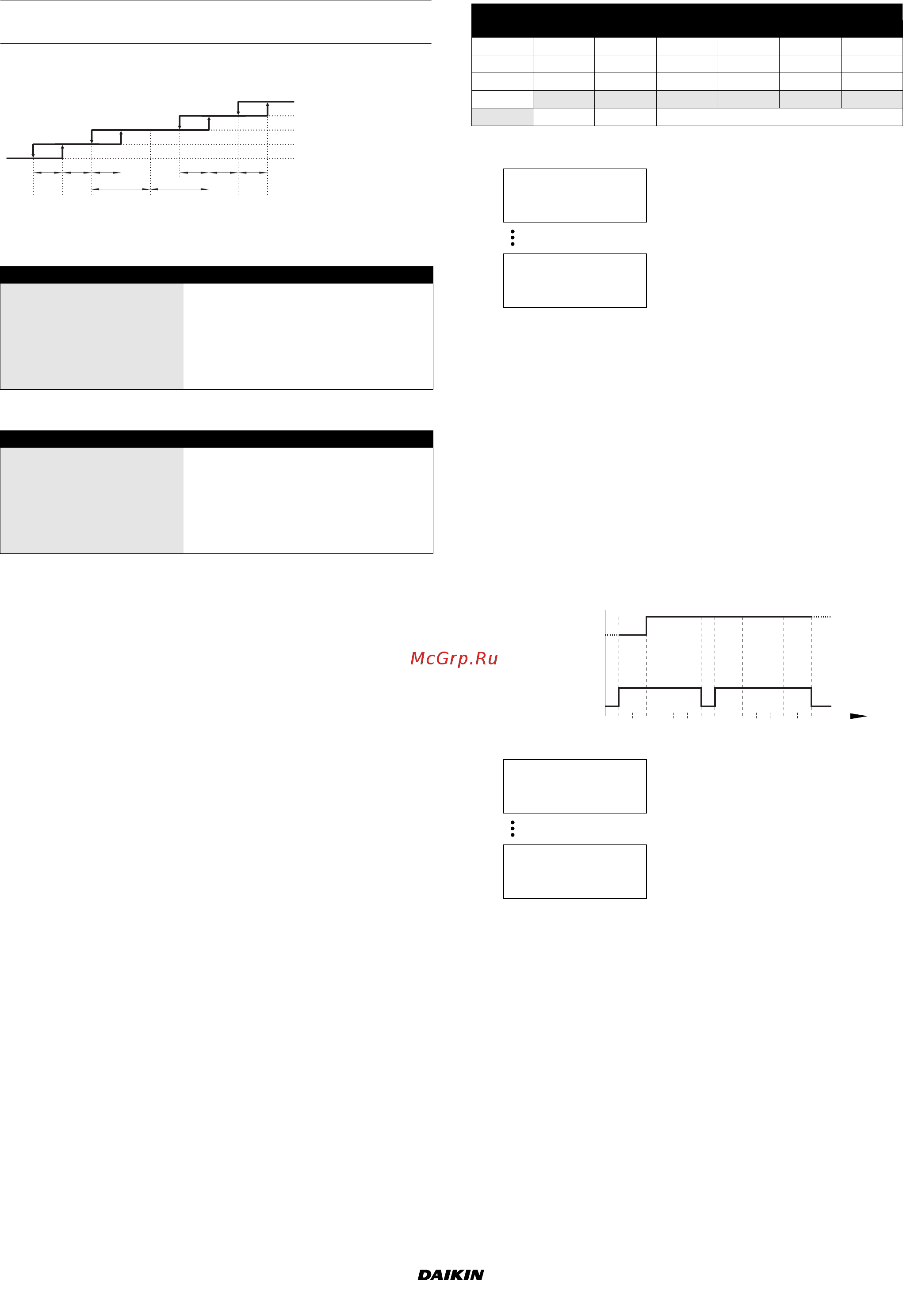

![Daikin EWAP160MBYN [19/22] Inlet water temperature control outlet water temperature control](/views2/1657062/page19/bg13.png)
EWAP110~340MBYNN
Packaged air-cooled water chillers
4PW22677-1B
Operation manual
18
ANNEX I
Thermostat parameters
Inlet water temperature control/Outlet water temperature
control
The figure below shows the thermostat diagram.
The default value and the upper and lower limits of the thermostat
parameters are listed in the table below.
■ If the temperature is below the setpoint, the thermostat control
will check every LOADDOWN TIMER.
According to the deviation to the setpoint, no action, slow load
down (=–3%) or fast load down (=–7%) is required.
■ If the temperature is above the setpoint, the thermostat control
will check every LOADUP TIMER.
According to the deviation to the setpoint, no action, slow load
up (=+3%) or fast load up (=+7%) is required.
ANNEX II
Schedule timer example
To come to the schedule above following settings have to be made:
All days assigned to the same group will work according to the
settings of this group.
In this example setting:
■ all Mondays, Tuesdays, Thursdays and Fridays will work
according to the settings in group 1 (
),
■ all Wednesdays will work according to the settings in group 2
(
),
■ all Saturdays and Sundays will work according to the settings in
group 3 (
"
),
■ all holiday days will work according to the settings in the holiday
group (
).
All group settings of groups
,
,
"
,
#
and
work similar as
following example (settings for group 1):
INLET CONTROL Default value Lower limit Upper limit
Step difference - a
(K)
0.8
(a)
(a) can only be modified in the service menu
––
Step difference - b
(K)
0.5
(a)
––
Steplength - c
(K)
0.2
(a)
––
Loadup timer
(sec)
48 12 300
Loaddown timer
(sec)
24 12 300
Setpoint
(°C)
12.0 7.0 23.0
OUTLET CONTROL Default value Lower limit Upper limit
Step difference - a
(K)
0.8
(a)
(a) can only be modified in the service menu
––
Step difference - b
(K)
0.5
(a)
––
Steplength - c
(K)
0.2
(a)
––
Loadup timer
(sec)
12 12 300
Loaddown timer
(sec)
12 12 300
Setpoint
(°C)
7.0 4.0 16.0
c b c c b c
a/2 a/2
Setpoint
Fast load up
Slow load up
No action
Slow load down
Fast load down
MARCH
MON TUE WED THU FRI SAT SUN
1 G1 2 G1 3 G2 4 G1 5 G1 6 G3 7 G3
8 G1 9 G1 10 G2 11 G1 12 G1 13 G3 14 G3
15 G1 16 G1 17 G2 18 G1 19 G1 20 G3 21 G3
22 G1
23 H 24 H 25 H 26 H 27 H 28 H
29 H 30 G1 31 G2
Screen 1
Screen 2
')
"
"
') % %"
%"%" +%"
%%%%% %%%%
%"%%%% %%%%
14.0°C
68 1213 15 18 20
12.0°C
Cooling inlet setpoint 1
On
Off
time (h)
') % %"
%$2%% &%
%$2%% %%&%
"%/2%% #&%
') %# %$
#2%% %%&%
."2%% %%&%
$%2%% %%&%
