DC COMPONENTS DL4150-DC Инструкция по эксплуатации онлайн
RECTIFIER SPECIALISTS
R
DC COMPONENTS CO., LTD.
TECHNICAL SPECIFICATIONS
OF
SURFACE MOUNT SWITCHING DIODES
VOLTAGE -
50 to
100 Volts
URRENT - 0.15 to 0.2 Ampere
DL4148
THRU
DL4448
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
FEATURES
MECHANICAL DATA
* Silicon epitaxial planar diodes
* Low power loss, high efficiency
* Low leakage
* Low forward voltage
* High speed switching
* High current capability
Dimensions in inches
and
(millimeters)
C ambient temperature unless otherwise specified.Ratings at 25
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
O
* Case: Glass sealed case
* T
erminals: Solder plated, solderable per
MIL-STD-750, Method 2026 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.05 grams Approx.

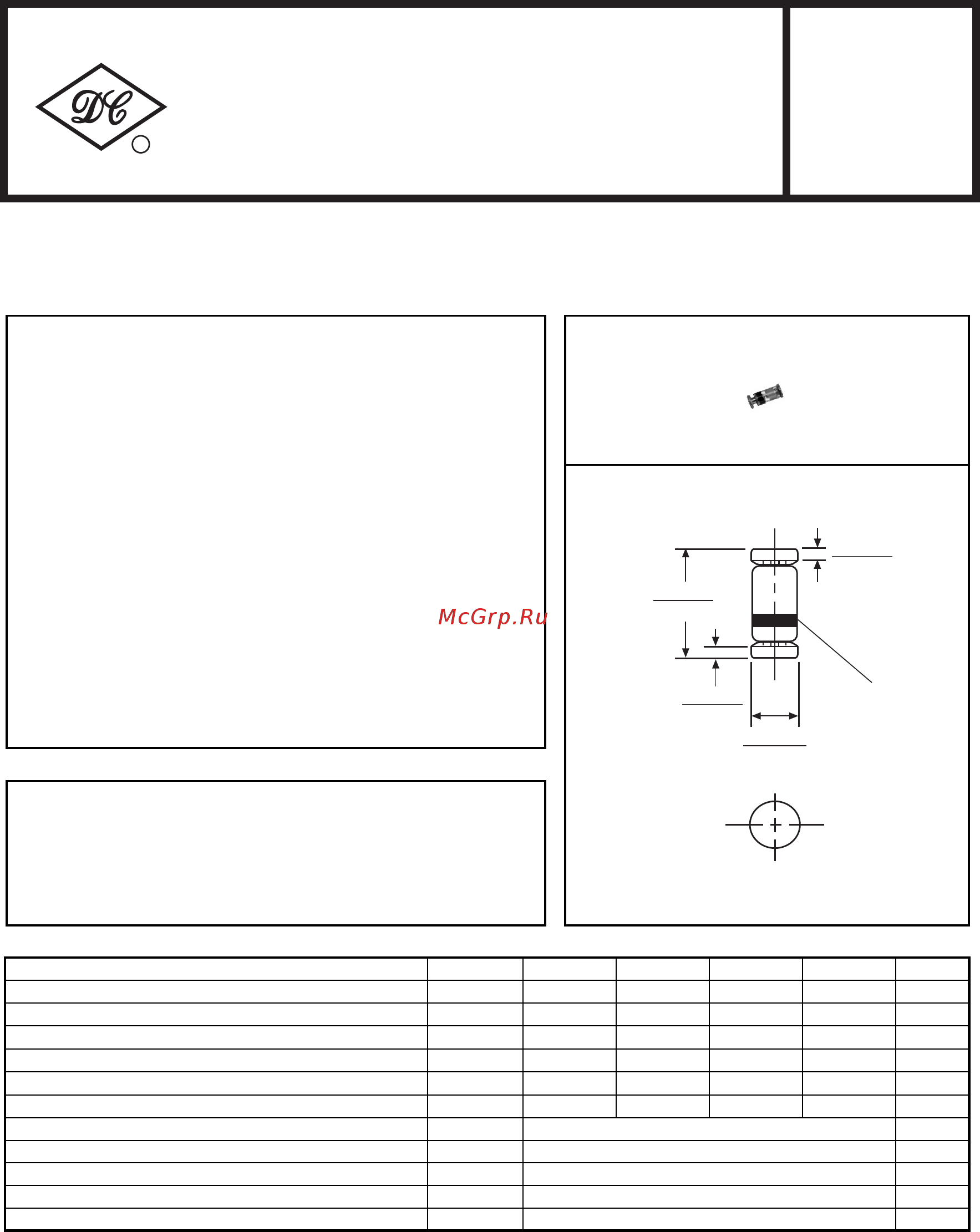

Mini Melf(DL-35)
.063(1.6)
.055(1.4)
.146(3.7)
.130(3.3)
.020(0.5)
.012(0.3)
CATHODE MARK
.020(0.5)
.012(0.3)
SYMBOL DL4148 DL4150 DL4151 DL4448 UNITS
100 50 75 100 V
150 200 150 150 mA
500 500 500 500 mW
1.0/10 1.0/200 1.0/50 1.0/100 V/mA
5000/75 100/50 50/50 5000/75 nA/V
4.0 4.0 2.0 4.0 nS
500 mA
2 A
300 mA
4.0 pF
-65 to +200
o
C
Maximum Recurrent Peak Reverse Voltage V
RRM
Maximum Average Forward Current IFAV
Maximum Power Dissipation Tamb=25
o
C
Ptot
Maximum Forward Voltage
VF/@IF
Maximum Reverse Current
Maximum Reverse Recovery Time trr
Typical Junction Capacitance C
J
Operating and Storage Temperature Range
TJ,TSTG
IR/@VR
Repetitive Peak Forward Current
Peak Forward Surge Current, tp = 1µS
Forward Continuous Current
I
FSM
I
FRM
I
F
REV-1,Apr/25/2013
Содержание
- Case glass sealed case terminals solder plated solderable per mil std 750 method 2026 guaranteed polarity color band denotes cathode end mounting position any weight 0 5 grams approx 1
- Dc components co ltd 1
- Dl4148 thru dl4448 1
- Maximum ratings and electrical characteristics 1
- Mini melf dl 35 1
- Rectifier specialists 1
- Silicon epitaxial planar diodes low power loss high efficiency low leakage low forward voltage high speed switching high current capability 1
- Technical specification 1
- Admissible power dissipation versus ambient temperaturs 2
- Admissible repetitive peak forward current versus pulse duration 2
- Dc components co ltd 2
- Dynamic forward resistance versus forward current 2
- Forward characteristics 2
- Rating and characteristic curves dl4148 thru dl4448 2
- Ref dl4148 2
- Relative capacitance versus reverse voltage 2
