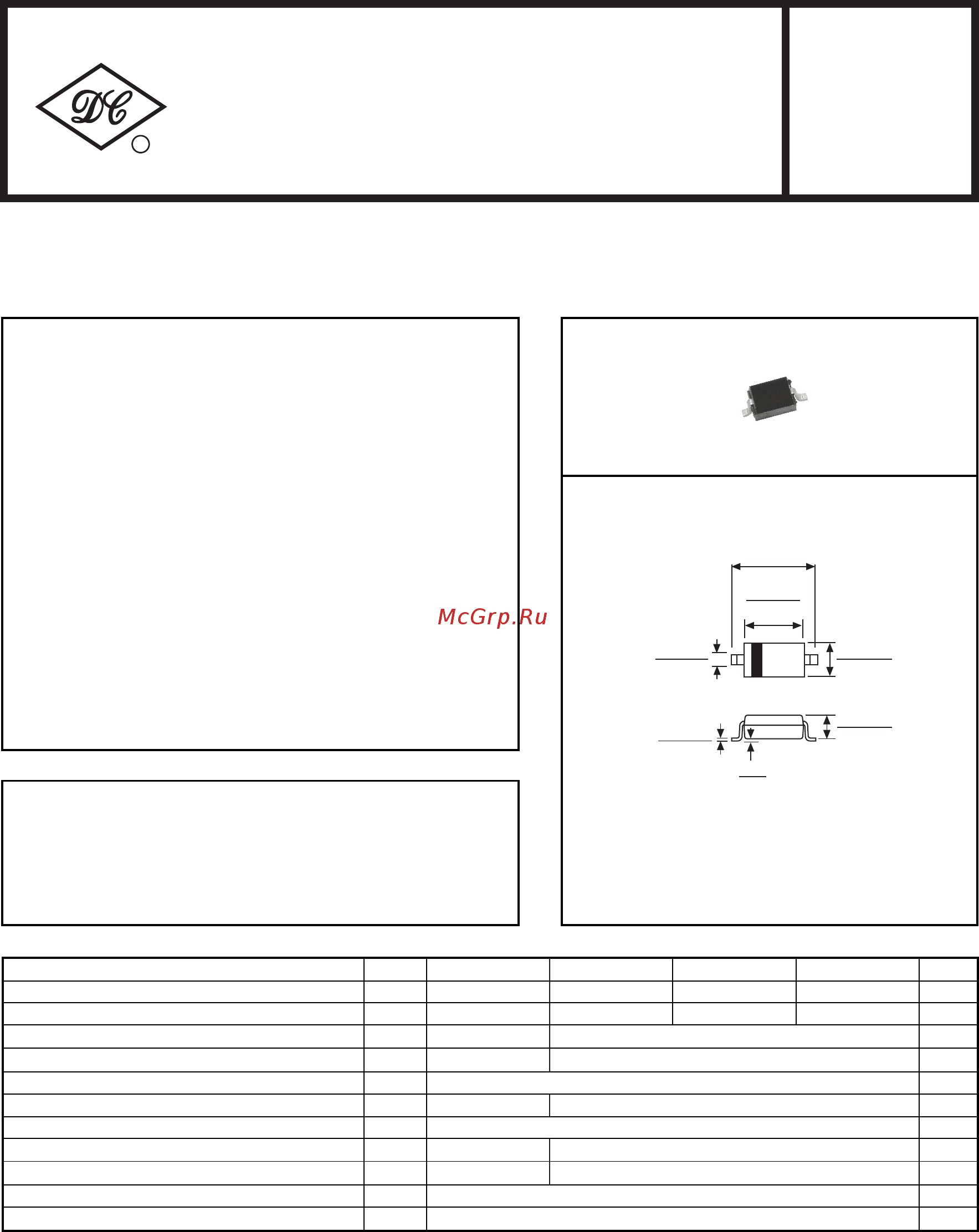

* Surface Mount Package Ideally Suited for Automatic

Insertion

* Low power loss, high efficiency

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

o

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

BAV16WS

Note: 1. Test Conditions: BAV16WS @ IF=IR=10mA, IRR=1mA, RL=50Ω ; BAV19WS~BAV21WS @ IF=IR=30mA, IRR=3mA, RL=100Ω

2. Measured at 1MHz and VR=0

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Terminals: Solder plated, solderable per

MIL-STD-202E, Method 208 guaranteed

Maximum Reverse Voltage VR 75 100 150 200 V

Maximum Recurrent Peak Reverse Voltage VRRM 100 120 200 250 V

Maximum Average Rectified Current Io 150 200 mA

Peak Forward Surge Current IFSM 2 2.5 A

Maximum Power Dissipation @TA=25

C Ptot 200 mW

Maximum Forward Voltage VF 0.855 (@IF=10mA) 1.0 @IF=100mA) V

Maximum Reverse Current (@VR=VR Max) IR 1.0 µA

Maximum Reverse Recovery Time(Note 1) trr 6.0 50 nS

Maximum Junction Capacitance(Note 2) CJ 2.0 5.0 pF

.055(1.4)

.043(1.1)

.016(0.4)

.008(0.2)

.047(1.2)

.031(0.8)

.008(0.2)

.004(0.1)

.004
