TECHNICAL SPECIFICATIONS
OF
SURFACE MOUNT ZENER DIODES
RECTIFIER SPECIALISTS
R
DC COMPONENTS CO., LTD.
FEATURES
* Voltage Range:2.4V to 51V
MECHANICAL DATA
* Case: Molded plastic
* Mounting position: Any
* Weight: 0.008 grams
* Ideally Suited for Automated Assembly Process
* Terminals:Solder plated, solderable per
MIL-STD-202E, Method 208 guaranteed
* Polarity: See Diagram

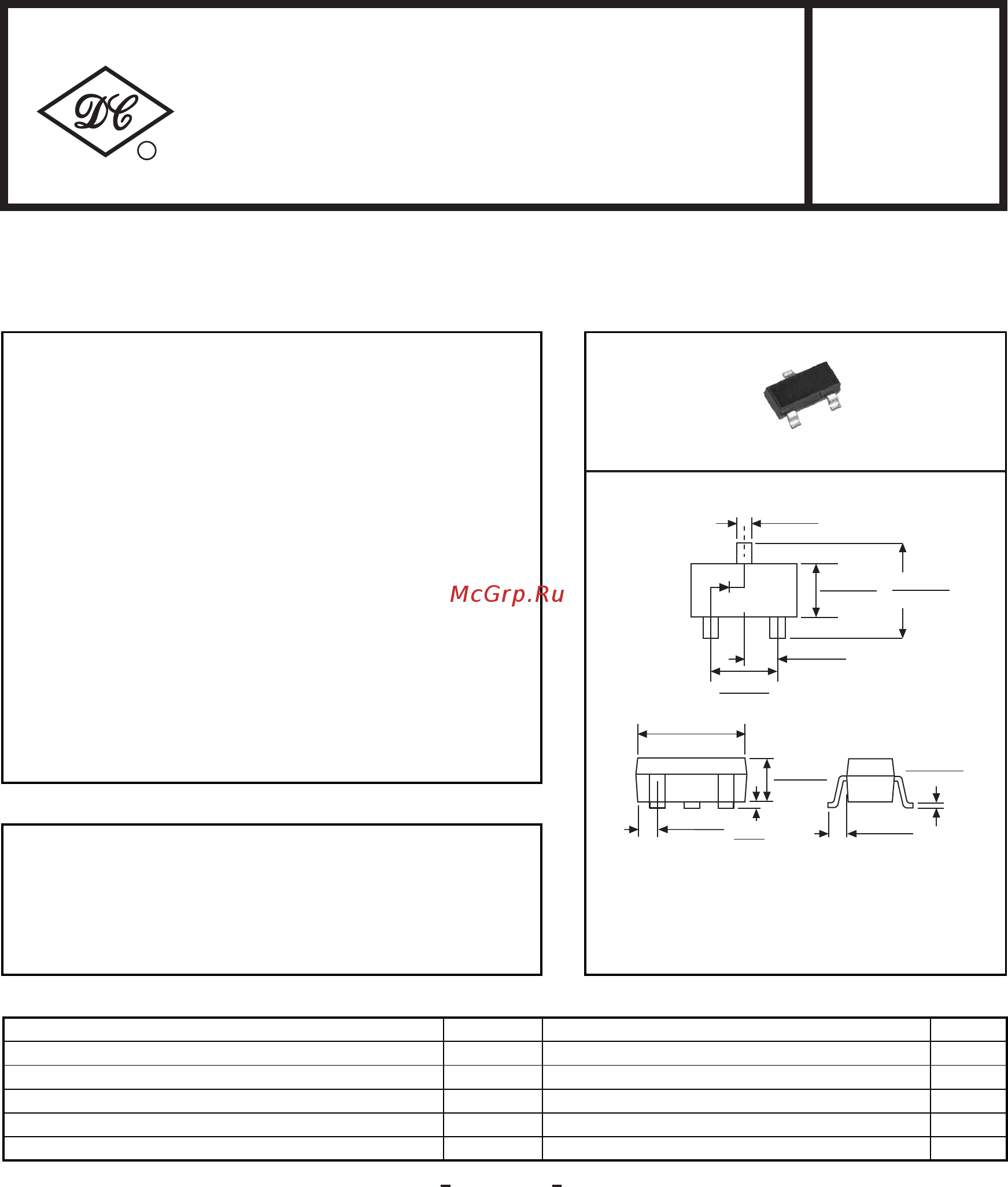

Dimensions in inches and (millimeters)
* 350mW Power Dissipation
SYMBOL VALUE UNITS
Zener Current see Table "Characteristics"
Maximum Power Dissipation @TA=25
o
C Ptot 350 mW
Maximum Forward Voltage @IF=10mA VF 0.9 Volts
Typical Thermal Resistance RθJA 357
o
C/W
Operating and Storage Temperature TJ,Tstg -55 to +150
o
C
Note: Suffix 1.”W” indicates “SOT-323” package. (e.g.: BZX84C2V4W,....,BZX84C51W)
2. Normal Tolerance ±5%
BZX84C2V4
THRU
BZX84C51
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
o
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
SOT-23
MAX.
.110(2.8)
.083(2.1)
.020(0.5)
.012(0.3)
.063(1.6)
.047(1.2)
.045(1.2)
.034(0.9)
.091(2.3)
.067(1.7)
.120(3.0)
.110(2.8)
.008(0.2)
.004(0.1)
.028(0.7)
.012(0.3)
.028(0.7)
.012(0.3)
.051(1.3)
.035(0.9)
.004
(0.1)
REV-3,MAR,2017 www.dccomponents.com
1
