Product Hardware Features

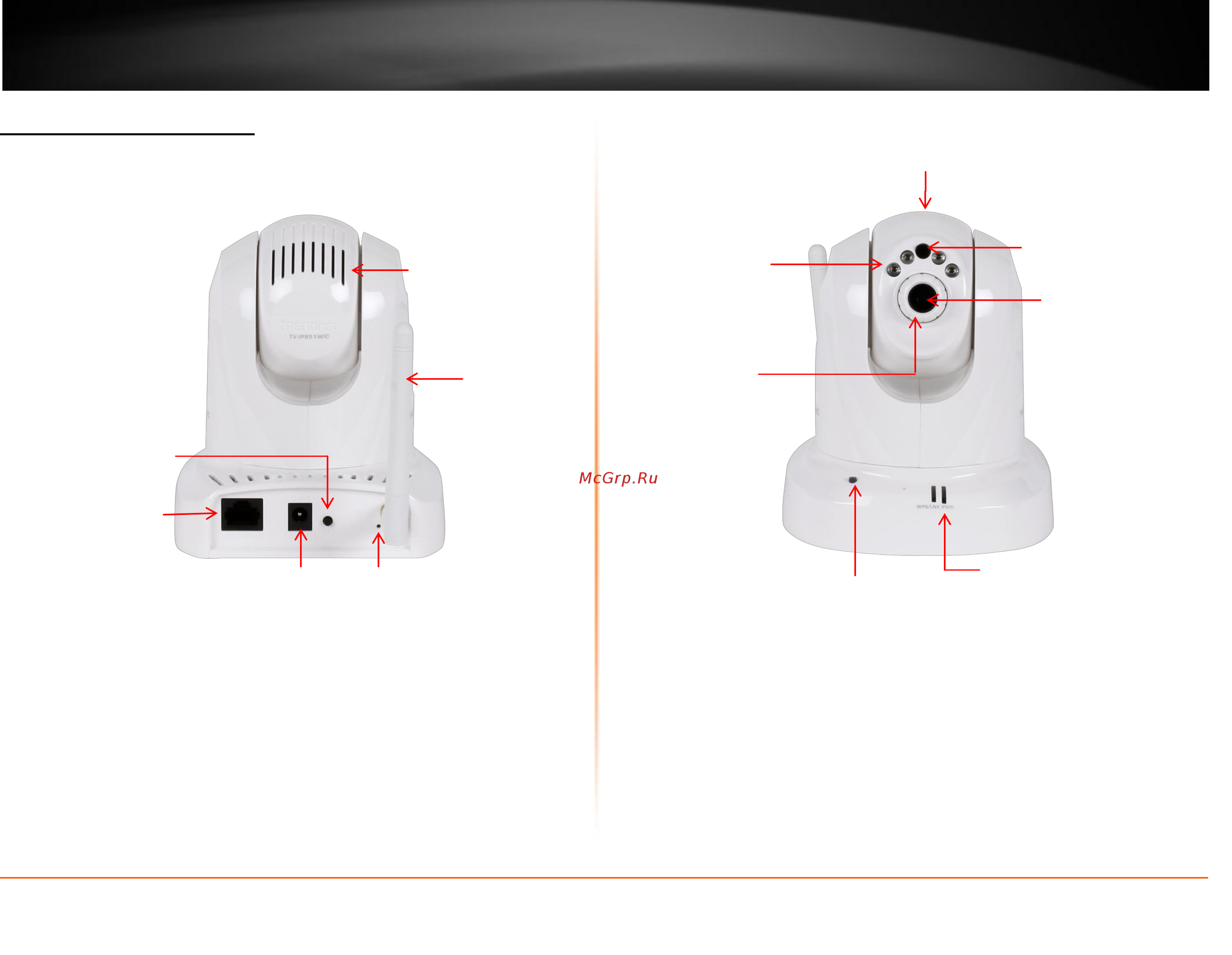

Rear Panel View

 LAN Port – Connect Ethernet cables to your wired network devices.

 Power Port – Connect the included power adapter from your camera to an

available power outlet.

Note: Use only the adapter that came with your camera.

 Reset Button – Use an item such as a paperclip to push and hold this button for

3 seconds and release to reset your camera to its factory defaults.

 WPS (Wi-Fi Protected Setup) – Push and hold this button for 3 seconds to

activate WPS. The button LED is blinking green when WPS is activated.

 Antenna – 2dBi detachable antenna

Front Panel View

 IR LED – Built-in 4 IR LED for night vision uses. (for TV-IP851WIC)

 Light Sensor – Detects the light source to turn IR on or off.

 Focus Ring – Turn to adjust the focus of the camera.

 Microphone – Built-in microphone for audio can be turn on or off.

 Privacy button – Press the privacy button to redirect the camera’s viewing

position to a downward and obscured view. To return the camera to the

previous viewing position, wait 5 seconds and then press the privacy button

again.

 Power - This LED indicator is solid blue when your camera is powered on.

Otherwise if this LED indicator is off, there is no power to your camera.

 Link – This LED indicator is blinking orange when there is connection/data to

your camera.

IR LED

Power port

LAN port

Light Sensor

Microphone

Camera Lens

Power/Link LED

Antenna

WPS button

Reset button

Privacy button

Focus Ring

Rear Air Vents
