UP Core Plus is a credit card-sized board with high performance and low power
consumption which features of the latest the Intel® Atom™ x5 / x7 / Celeron / Pentium
processor 64 bits up to 2.5 GHz.
The internal GPU is the latest Intel Gen 9 HD 500 with up to 18 Execution Units up to
650MHz to deliver extremely high 3D graphic performance.
UP Core Plus is equipped with 2GB/4GB/8GB DDR4L RAM at 2.400 MHz and
32GB/64GB/128 eMMC. On board there are are a wide variety of features amd I/O
including USB 3.0 Host + OTG, UART on USB header, WiFi, Bluetooth, DSI, MIPI-CSI, Display
Port 4K and more!
On the bottom of the board 2 x 100-pin high speed docking connectors provide the
freedom to users to design their carrier board. The pin definition of 100-pin connector
A is fully compatible with UP Core.
It’s UP to you to choose which operation system is best for your application. The CPU is
supported by Microsoft Windows 10 Professional and IoT Core and you can download
Linux Ubuntu, Linux Debian, Linux Yocto, Android 6.0 through our UP Community.
UP Core Plus is available at industrial temperature range which makes it perfect for
industrial application in harsh environment.

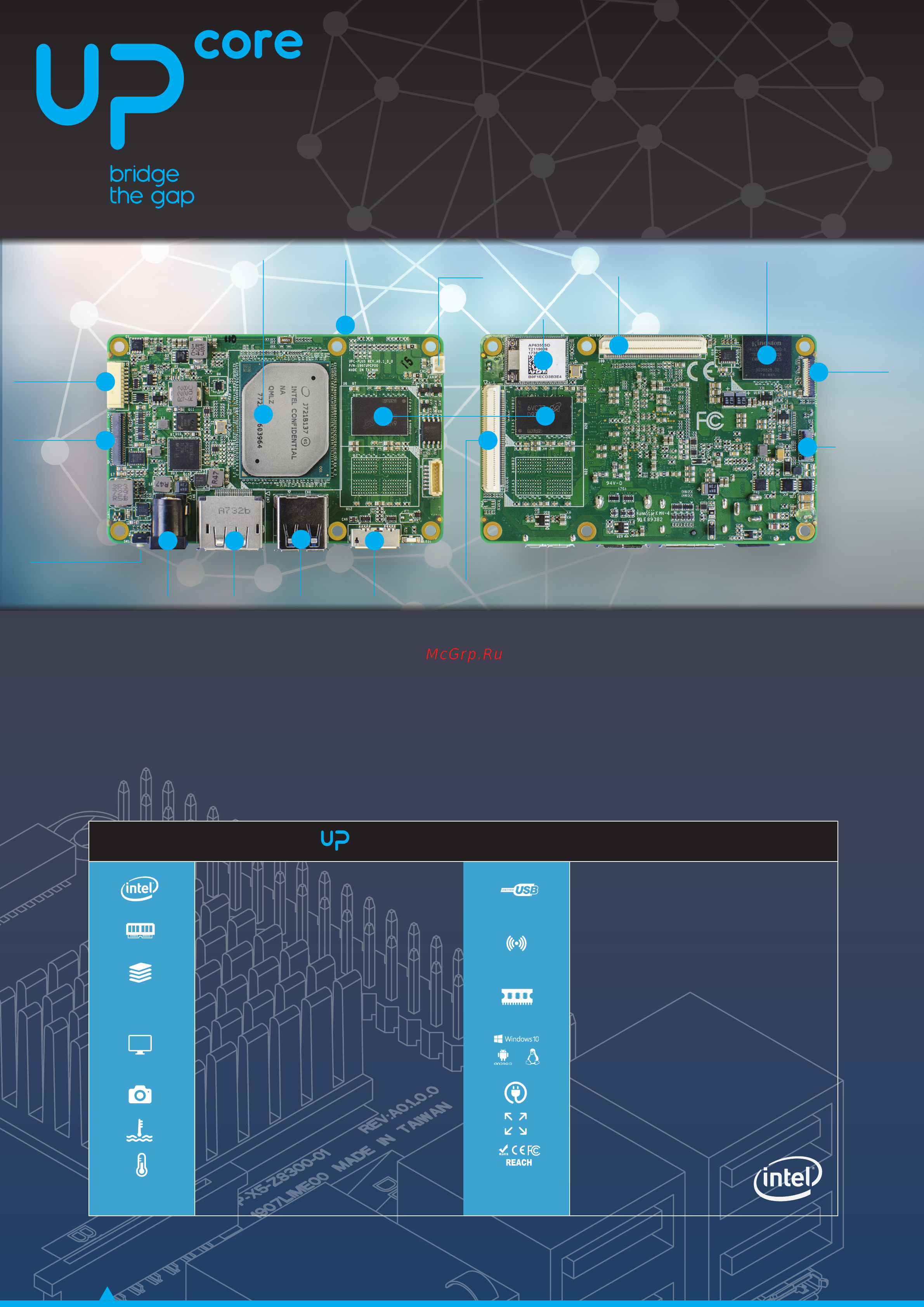

PLUS
1x DSI/eDP
Power button
DDR4-L
USB3.0 USB 3.0 OTG12V DC-in Power jack
1x MIPI-CSI
(2 lane)
Fan powerCPU
2x USB2.0
1x UART0
eMMC
1x MIPI-CSI
(4 lane)
Display Port
WiFi+ Bluetooth
RTC Battery
100-pin docking
connector A
100-pin docking
connector B
SOC
Intel® Atom™ x5-E3930 (2M Cache, up to 1.8 GHz)
Intel® Atom™ x5-E3940 (2M Cache, up to 1.8 GHz)
Intel® Atom™ x7-E3950 (2M Cache, up to 1.8 GHz)
Graphics
Intel® HD 500 Graphics / x5-3900 Series
Intel® HD 505 Graphics / x7-3900 Series
Memory
2GB / 4GB / 8GB onboard LPDDR4
Storage Capacity
32GB / 64 GB / 128 GB eMMC
Video & Audio
1x DP 4K 60Hz
1x Full eDP
Audio via DP and I2S (from Docking)
Camera interface
1x MIPI-CSI 2 lane
1x MIPI-CSI 4 lane
Operating humidity
10%〜80%RH non-condensing
Operating Tempature
32-140°F / 0~60°C
USB
1x USB 3.0 Host
1x USB 3.0 OTG
2x USB 2.0 pin header
WiFi / BT
WiFi 802.11 AC 2T2R
Bluetooth 4.2 (BLE)
Expansion
2x Docking Connector 100 pin including:
USB 2.0, USB 3.0, 6 PCI-E Lane, SATA, I2C, I2S, SPI,
PWM, LPC, SDIO, HSUART, ISH, GPIO
Compatible Operating system
Microsoft Windows 10 Professional, Microsoft
Windows 10, IoT Core, Linux (Ubuntu, Yocto),
Android 7.0
Power
12V DC-in @ 4A -6A 5.5/2.1mm jack
Dimensions
56 mm × 90 mm
Certificate
CE/FCC Class B, RED,
RoHS complaint, REACH
Core Plus - Specifications
