SEEED STUDIO SEEED-102110381 [2/10] Pwr_but
![SEEED STUDIO SEEED-102110381 [2/10] Pwr_but](/views2/1659542/page2/bg2.png)
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
USR2
PWR_BUT
USR3
uSD BOOT
RESET
USR1USR0
Layout Note:
Add Silkscreen:
S3: RESET
S1: POW ER
S2: BOOT
Add Silkscreen:
Layout Note:
LED4: USR0
LED5: USR1
LED6: USR2
LED7: USR3
LED1: 3V3
DC IN
12V
Add Silkscreen:
Layout Note:
J2:
Output Current: Max 3A
Output Current: Max 2A
Vout=Vfb*(1+R121/R122)
=0.6V*(1+240K/52.3K)
=0.6V*5.59
=3.35V
Vout=Vfb*(1+R40/R36)
=0.596V*(1+100K/13.3K)
=0.596V*8.52
=5.08V
3.3V
DC_VDD_5V
DCDC_VDD4_3P3V
SYS_VDD2_3P3V
SYS_VDD3_3P3V
DC_IN_12V
VDD_5V
SYS_VOUT_5V
VDD_USB_5V
VDD_5V
SYS_VDD1_3P3V
RESETn_BUT [3]
PW R_BUT [3,10]
USR0[4]
LCD_DATA2 [4,10]
USR1[4]
USR2[4]
USR3[4]
Title:
Size: Document Number: Rev:
Date: Sheet: ofDraw By:
https://www.seeedstudio.com

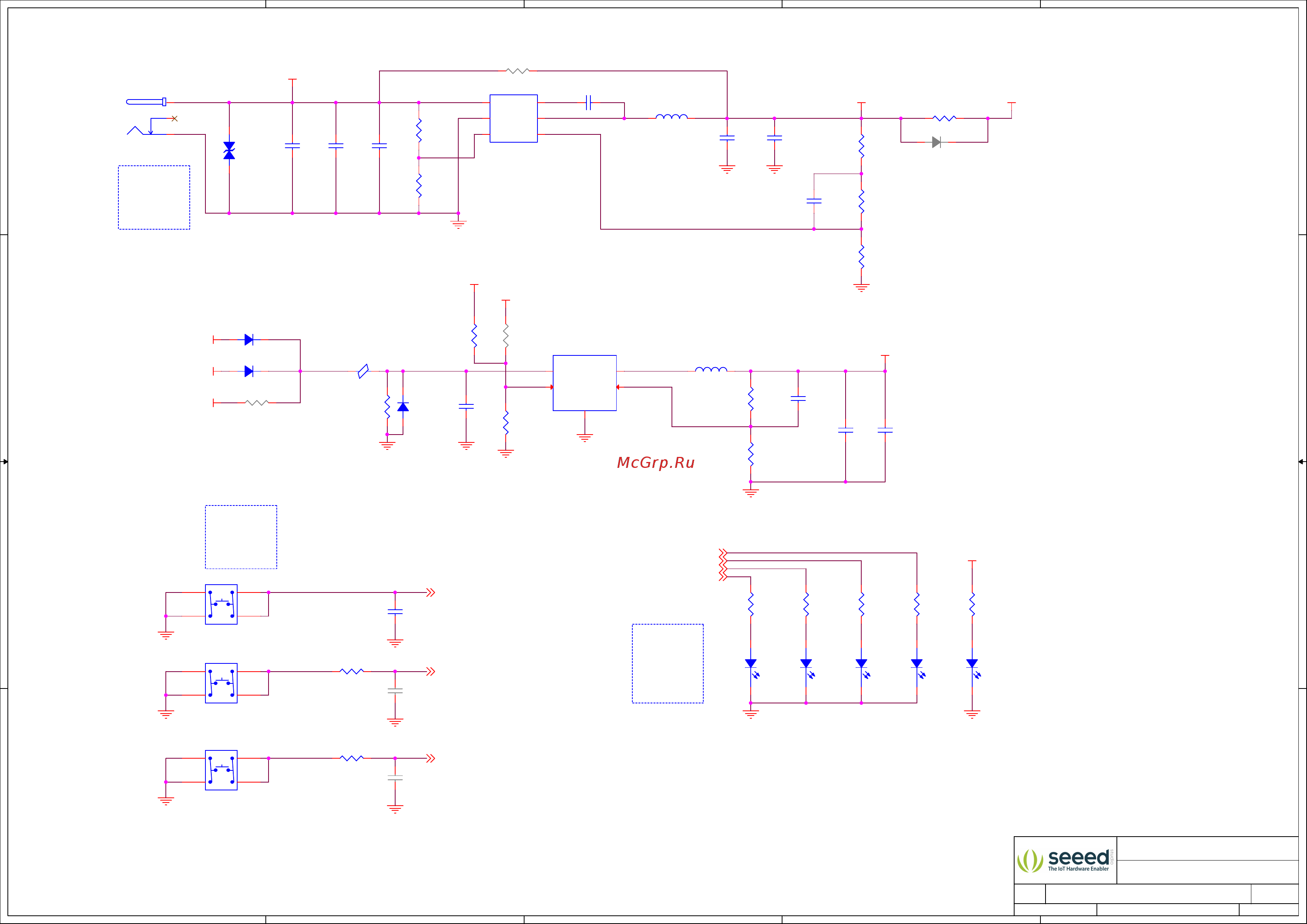

02 Power / LED / Button
v1.0
SeeedStudio BeagleBone Green Gateway
A3
2 10Tuesday, December 03, 2019XinJQ
Title:
Size: Document Number: Rev:
Date: Sheet: ofDraw By:
https://www.seeedstudio.com
02 Power / LED / Button
v1.0
SeeedStudio BeagleBone Green Gateway
A3
2 10Tuesday, December 03, 2019XinJQ
Title:
Size: Document Number: Rev:
Date: Sheet: ofDraw By:
https://www.seeedstudio.com
02 Power / LED / Button
v1.0
SeeedStudio BeagleBone Green Gateway
A3
2 10Tuesday, December 03, 2019XinJQ
TLV62569DBVT
U13
sot23-5
VIN
4
GND
2
EN
1
FB
5
SW
3
R97
1K
5%
R0402
C37
100nF
C0402
16V,X7R
S1
Tactile Switch
SW _4P
1 2
3 4
C3
4.7uF
C1206
50V,X5R
R38
100K
1%
R0402
R186
1M
1%
R0402
R100
10K
1%
R0402
DNP
C46
10uF
C0603
10V,X5R
C10
1uF
C0402
10V,X5R
DNP
R187
10K
1%
R0402
R39
105K
1%
R0402
C9
100nF
C0603
50V,X7R
R101
100K
1%
R0402
S2
Tactile Switch
SW _4P
1 2
3 4
R92
240K
1%
R0402
LED4
Blue
LED0603
2 1
R105
1K
5%
R0402
R1 100R
5%R0402
J2
DC-005
dc_jack_dc_005_14_2x11x9mm
1
1
3
3
2
2
R41
49.9R
1%
R0402
D11 MBRS240LT3
DO_214AA_SMB40V 2A
1 2
D9
MBRS240LT3DNP
1 2
C12
75pF
C0402
50V,NP0
C14 100nF
C0603 50V,X7R
C2
4.7uF
C1206
50V,X5R
LED5
Blue
LED0603
2 1
R37 100R
5%R0402
R109
1K
5%
R0402
D13
PMEG3010CEJ
SOD_323
1A
1 2
D1
SMBJ24CA
DO_214AA_SMB
24V
21
C38
6.8pF
C0402
50V,C0G
C90
2.2uF
C0402
6.3V,X5R
U2
TPS54302
sot23_6
GND
1
SW
2
VIN
3
FB
4
EN
5
BOOT
6
D12 MBRS240LT3
1 2
L2 10uH
L6_5X6_5 4.5A
CSAB0730-100M
R93
52.3K
1%
R0402
LED1
Green
LED0603
2 1
LED6
Blue
LED0603
2 1
R172 0R
5%R1206
DNP
R111
1K
5%
R0402
R34
13.3K
1%
R0402
C13
22uF
C1206
16V,X7R
C29
22uF
C1206
16V,X7R
FB13 120R
L0603 2A
L9 1uH
L4X4MM 2.45A
LQH44PN1R0NP0L
R40
511K
1%
R0402
LED7
Blue
LED0603
2 1
S3
Tactile Switch
SW _4P
1 2
3 4
C1
1uF
C0402
10V,X5R
DNP
R123 0R
5%R1206
DNP
C11
22uF
C1206
16V,X7R
R18
680R
1%
R0402
R168 0R
5%R1206
3V3_EN
3V3_SW
5V_SW
5V_FB
5V_EN
Power_BUT
SD_Boot
3V3_FB
5V_SEL 5V_IN
Содержание
- 12 03 seeedstudio beaglebone green gateway_v1 _sch_191203 second prototype release 1
- Change list 1
- Changed r128 am3_usb0_vbus from usb_5v to vdd_usb_5v 1
- Description 1
- Emmc flash 1
- Exp header usd debug 1
- Frist prototype 1
- Https www seeedstudio com 1
- M ethernet usb host 1
- Osd3358 pinout 1
- Osd3358 power system 1
- Page 02 added fb13 120r 100mhz r186 1m d13 r187 10k r100 dnp 10k page 03 added r185 dnp 4 k 1
- Page 04 added r188 r189 33r c94 dnp 10pf 1
- Page 06 added fb8 fb9 fb10 fb11 120r 100mhz l12 90r 100mhz r182 r183 dnp 0r page 09 added r184 0r d10 dnp pmeg3010cej 1
- Power led button 1
- Revision 1
- Revision history 1
- Seeedstudio beaglebone green gateway 1
- Seeedstudio beaglebone green gateway_v1 _sch_190603 1
- Seeedstudio beaglebone green gateway_v1 _sch_191203 1
- Sheet name 1
- Title revision history 1
- Usb device rtc grove 1
- Wi fi bluetooth 1 2 1
- Wi fi bluetooth 2 2 1
- Boot 6 2
- En 1 fb 5 2
- Fb 4 en 5 2
- Gnd 1 sw 2 2
- Https www seeedstudio com 2
- Pwr_but 2
- Usd boot 2
- Usr1 usr0 2
- A 2 y 4 3
- Agnd_adc a9 3
- Ain0 a8 3
- Ain1 b8 3
- Ain2 b6 3
- Ain3 c6 3
- Ain4 c7 3
- Ain5 c8 3
- Ain6 c9 3
- Ain7 d7 3
- Analog inputs 3
- Analog pwr gnd 3
- Cap_vdd_rtc d5 3
- Dgnd1 d8 3
- Dgnd10 e12 3
- Dgnd11 f5 3
- Dgnd12 f12 3
- Dgnd13 g5 3
- Dgnd14 g12 3
- Dgnd15 h4 3
- Dgnd16 h5 3
- Dgnd17 h12 3
- Dgnd18 h13 3
- Dgnd19 j4 3
- Dgnd2 d9 3
- Dgnd20 j5 3
- Dgnd21 j12 3
- Dgnd22 j13 3
- Dgnd23 k5 3
- Dgnd24 k12 3
- Dgnd25 l5 3
- Dgnd26 l12 3
- Dgnd27 m5 3
- Dgnd28 m6 3
- Dgnd29 m7 3
- Dgnd3 e5 3
- Dgnd30 m8 3
- Dgnd31 m9 3
- Dgnd32 m10 3
- Dgnd33 m11 3
- Dgnd34 m12 3
- Dgnd35 n8 3
- Dgnd36 n9 3
- Dgnd4 e6 3
- Dgnd5 e7 3
- Dgnd6 e8 3
- Dgnd7 e9 3
- Dgnd8 e10 3
- Dgnd9 e11 3
- Do not connect 3
- Eeprom_wp m2 3
- Emu0 e2 3
- Emu1 e3 3
- Ext_wakeup m4 3
- Extintn d4 3
- Gnd 3 vcc 5 3
- Https www seeedstudio com 3
- I2c0_scl c10 3
- I2c0_sda c11 3
- Nc1 d12 3
- Nc2 j6 3
- Nc3 k4 3
- Osc0_gnd n15 3
- Osc0_in p16 sys_adc_1p8v a7 3
- Osc0_out n16 3
- Osc1_gnd b5 3
- Osc1_in a6 3
- Osc1_out a5 3
- Pmic_bat_sense n7 3
- Pmic_ldo_pgood n4 3
- Pmic_mux_in n13 3
- Pmic_mux_out d6 3
- Pmic_nint e4 3
- Pmic_nreset m13 3
- Pmic_nwakeup l4 3
- Pmic_pb_in t11 3
- Pmic_pgood n12 3
- Pmic_power_en n10 3
- Pmic_pwr_en n11 3
- Pmic_scl d10 3
- Pmic_sda d11 3
- Pmic_ts n6 3
- Pwronrstn p11 3
- Reset 2 3
- Rtc xtal 3
- Rtc_kaldo_enn m16 3
- Rtc_pwronrstn n5 3
- Sys_rtc_1p8v1 k11 3
- Sys_rtc_1p8v2 l11 3
- Sys_vdd1_3p3v1 f6 3
- Sys_vdd1_3p3v2 f7 3
- Sys_vdd1_3p3v3 g6 3
- Sys_vdd1_3p3v4 g7 3
- Sys_vdd2_3p3v1 f11 3
- Sys_vdd2_3p3v2 g11 3
- Sys_vdd3_3p3v1 f8 3
- Sys_vdd3_3p3v2 g8 3
- Sys_vdd3_3p3v3 h7 3
- Sys_vdd3_3p3v4 h8 3
- Sys_vdd3_3p3v5 j7 3
- Sys_vdd3_3p3v6 j8 3
- Sys_vdd3_3p3v7 k8 3
- Sys_vdd3_3p3v8 l8 3
- Sys_vdd_1p8v1 f10 3
- Sys_vdd_1p8v2 g10 3
- Sys_vdd_1p8v3 h10 3
- Sys_vdd_1p8v4 h11 3
- Sys_vdd_1p8v5 j10 3
- Sys_vdd_1p8v6 j11 3
- Sys_vdd_1p8v7 k10 3
- Sys_vdd_1p8v8 l10 3
- Sys_vout1 k6 3
- Sys_vout2 k7 3
- Sys_vout3 l6 3
- Sys_vout4 l7 3
- Tck d1 3
- Tdi c1 3
- Tdo c2 3
- Tms d2 3
- Trstn d3 3
- Usb0_ce k13 3
- Usb0_dm k16 3
- Usb0_dp k15 3
- Usb0_drvvbus j15 3
- Usb0_id k14 3
- Usb0_vbus j16 3
- Usb1_ce l13 3
- Usb1_dm l16 3
- Usb1_dp l15 3
- Usb1_drvvbus m14 3
- Usb1_id l14 3
- Usb1_vbus m15 3
- Vdd_core g4 3
- Vdd_mpu f13 3
- Vdds_ddr f4 3
- Vdds_pll g13 3
- Vddshv1 j9 3
- Vddshv2 k9 3
- Vddshv3 l9 3
- Vddshv4 f9 3
- Vddshv5 g9 3
- Vddshv6 h9 3
- Vin_ac1 p10 3
- Vin_ac2 r10 3
- Vin_ac3 t10 3
- Vin_bat1 p8 3
- Vin_bat2 r8 3
- Vin_bat3 t8 3
- Vin_usb1 p9 3
- Vin_usb2 r9 3
- Vin_usb3 t9 3
- Vpp h6 3
- Vrefn b9 3
- Vrefp b7 3
- Warmrstn r11 3
- Boot configuration 4
- Https www seeedstudio com 4
- Sys_boot0 4
- Sys_boot1 4
- Sys_boot10 4
- Sys_boot11 4
- Sys_boot12 4
- Sys_boot13 4
- Sys_boot14 4
- Sys_boot15 4
- Sys_boot2 4
- Sys_boot3 4
- Sys_boot4 4
- Sys_boot5 4
- Sys_boot6 4
- Sys_boot7 4
- Sys_boot8 4
- Sys_boot9 4
- Https www seeedstudio com 5
- Clocks 6
- Downstream 6
- Eeprom 6
- Ethernet 6
- Gpio misc 6
- Https www seeedstudio com 6
- Lan9512 4 i 6
- Upstream 6
- Usb host 6
- Usb_b_lower usb_a_upper 6
- A1 1 b1 20 7
- B7 13 a6 7 7
- Gnd 11 7
- Gpad 21 7
- Https www seeedstudio com 7
- Seeedstudio beaglebone green gateway 7
- Shdn 3 fb 4 7
- Vcca 2 vccb 19 7
- Vdd_1v8_wifi 7
- Vdd_1v8_wifi vdd_3v3_wifi 7
- Vdd_3v3_wifi 7
- Vdd_3v3_wifi vdd_1v8_wifi 7
- Bt_aud_clk 60 8
- Bt_aud_fsync 58 8
- Bt_aud_in 56 8
- Bt_aud_out 57 8
- Bt_en_soc 41 8
- Bt_hci_cts 51 8
- Bt_hci_rts 50 8
- Bt_hci_rx 53 8
- Bt_hci_tx 52 8
- Bt_uart_dbg 43 8
- En 1 gnd 2 8
- Ext_32k 36 8
- Feed 1 8
- G4_ant1_wb 32 8
- G4_ant2_w 18 8
- Gnd 15 8
- Gnd 16 8
- Gnd 17 8
- Gnd 19 reserved3 62 8
- Gnd 20 8
- Gnd 23 8
- Gnd 24 8
- Gnd 28 8
- Gnd 29 8
- Gnd 30 8
- Gnd 31 8
- Gnd 33 8
- Gnd 34 8
- Gnd 35 8
- Gnd 37 8
- Gnd 39 8
- Gnd 44 8
- Gnd 45 8
- Gnd 48 8
- Gnd 49 8
- Gnd 54 8
- Gnd 55 8
- Gnd 59 8
- Gnd 61 8
- Gnd 63 8
- Gnd 64 8
- Gnd g1 8
- Gnd g10 8
- Gnd g11 8
- Gnd g12 8
- Gnd g13 8
- Gnd g14 8
- Gnd g15 8
- Gnd g16 8
- Gnd g17 8
- Gnd g18 8
- Gnd g19 8
- Gnd g2 8
- Gnd g20 8
- Gnd g21 8
- Gnd g22 8
- Gnd g23 8
- Gnd g24 8
- Gnd g25 8
- Gnd g26 8
- Gnd g27 8
- Gnd g28 8
- Gnd g29 8
- Gnd g3 8
- Gnd g30 8
- Gnd g31 8
- Gnd g32 8
- Gnd g33 8
- Gnd g34 8
- Gnd g35 8
- Gnd g36 8
- Gnd g4 8
- Gnd g5 8
- Gnd g6 8
- Gnd g7 8
- Gnd g8 8
- Gnd g9 8
- Gpio10 4 8
- Gpio11 2 8
- Gpio12 5 8
- Gpio9 3 8
- Gpio_1 27 8
- Gpio_2 26 8
- Gpio_4 25 8
- Https www seeedstudio com 8
- Reserved1 21 8
- Reserved2 22 8
- Seeedstudio beaglebone green gateway 8
- Vbat 46 8
- Vbat 47 8
- Vdd_1v8_wifi 8
- Vdd_3v3_wifi vdd_1v8_wifi 8
- Vdd_3v3_wifi vdd_3v3_wifi 8
- Vio 38 8
- Wl_sdio_clk 8 8
- Wl_sdio_cmd 6 8
- Wl_sdio_d0 10 8
- Wl_sdio_d1 11 8
- Wl_sdio_d2 12 8
- Wl_sdio_d3 13 8
- Wl_uart_dbg 42 8
- Wlan_en_soc 40 8
- Wlan_irq 14 8
- Ft out 9
- Grove connector 9
- Https www seeedstudio com 9
- Iic ext rtc 9
- Seeedstudio beaglebone green gateway 9
- Usb device 9
- Vbus 6 9
- X1 2 x2 3 vbackup 4 gnd 5 sda 9
- Caution used on board 10
- Expansion header p8 expansion header p9 10
- Https www seeedstudio com 10
- Microsd 10
- Microsd card 10
Похожие устройства
- SEEED STUDIO SEEED-102110319 Инструкция по эксплуатации
- SEEED STUDIO SEEED-102110399 Инструкция по эксплуатации
- SEEED STUDIO ODYSSEY - X86J4105800 8GB RAM Инструкция по эксплуатации
- SEEED STUDIO SEEED-102110398 Инструкция по эксплуатации
- SEEED STUDIO ODYSSEY -X86J4105864 8GB/64GB ENTERPRISE Инструкция по эксплуатации
- SEEED STUDIO SEEED-102110397 Инструкция по эксплуатации
- SINOVOIP ODYSSEY - X86J4105864 8GB RAM 64GB EMMC Инструкция по эксплуатации
- SINOVOIP BANANA-PI Инструкция по эксплуатации
- SINOVOIP BANANA-PI-M1+ Инструкция по эксплуатации
- SINOVOIP BANANA-PI-M3 Инструкция по эксплуатации
- SINOVOIP BANANA-PI-M4 Инструкция по эксплуатации
- SOMLABS RT52528C0R4Q0SFI Инструкция по эксплуатации
- Aquaverso ES 35 Инструкция
- SOMLABS RT52528C32R16Q0SFI Инструкция по эксплуатации
- SOMLABS RT62528C0R4Q0SFI Инструкция по эксплуатации
- SOMLABS RT62528C32R16Q0SFI Инструкция по эксплуатации
- Aquaverso ER 55 Инструкция
- SOMLABS Y2792C256R256N0SF Инструкция по эксплуатации
- SOMLABS Y2792C256R256N1WB Инструкция по эксплуатации
- Aquaverso ER 85 Инструкция
