Overhaul Instructions Si50-402
22 Semi-Hermetic Single Screw Compressor Version IV
2. Separating control motor from drive shaft
As shown in figure left, loosen the hexagon socket head setscrews (in two places) on the
side plate of the control motor. Since the thread lock compound "Loctite" is applied to the
threaded part, screw tightening force becomes stronger. Therefore, use POWER BIT to
loosen the setscrews.
3. Disassembling control motor and insulation material
Remove the fixing bolts from the main unit of the control motor, and then pull out the main
unit and insulation material.

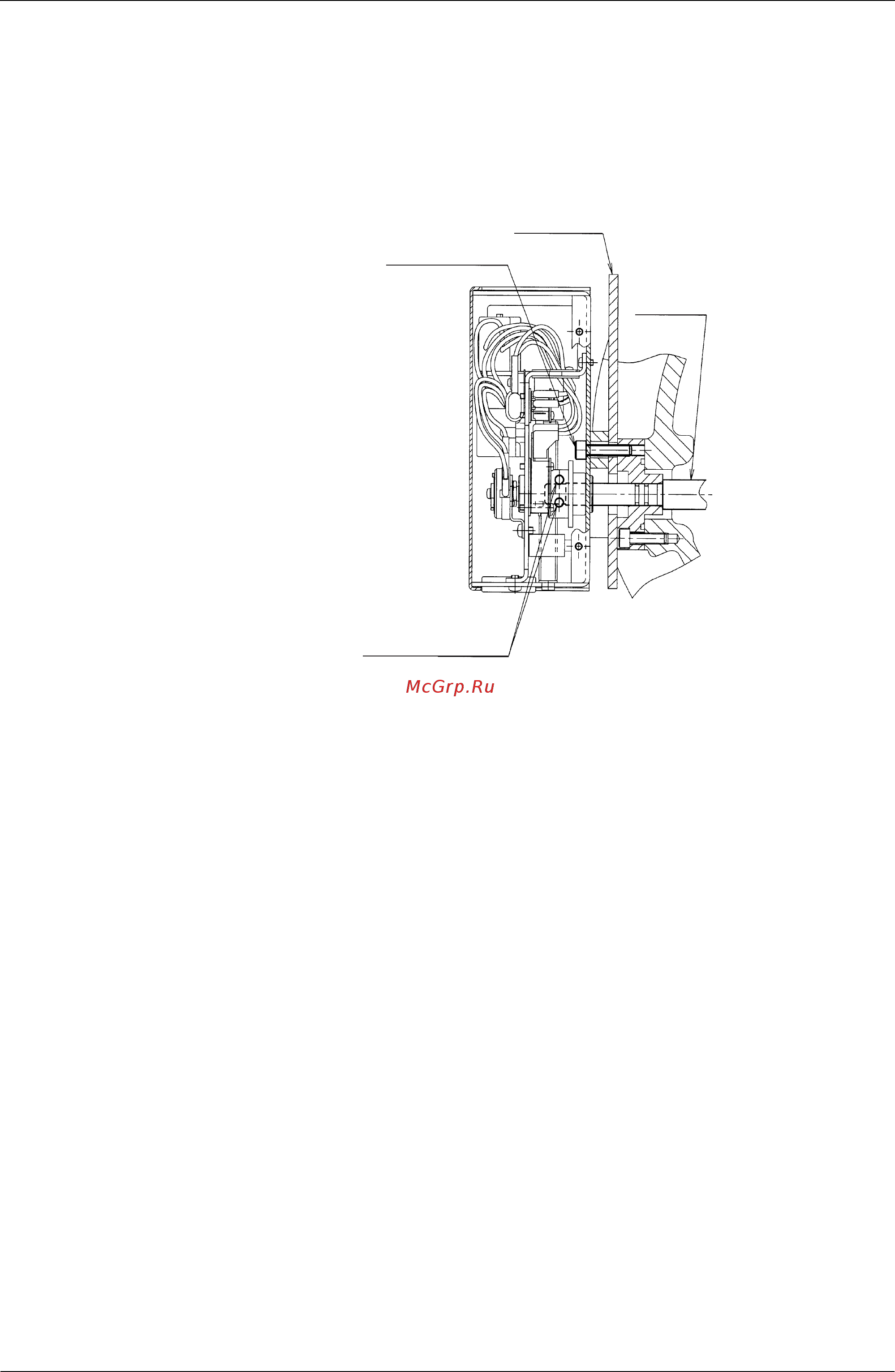

Fig. 4-21 Section view of control motor
Insulation board
Drive shaft
Hexagon socket head
setscrew (M5×2 numbers)
Hexagon socket head
bolt (M6×3 numbers)
