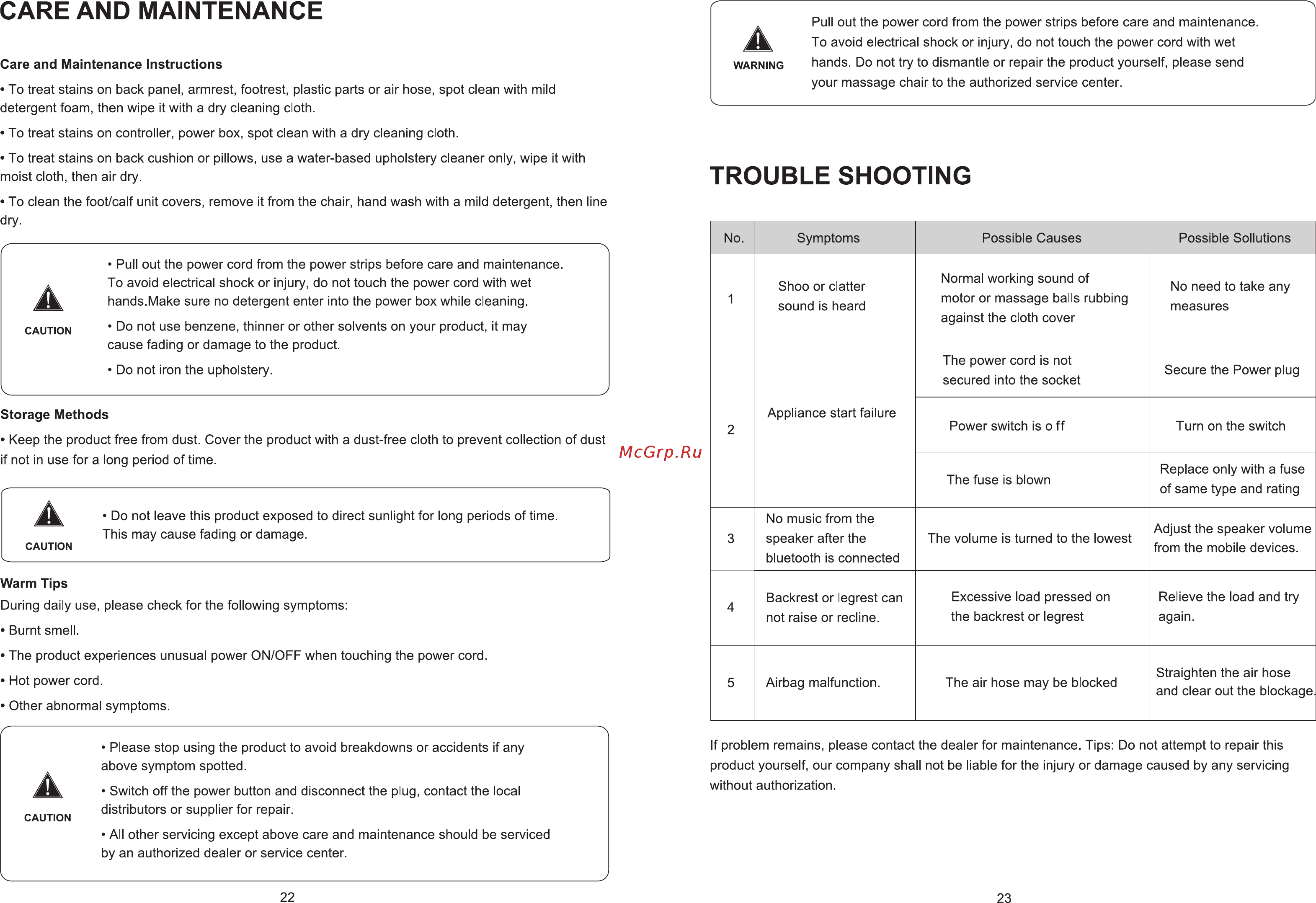

CARE AND MAINTENANCE Care and Maintenance Instructions WARNING To treat stains on back panel armrest footrest plastic parts or air hose spot clean with mild detergent foam then wipe it with a dry cleaning cloth Pull out the power cord from the power strips before care and maintenance To avoid electrical shock or injury do not touch the power cord with wet hands Do not try to dismantle or repair the product yourself please send your massage chair to the authorized service center To treat stains on controller power box spot clean with a dry cleaning cloth To treat stains on back cushion or pillows use a water based upholstery cleaner only wipe it with moist cloth then air dry TROUBLE SHOOTING To clean the foot calf unit covers remove it from the chair hand wash with a mild detergent then line dry A Pull out the power cord from the power strips before care and maintenance To avoid electrical shock or injury do not touch the power cord with wet hands Make sure no detergent enter into the power box while cleaning CAUTION No 1 Symptoms Shoo or clatter sound is heard Do not use benzene thinner or other solvents on your product it may cause fading or damage to the product Possible Causes Normal working sound of motor or massage balls rubbing against the cloth cover The power cord is not secured into the socket Do not iron the upholstery I________________________________________________ Possible Sollutions No need to take any measures Secure the Power plug Appliance start failure Storage Methods Keep the product free from dust Cover the product with a dust free cloth to prevent collection of dust if not in use for a long period of time Power switch is o ff 2 The fuse is blown Do not leave this product exposed to direct sunlight for long periods of time This may cause fading or damage CAUTION Turn on the switch Replace only with a fuse of same type and rating 3 No music from the speaker after the bluetooth is connected The volume is turned to the lowest Adjust the speaker volume from the mobile devices 4 Backrest or legrest can not raise or recline Excessive load pressed on the backrest or legrest Relieve the load and try again 5 Airbag malfunction Warm Tips During daily use please check for the following symptoms Burnt smell The product experiences unusual power ON OFF when touching the power cord Hot power cord The air hose may be blocked Straighten the air hose and clear out the blockage Other abnormal symptoms z Please stop using the product to avoid breakdowns or accidents if any above symptom spotted CAUTION Switch off the power button and disconnect the plug contact the local distributors or supplier for repair If problem remains please contact the dealer for maintenance Tips Do not attempt to repair this product yourself our company shall not be liable for the injury or damage caused by any servicing without authorization All other servicing except above care and maintenance should be serviced by an authorized dealer or service center 22 23
