Specifications
Technical features
Description
Drive Units
Frequency range
Frequency response
Max Power Output
Rated Power Consumption at
1/8th of rated power
Standby Power Consumption
Inputs
Input Impedance
Signal to Noise Ratio
Dimensions Height:
Width:
Depth:
Weight
Finishes Cabinet:
Grille:
DB4S
1000W Class D Hypex
amplifier
Aerofoil bass cone
Digital preamplifier with
Dynamic EQ
App-based set-up and BT-LE
control
Active closed-box subwoofer
system
1x ø250mm (10in) Aerofoil
cone bass
-6dB at 8.5Hz and 500Hz
10Hz – 350Hz -3dB (centred
on level at 100Hz)
1000W
195W
<0.5W
2 x RCA
2 x XLR
RCA: 10 kOhm
XLR: 20 kOhm
82dB
377mm (14.8 in) including feet
360mm (14.1 in)
368mm (14.5 in)
26kg (57.3 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)

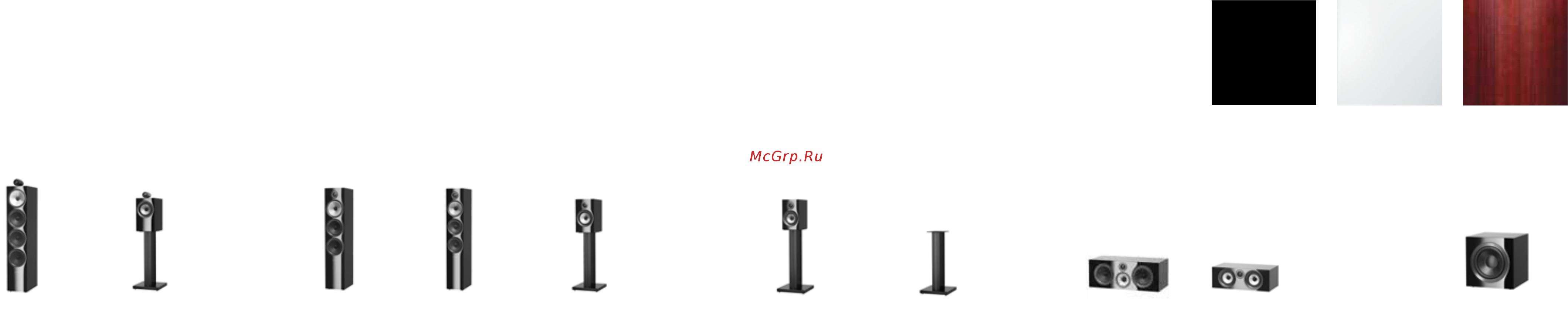

Finishes
The range comes in a choice of three finishes
to match your home environment: Gloss Black,
Satin White or Rosenut.
702 S2
Decoupled Carbon Dome
™
tweeter
Solid Body Tweeter on top
Continuum
™
cone FST
™
midrange
Decoupled midrange
Aerofoil
™
Profile bass cones
Flowport
™
3-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
1x ø150mm (6 in) Continuum
cone FST midrange
3x ø165mm (6.5 in) Aerofoil
Profile bass
-6dB at 28Hz and 33kHz
45Hz - 28kHz ±3dB
90dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
8Ω (minimum 3.1Ω)
30W - 300W into 8Ω on
unclipped programme
994mm (39 in) cabinet only
1087mm (42.8 in) including
tweeter and plinth
200mm (7.9 in) cabinet only
366mm (14.4 in) including
plinth
337mm (13.3 in) cabinet only
364mm (14.3 in) including
grille and terminals
414mm (16.3 in) including
plinth
29.5kg (65 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
Technical features
Description
Drive Units
Frequency range (-6dB)
Frequency response
Sensitivity
Harmonic distortion
Nominal impedance
Recommended amplifier
power
Dimensions Height:
Width:
Depth:
Weight
Finishes Cabinet:
Grille:
705 S2
Decoupled Carbon Dome
tweeter
Solid Body Tweeter on top
Continuum cone bass /
midrange
Flowport
2-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
1x ø165mm (6.5 in)
Continuum cone bass /
midrange
-6dB at 45Hz and 33kHz
50Hz - 28kHz ±3dB
88dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 100Hz - 22kHz
<0.5% 150Hz - 20kHz
8Ω (minimum 3.7Ω)
30W - 120W into 8Ω on
unclipped programme
340mm (13.4 in) cabinet only
407mm (16 in) including
tweeter
200mm (7.8 in)
285mm (11.2 in) cabinet only
301mm (11.9 in) including
grille and terminals
9.3kg (20.5 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
704 S2
Decoupled Carbon Dome
tweeter
Continuum cone FST
midrange
Decoupled midrange
Aerofoil Profile bass cones
Flowport
3-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
1x ø130mm (5 in) Continuum
cone FST midrange
2x ø130mm (5 in) Aerofoil
Profile bass
-6dB at 43Hz and 33kHz
48Hz - 28kHz ±3dB
88dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 100Hz - 22kHz
<0.5% 300Hz - 20kHz
8Ω (minimum 3.1Ω)
30W - 150W into 8Ω on
unclipped programme
925mm (36.4 in) cabinet only
959mm (37.8 in) including
plinth
165mm (6.5 in) cabinet only
252mm (9.9 in) including plinth
255mm (10 in) cabinet only
277mm (10.9 in) including
grille and terminals
298mm (11.7 in) including
plinth
18.5kg (41 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
706 S2
Decoupled Carbon Dome
tweeter
Continuum cone bass /
midrange
Flowport
2-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
1x ø165mm (6.5 in)
Continuum cone bass /
midrange
-6dB at 45Hz and 33kHz
50Hz - 28kHz ±3dB
88dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 100Hz - 22kHz
<0.5% 150Hz - 20kHz
8Ω (minimum 3.7Ω)
30W - 120W into 8Ω on
unclipped programme
340mm (13.4 in)
200mm (7.8 in)
285mm (11.2 in) cabinet only
301mm (11.9 in) including
grille and terminals
8.0kg (17.7 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
707 S2
Decoupled Carbon Dome
tweeter
Continuum cone bass /
midrange
Flowport
2-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
1x ø130mm (5 in) Continuum
cone bass / midrange
-6dB at 45Hz and 33kHz
50Hz - 28kHz ±3dB
84dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 110Hz - 22kHz
8Ω (minimum 4.0Ω)
30W - 100W into 8Ω on
unclipped programme
280mm (11 in)
165mm (6.5 in)
260mm (10.2 in) cabinet only
276mm (10.9 in) including
grille and terminals
6.0kg (13.2 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
FS-700 S2
615mm (24.2 in)
290mm (11.4 in)
298mm (11.7 in)
6kg (13.2 lb)
Black
Silver
HTM71 S2
Decoupled Carbon Dome
tweeter
Continuum cone FST
midrange
Aerofoil Profile bass cones
Flowport
3-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
1x ø100mm (4 in) Continuum
cone FST midrange
2x ø165mm (6.5 in) Aerofoil
Profile bass
-6dB at 45Hz and 33kHz
50Hz - 28kHz ±3dB
89dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz
8Ω (minimum 3Ω
30W - 200W into 8Ω on
unclipped programme
225mm (8.6 in)
590mm (23.2 in)
285mm (11.2 in) cabinet only
301mm (11.9 in) including
grille and terminals
18.3kg (39.7 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
HTM72 S2
Decoupled Carbon Dome
tweeter
Continuum cone bass /
midrange
Flowport
2-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
2x ø130mm (5 in) Continuum
cone bass / midrange
-6dB at 48Hz and 33kHz
70Hz - 28kHz ±3dB
87dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 100Hz - 22kHz
<0.5% 200Hz - 22kHz
8Ω (minimum 4.3Ω)
30W - 120W into 8Ω on
unclipped programme
166.5mm (6.6 in)
480mm (18.9 in)
260mm (10.2 in) cabinet only
275mm (10.8 in) including
grille and terminals
9.11kg (20.1 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
703 S2
Decoupled Carbon Dome
tweeter
Continuum cone FST
midrange
Decoupled midrange
Aerofoil Profile bass cones
Flowport
3-way vented-box system
1x ø25mm (1 in) Decoupled
Carbon Dome high-frequency
1x ø150mm (6 in) Continuum
cone FST midrange
2x ø165mm (6.5 in) Aerofoil
Profile bass
-6dB at 30Hz and 33kHz
46Hz - 28kHz ±3dB
89dB spl (2.83V
RMS
, 1m)
2nd and 3rd harmonics
(90dB, 1m)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz
8Ω (minimum 3.1Ω)
30W - 200W into 8Ω on
unclipped programme
990mm (39 in) cabinet only
1025mm (40.4 in) including
plinth
200mm (7.9 in) cabinet only
320mm (12.6 in) including
plinth
300mm (11.8 in) cabinet only
321mm (12.6 in) including
grille and terminals
370mm (14.6 in) including
plinth
25.0kg (55.2 lb)
Rosenut
Gloss Black
Satin White
Black
Grey (Satin White only)
Gloss Black
Satin White Rosenut
