AXIOMET AX-T520 [9/13] Connect the rj45 test jack to one end of the cable to be tested

3.7.1 Connect the RJ45 test jack to one end of the cable to be tested.

3.7.2 Connect the remote unit to the other end of the cable.

3.7.3 Push TEST button to perform test. Example: The Cable Fault is a SHORT on Pair 1-2 and Pair 3-

6, the LCD status will be as follows:

Pair 1-2, Pair 3-6, Pair 4-5, Pair 7-8, SHIE and SHO will display at the same time.

3.7.4 Push TEST button again, Pair 1-2, Pair 3-6 and SHO will display. Continue to Push TEST button,

the next pairs will display.

4. SPECIFICATIONS

Accuracy is specified for a period one year after calibration and at 18 ºC to 28 ºC ( 64 ºF to 82 ºF)

with relative humidity to 80 %.

4.1 GENERAL

MAXIMUM VOLTAGE 1000V DC or 700V AC

FUSE PROTECTION mA: F 200mA/250V 10A: no

POWER SUPPLY 9V battery, NEDA 1604 or 6F22

OPERATING TEMPERATURE 0 ºC to 40 ºC (32 ºF to 104 ºF)

STORAGE TEMPERATURE - 10 ºC to 50 ºC (14 ºF to 122 ºF)

DIMENSION 185×85×44 mm

WEIGHT 360g (including battery )

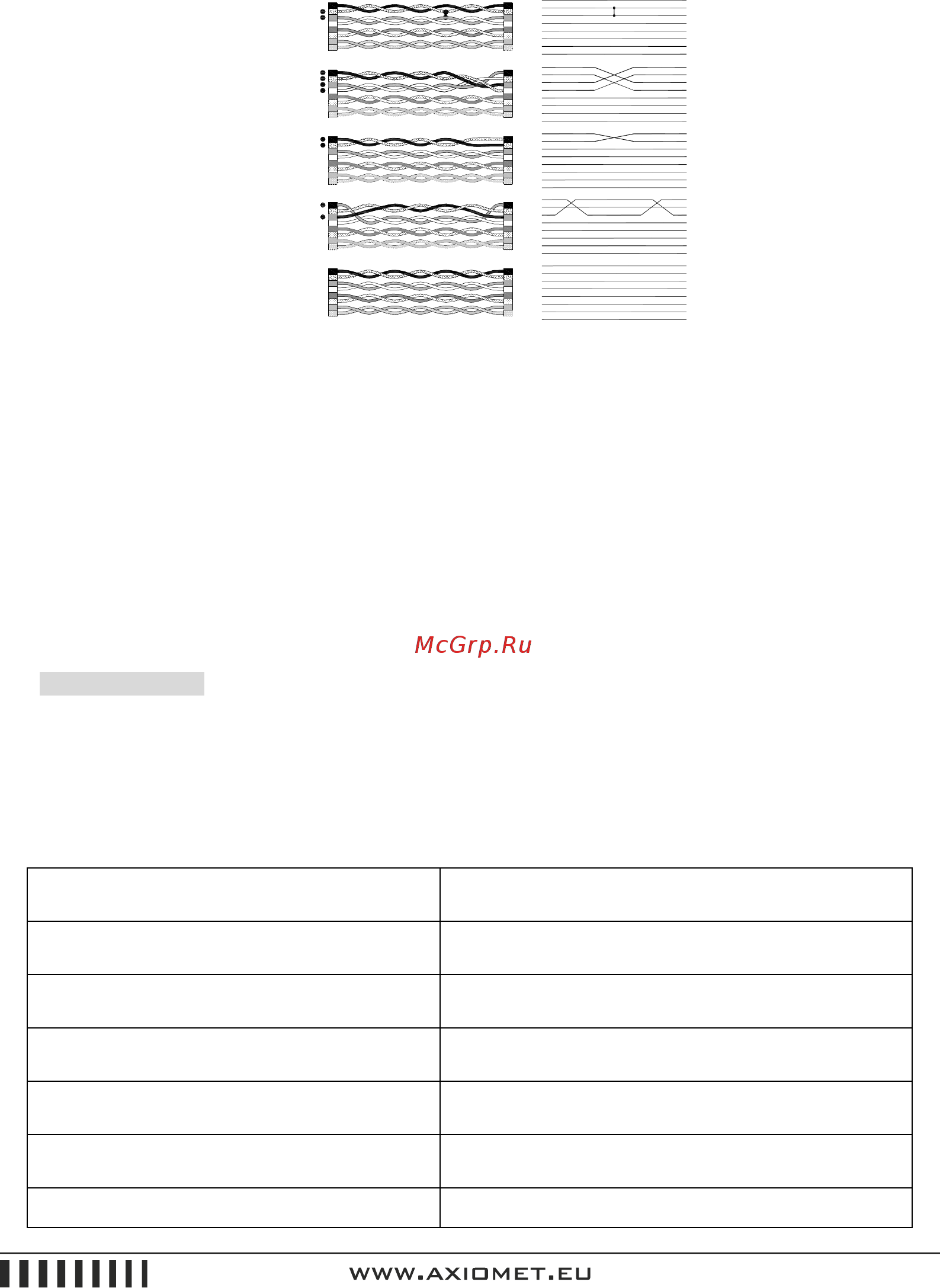

Fig.4 SPLIT PAIRS

Fig.3 REVERSED

Fig.2 MISWIRE

Fig.1 SHORT

Fig.5 RIGHT (PASS)
