Explanation on Front Panel

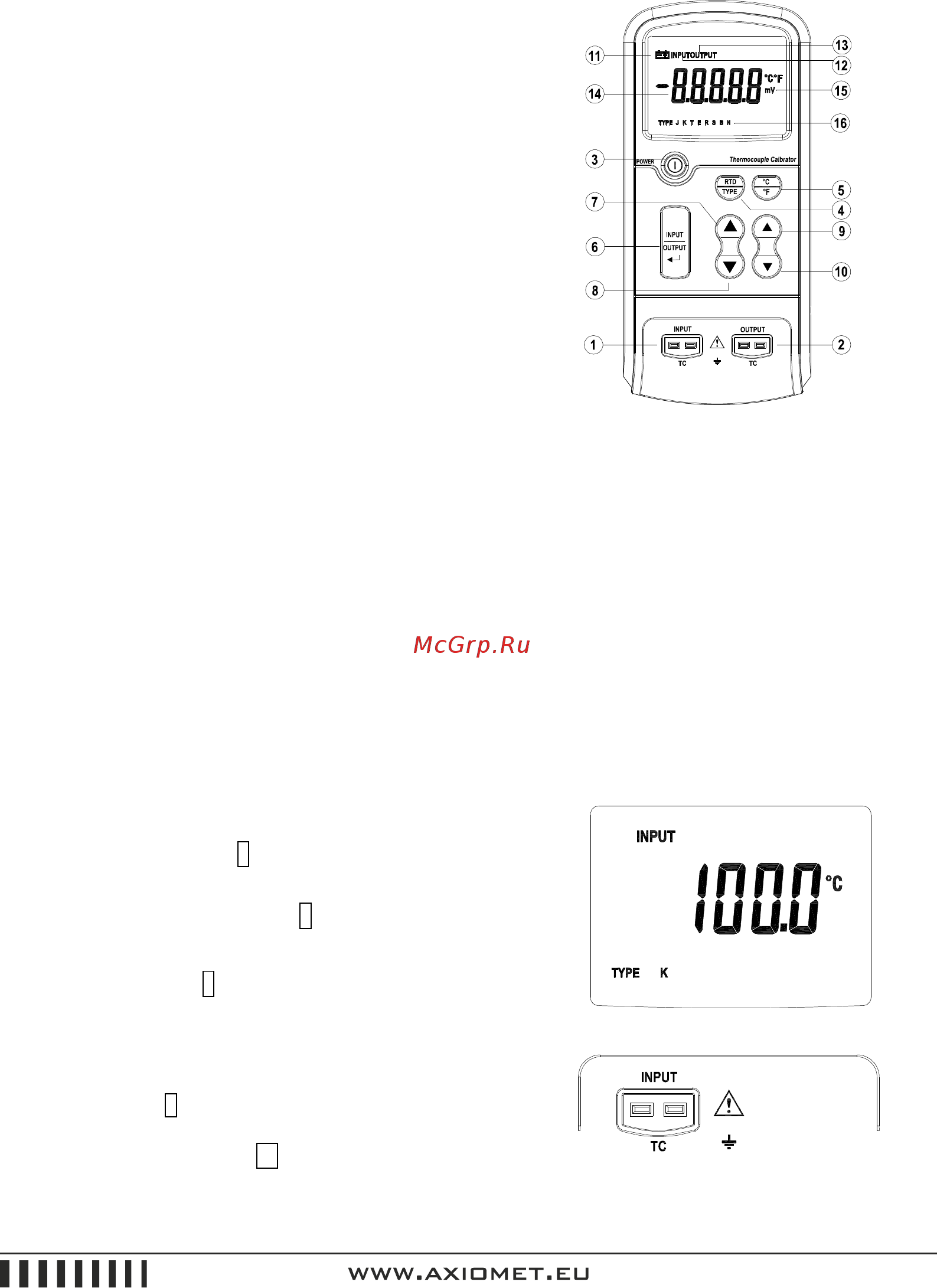

The front panel is show as in right figure:

1. Input jack

2. Output jack

3. Power key

4. Mode key

5. °C/°F key

6. Input/output key

7. Increase more value key

8. Reduce more value key

9. Increase less value key

10. Reduce less value key

11. Low power indication

12. Input state indication

13. Output state indication

14. Reading value

15. Unit indication

16. Mode indication

Operation Instructions

Thermocouple or Millivolt measurement/input

①

Press the power key 3, turn on the calibrator.

②

Press the Input/output key 6, when on the input mode.

③

Press mode key 4, on the measure type you want.

④

Put the measure thermocouple or millivolt source into

the input jack 1.

⑤

Get the reading value 14.

* The number in the □, referring to the “Explanation on Front Panel” (Page7)

TERMINAL

30V MAX

TERMINAL

30V MAX
