Operating Procedure

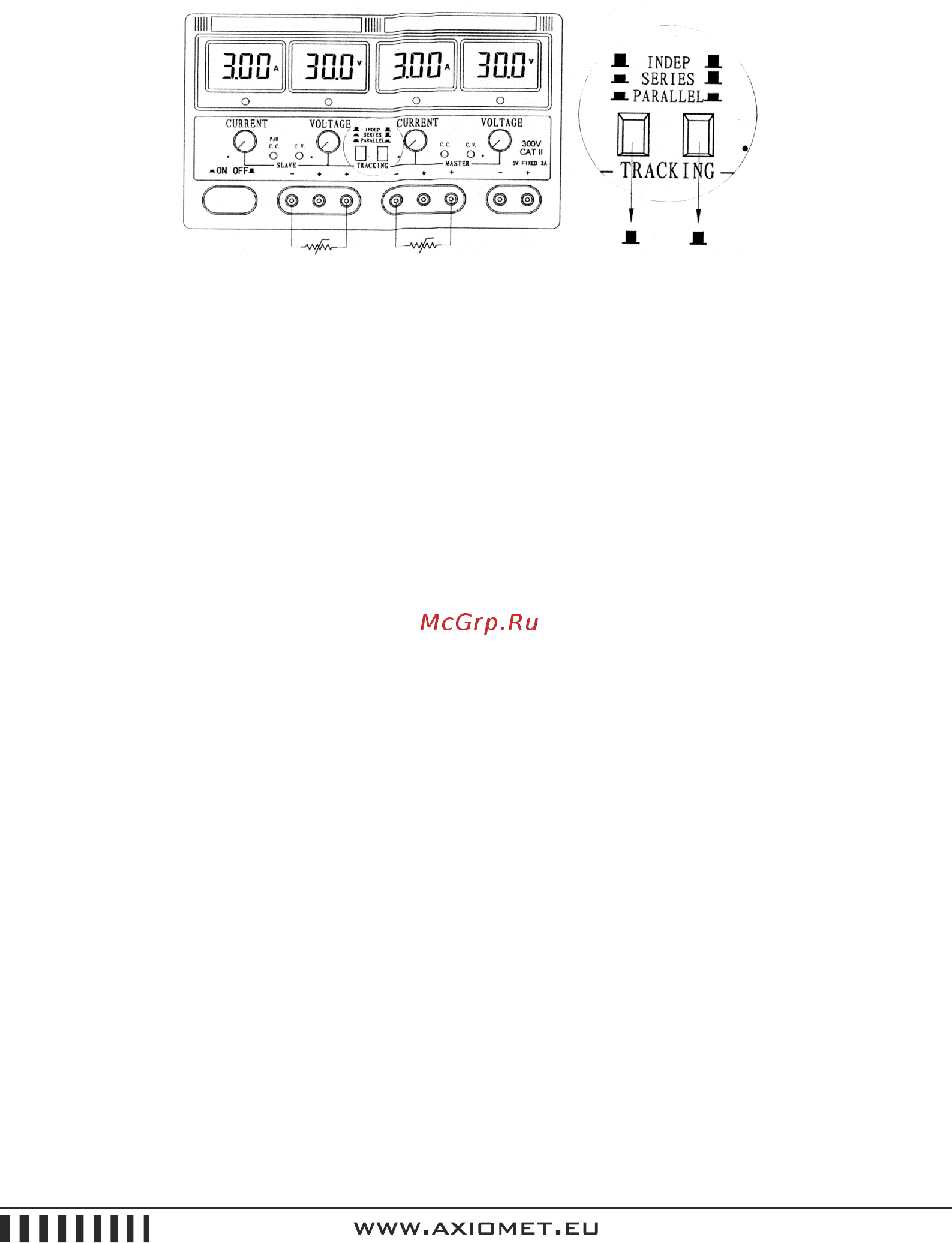

Double adjustable supply used independently.

Put the control switch 3 & 21 on the position where is bounced up. The master power supply and

slave power supply are all independently output voltage and current.

1. CONSTANT VOLTAGE MODE

1.1. Turn the current regulator 4 & 19 clockwise to maximum position.

1.2. Turn the voltage regulators 5 & 20 anti-clockwise to minimum position.

1.3. Put the display choose switch 1 & 24 to the voltage display position (The operation is only LED

and two pointer meters model).

1.4. Press the power ON/OFF switch to ON.

1.5. Turn the voltage regulators 5 & 20 clockwise respectively to get the output voltage value of

master unit and slave unit as your desire.

1.6. Connect the positive output terminal and negative output terminal with a load or similar

component.

1.7. The indicators show the output voltage and output current appeared on the output terminals.

2. CONSTANT CURRENT MODE

2.1. Turn the voltage regulators 5 & 20 clockwise to maximum position.

2.2. Turn the current regulator 4 & 19 anti-clockwise to minimum position.

2.3. Put the display choose switch 1 & 24 to the current display position (The operation is only LED

and two pointer meters model).

2.4. Press the power ON/OFF switch to ON.

2.5. Connect the positive output terminal and negative output terminal with a load or similar

component.

2.6. Turn the current regulators 4 & 19 clockwise respectively to get the output current value of

master unit and slave unit as your desire.

2.7. The indicators show the output voltage and output current appeared on the output terminals.

3. RESTRICTED CURRENT PROTECTION MODE

3.1. Press the power ON/ OFF switch to ON.

3.2. Turn the current regulators 4 & 19 anti-clockwise to minimum position then clockwise a little

and the C.C. lamp is not lighted.

3.3. Turn the voltage regulator 5 & 20 clockwise to an appropriate output voltage level position

(approx.1.5V).

3.4. Put the display choose switch 1 & 24 to the current display position (The operation is only LED

and two pointer meters model).

3.5. Link the positive and negative output terminals with a wire.
