terminal whether it is of master or of slave unit, because the connection will bring short-circuit of

the subsidiary circuit.

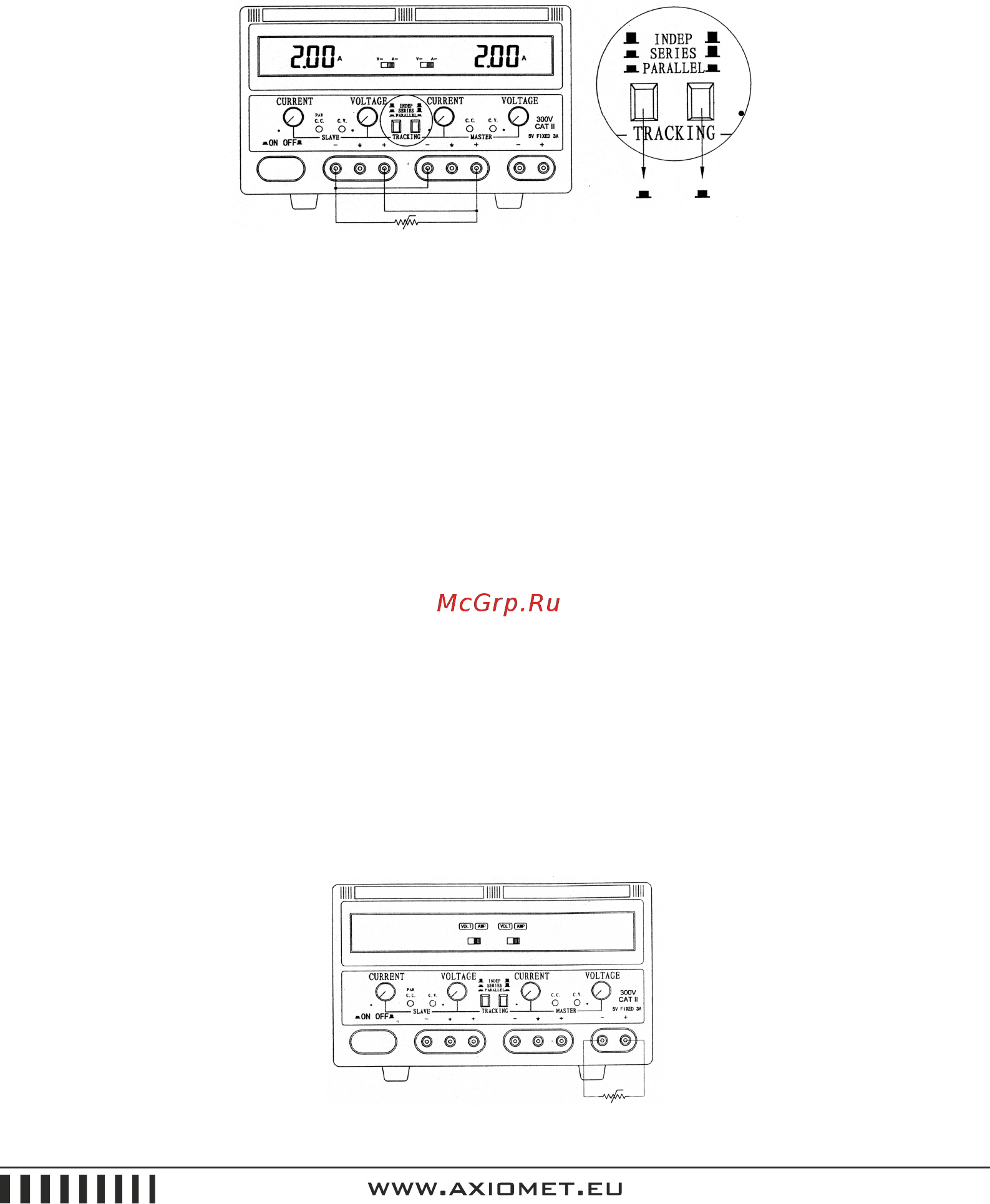

DOUBLE ADJUSTABLE SUPPLY USED IN PARALLEL CONDITION.

Figure 2-5

Pressing down the control switch 3 & 21. The slave power supply is interconnected in parallel with

master power supply.

1. In parallel operation, The adjusting of the slave voltage regulator 20 is inactive. The current

regulator 19 of slave unit will not take effect in parallel condition.

2. Turn the voltage regulator 5 clockwise, the output voltage of two - circuit is changed identically.

The C.C. indicator of the slave unit is lighted as well.

3. The current of master and slave unit will be controlled only master unit current

regulator 4.

4. The biggest output current is the sum of regular value of two groups.

NOTE:

In this parallel operation, if the output current is more, to avoid the machinery switch of instrument

from damage, you should:

1. The positive output terminal 10 of master unit and positive output terminal 13 of slave unit

should be connected reliably with a thick conductive wire.

2. The negative output terminal 12 of master unit and negative output terminal 15 of slave unit

should be connected reliably with a thick conductive wire.

FIXED 5V3A

This is a fixed regular, voltage output 5V and current output 3A. Output voltage and current do not

be displayed.

Figure 2-6
