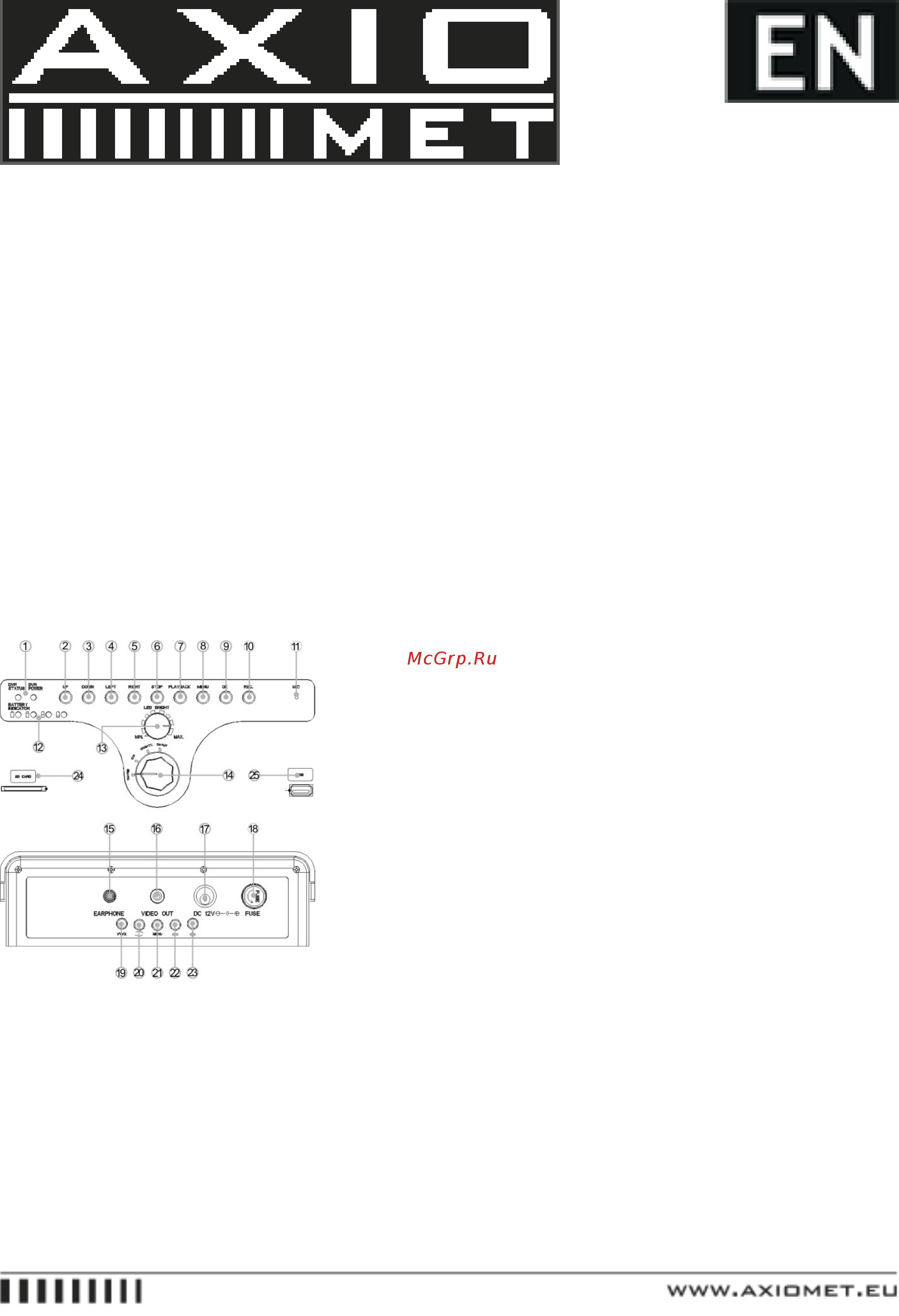

AXIOMET AX-B2120RD [6/15] Quick start guide

12 - Battery level indicator

13 - LED brightness adjust

14 - Power Control

15 - Earphone jack

16 - Video output

17 - Charge adaptor

18 - Fuse jack

19 - Video 1 Video 2

20 - Image up & down & left & right

21 - Menu(include bright, contrast, color, language, 16:9&4:3 ratio, sleep)

22 - Sub menu down

23 - Sub menu up

24 - SD card slot

4. Quick Start Guide

4.1. Charging the Battery

1. Connect the charger to the socket, the indicator of charger will turn into green.

2. Connect the plug to the jack of control box.

3. Turn the switch knob to “CHARGE” position.
