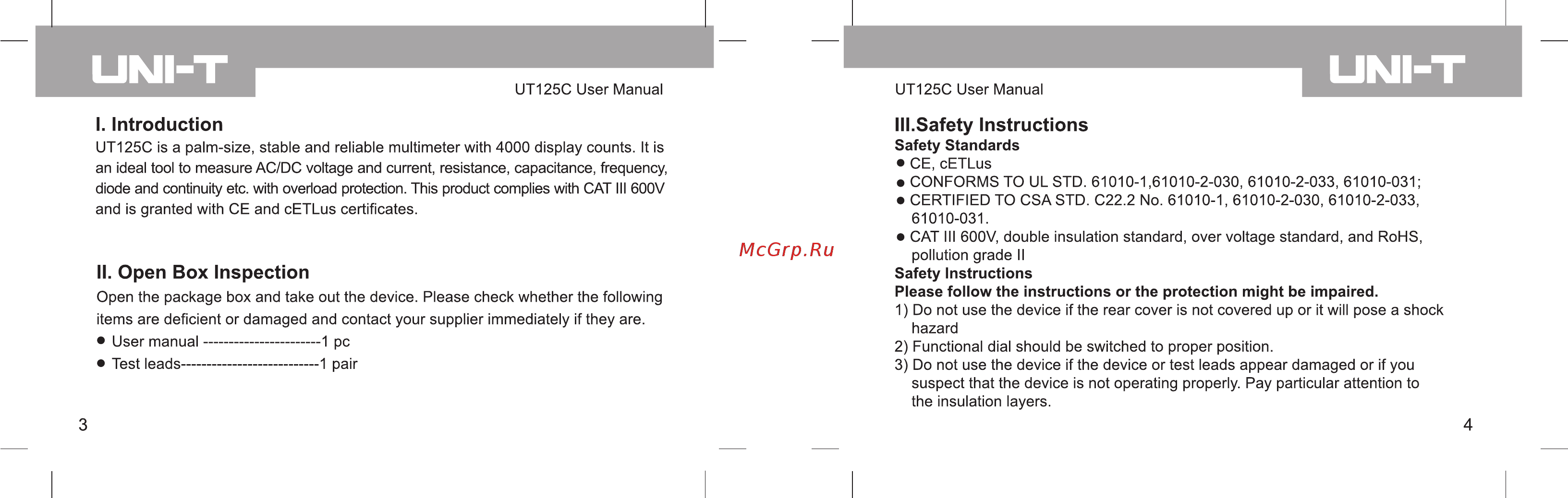

UT125C User Manual I Introduction Ill Safety Instructions UT125C is a palm size stable and reliable multimeter with 4000 display counts It is an ideal tool to measure AC DC voltage and current resistance capacitance frequency diode and continuity etc with overload protection This product complies with CAT III 600V and is granted with CE and cETLus certificates Safety Standards CE cETLus CONFORMS TO ULSTD 61010 1 61010 2 030 61010 2 033 61010 031 CERTIFIED TO CSASTD C22 2 No 61010 1 61010 2 030 61010 2 033 61010 031 CAT III 600V double insulation standard overvoltage standard and RoHS pollution grade II Safety Instructions Please follow the Instructions or the protection might be impaired 1 Do not use the device if the rear cover is not covered up or it will pose a shock hazard 2 Functional dial should be switched to proper position 3 Do not use the device if the device or test leads appear damaged or if you suspect that the device is not operating properly Pay particular attention to the insulation layers II Open Box Inspection Open the package box and take out the device Please check whether the following items are deficient or damaged and contact your supplier immediately if they are User manual 1 pc Test leads 1 pair 3 UT125C User Manual 4
