Digital Multimeters
5490C Series
2
www.bkprecision.com

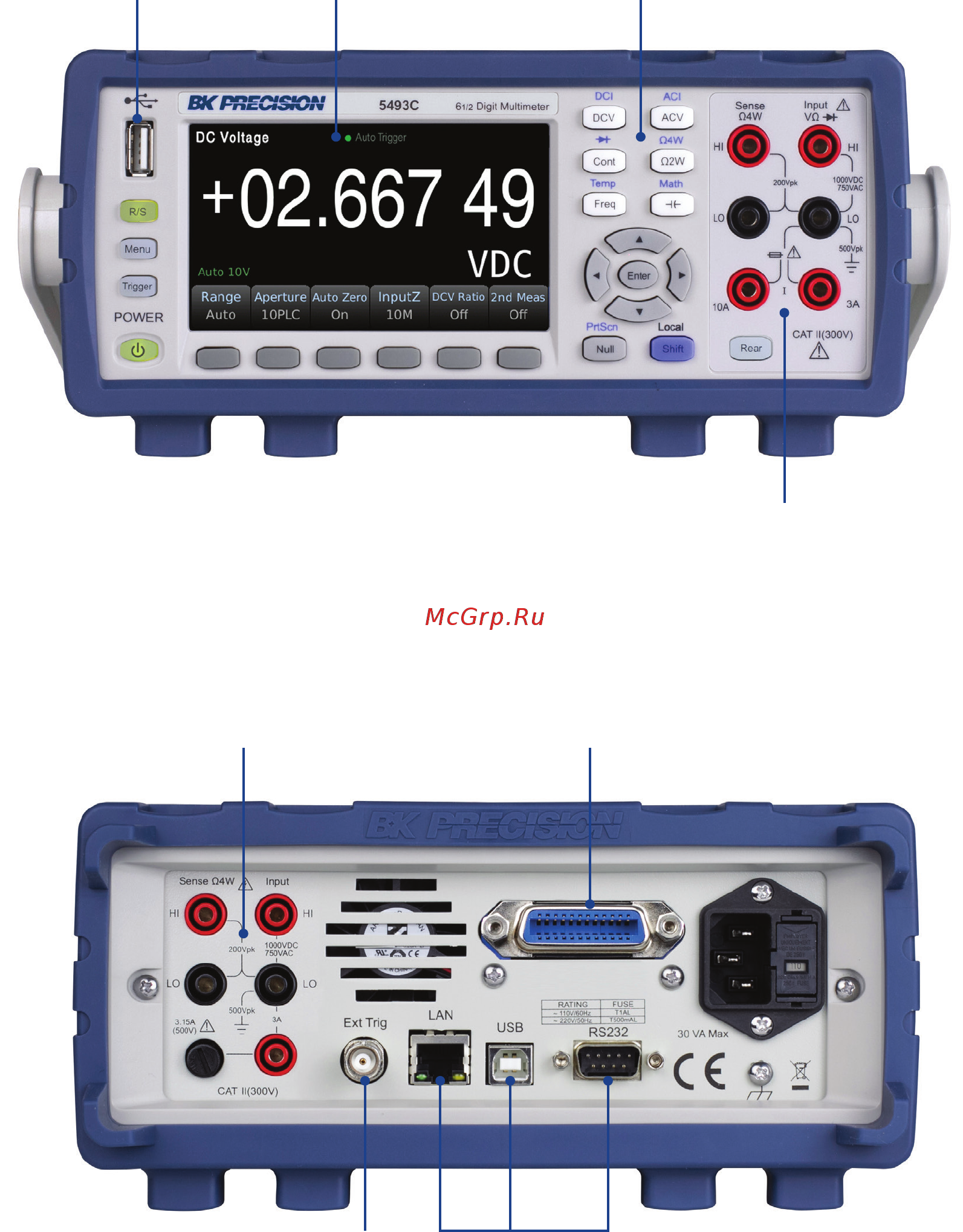

Front panel
Rear panel
USB host
Save and recall settings, transfer
screen captures, export measurement
data files
Function keys
Quickly cycle between
different measurement modes
Remote interfaces
LAN, USB (USBTMC-compliant)
and RS232 interfaces standard
Optional GPIB interface
Models 5492CGPIB and 5493CGPIB
External trigger
Trigger input to
synchronize with other
events and instruments
Rear input terminals
6½-digit models only
LCD display
4.3-inch, high contrast,
adjustable brightness
Input terminals
