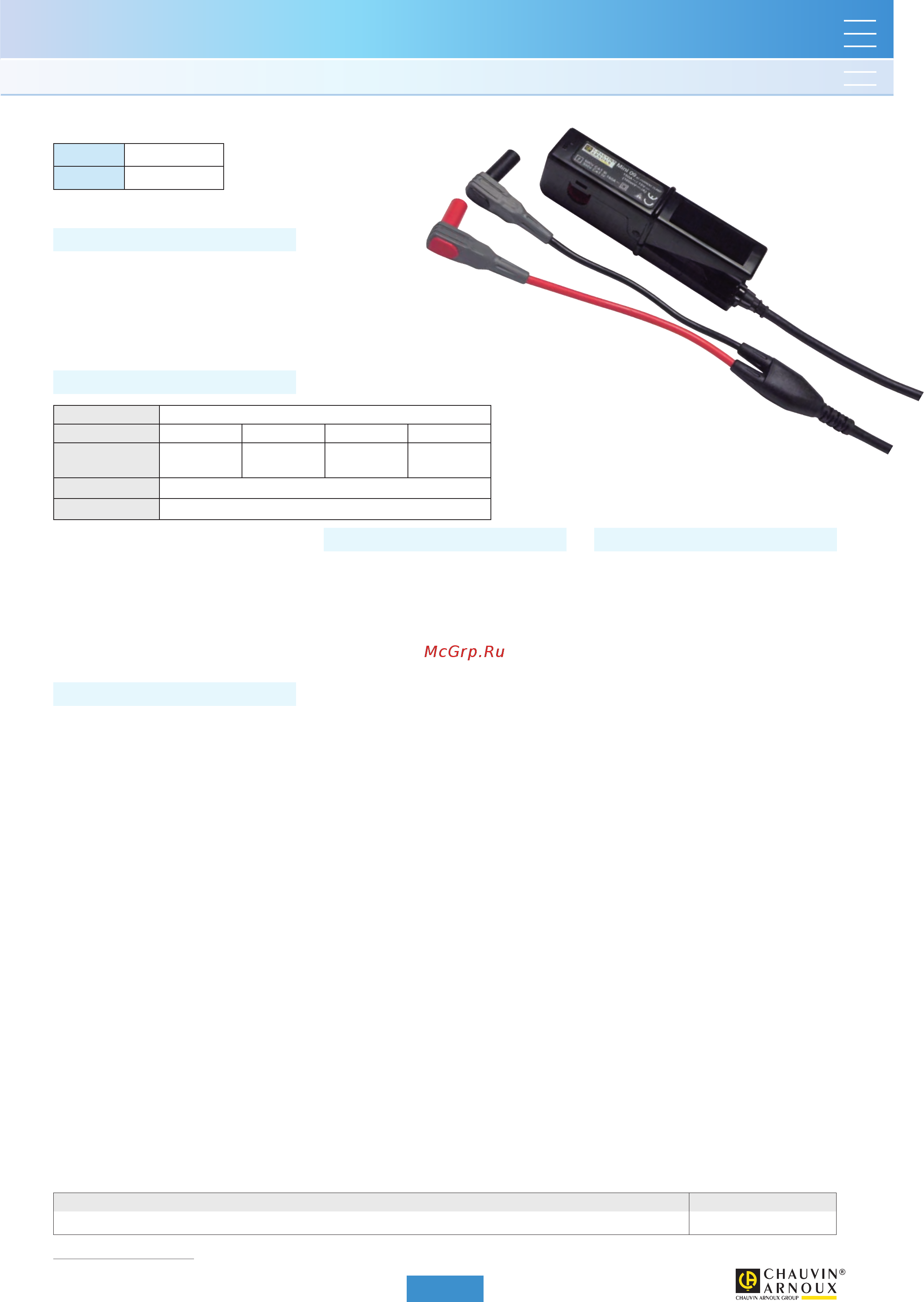

MINI series

Current clamp for AC current

Model MINI 09

•

Output:

Double-insulated cable 1.5 m long, terminated

by 2 insulated elbowed male banana connectors

Ø4mm

•

Bandwidth:

48 Hz .. 500 Hz

•

Clamping capacity:

Cable Ømax 10mm

ELECTRICAL SPECIFICATIONS

•

Maximum currents:

I <150 A permanent from 65 Hz .. 500 Hz

•

Inﬂ uence of temperature:

≤0.2% per 10 °K

•

Inﬂ uence of adjacent conductor:

≤2 mA / A at 50 Hz

•

Inﬂ uence of conductor position in jaws:

≤0.1% at 50/60 Hz

•

Inﬂ uence of frequency:

≤3% from 65 Hz to 500Hz

MECHANICAL SPECIFICATIONS

•

Operating temperature:

-10 °C to +50 °C

•

Storage temperature:

-40 °C to +80 °C

•

Relative humidity for operation:

0 to 85% RH decreasing linearly above 35°C

•

Operating altitude:

0 to 2,000 m

•

Casing protection rating (leakprooﬁ ng):

IP40

(2)

(EN60529 Ed. 1992)

•

Drop test:

1.5 m (IEC68-2-32)

•

Shock resistance:

100 g / 6 ms / half-period (IEC68-2-27)

•

Vibration resistance

(3)

5-15 Hz (1.5mm), 15-25 Hz (1 mm),

25-55Hz (0.25mm) (IEC68-2-6)

•

Self-extinguishing capability:

Casing UL94 V2

•

Dimensions:

130 x 37 x 25mm

•

Weight:

Approx. 180 g

•

Colour:

Black casing

SAFETY SPECIFICATIONS

•

Electrical safety:

Instrument with double insulation or reinforced

insulation between the primary, the secondary and

the grippable part located under the guard as per

EN61010-1 Ed.2:2001, EN61010-2-031 Ed.2002

& EN61010-2-032 Ed.2003

- 600 V categoryIII, poll

ution degree 2

300 V category IV, pollution degree 2

•

Electromagnetic compatibility:

CE-certiﬁ ed equipment compliant with standard

EN61326-1 (Ed. 97) + A1 (Ed.98) + A2 (Ed.01)

- Emission: stipulations for class B equipment

(domestic use).

- Immunity: stipulations for equipment used

intermittently on industrial sites.

(1) Conditions of reference: 23 °C ± 3 °K, 20% to 75% RH, sinusoidal signal with frequency of 48 Hz to 65 Hz, distortion factor <1% with no DC component, external DC magnetic ﬁ eld <40A/m,

no external AC magnetic ﬁ eld, no external conductor with circulating current, conductor centred for measurement, measurement instrument load impedance ≥ 50 kΩ.

(2) With clamp closed.

(3) Vibrations expressed inmm peak, scanning of 1 octave/minute for 10 minutes on 3 axes.

Calibre

150 A AC

Sensitivity

100 mV DC / A AC

DESCRIPTION

Small and compact, the MINI 09 current clamp is

the ideal complement for any multimeter to measure

AC currents in low-power tertiary or industrial

applications.

Its DC voltage output helps to overcome the low

sensitivity of certain AC measurement instruments.

MAIN SPECIFICATIONS

(1)

Calibre 150 A

Measurement range 1 A .. 5 A 5 A .. 15 A 15 A .. 40 A 40 A .. 150 A

Accuracy of primary

current in%

≤10% + 0.2 A ≤6% + 0.2 A ≤3% + 0.2 A ≤4%

Phase shift not specified

Output signal 100 mV DC / A AC (15 V DC for 150 A)

To order Reference

AC current clamp model MINI 09 with operating manual P01105109Z
