Gigabyte Z390 GAMING X (rev. 1.1) [4/48] Z390 gaming x motherboard layout

- 4 -

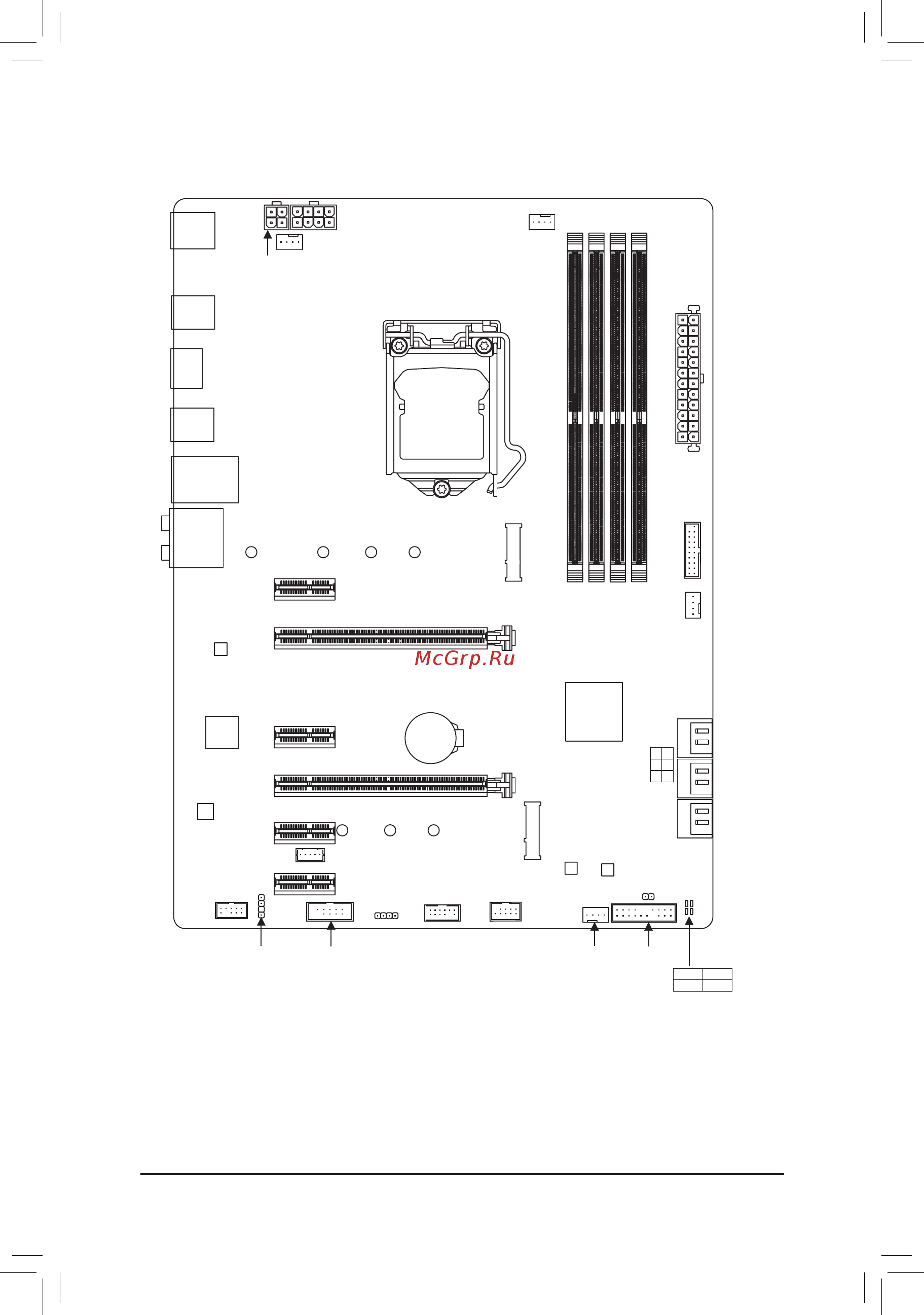

Z390 GAMING X Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5 Z390 GAMING X motherboard 5 Two SATA cables

5 Motherboard driver disk 5 M.2 screw(s)/M.2 standoff(s)

5 User's Manual

KB_MS_USB

HDMI

R_USB30

USB30_LAN

LGA1151

ATX

AUDIO

ATX_12V_2X4

Intel

Z390

CLR_CMOS

M_BIOS

B_BIOS

PCIEX1_1

PCIEX4

PCIEX1_4

PCIEX16

PCIEX1_2

PCIEX1_3

F_USB30

M2A

CODEC

Z390 GAMING X

F_PANEL

F_USB

LED_C

F_AUDIO

COMSPDIF_O

SYS_FAN3

TPM

SYS_FAN1

SYS_FAN2

CPU_FAN

iTE

Super I/O

426080110

SATA3

5 3 1

4 2 0

BAT

Intel

GbE

LAN

CPU DRAM

VGA BOOT

R_USB31

THB_C

M2M

426080

ATX_12V_2X2

DDR4_B1

DDR4_B2

DDR4_A1

DDR4_A2
