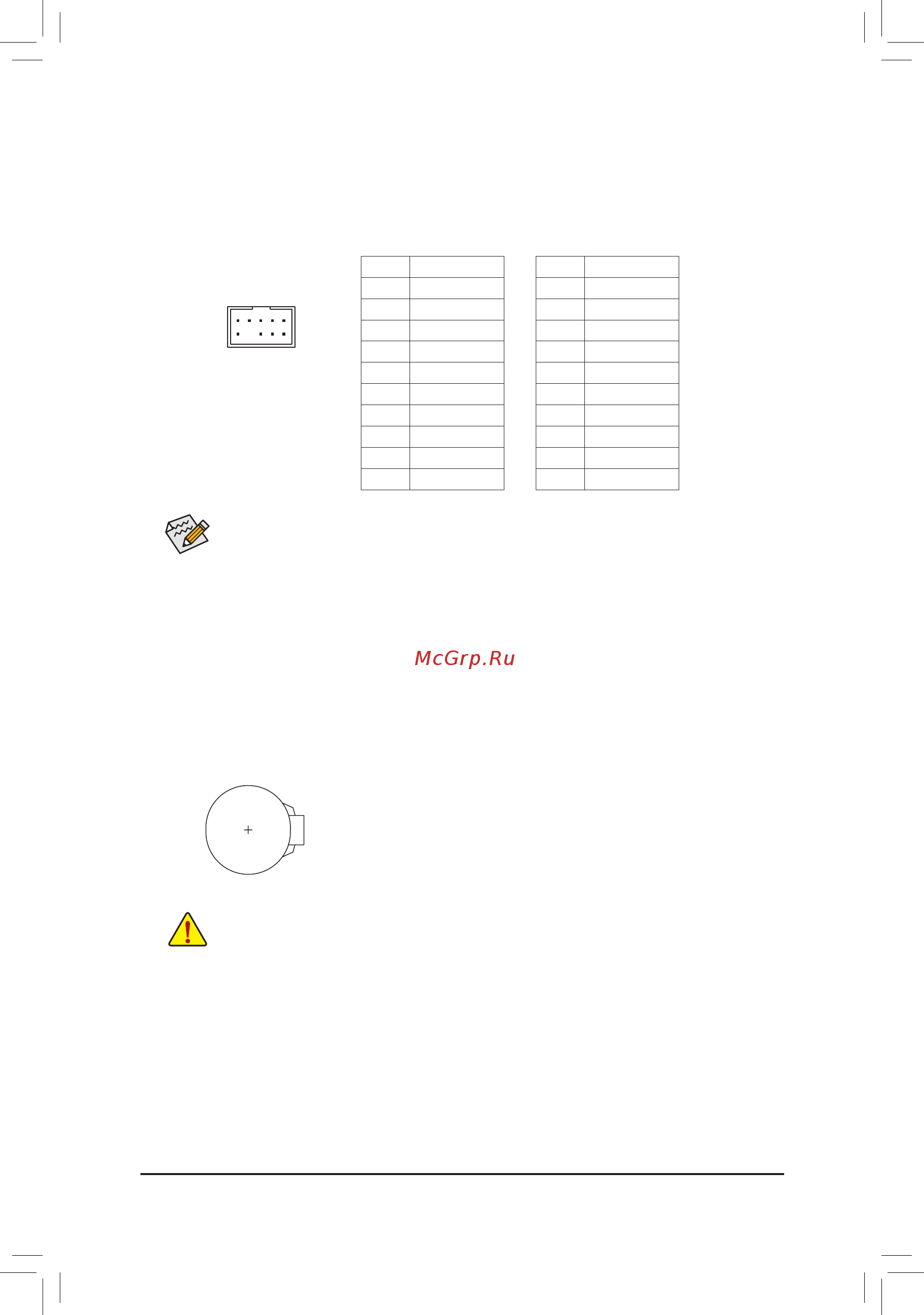

11) F_AUDIO (Front Panel Audio Header)

 ThefrontpanelaudioheadersupportsIntelHighDenitionaudio(HD)andAC'97audio.Youmayconnect

your chassis front panel audio module to this header. Make sure the wire assignments of the module

connector match the pin assignments of the motherboard header. Incorrect connection between the module

connector and the motherboard header will make the device unable to work or even damage it.

ForHDFrontPanelAudio:

For AC'97 Front Panel Audio:

• ThefrontpanelaudioheadersupportsHDaudiobydefault.

• Audio signals will be present on both of the front and back panel audio connections simultaneously.

3 MIC2_R

4 NC

5 LINE2_R

6 Sense

7 FAUDIO_JD

8 No Pin

9 LINE2_L

10 Sense

12) BAT (Battery)

 Thebatteryprovidespowertokeepthevalues(suchasBIOScongurations,date,andtimeinformation)

intheCMOSwhenthecomputeristurnedoff.Replacethebatterywhenthebatteryvoltagedropstoalow

level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

• Replacethebatterywithanequivalentone.Dangerofexplosionifthebatteryisreplacedwith

an incorrect model.

• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself

or uncertain about the battery model.

• Wheninstallingthebattery,notetheorientationofthepositiveside(+)andthenegativeside(-)

ofthebattery(thepositivesideshouldfaceup).

• Used batteries must be handled in accordance with local environmental regulations.

- 17 -
