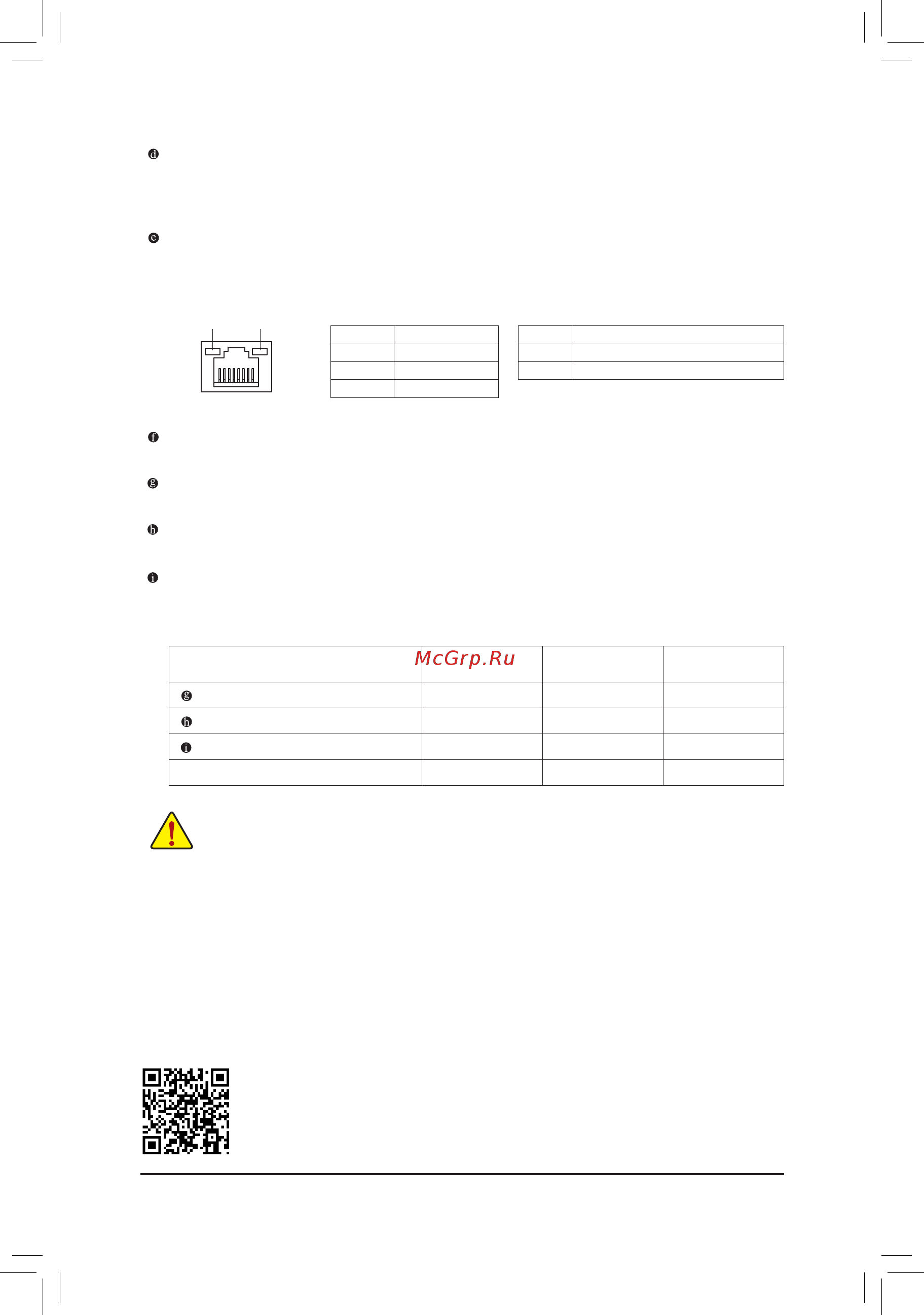

Gigabyte X570 GAMING X (rev. 1.1) [11/44] Line in blue

ActivityLED

Connection/

SpeedLED

LAN Port

ActivityLED:Connection/SpeedLED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Datatransmissionorreceivingisoccurring

Off No data transmission or receiving is occurring

USB 3.1 Gen 1 Port (White)

TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.BeforeusingQ-FlashPlus

(Note 2)

, make sure to insert the

USBashdriveintothisportrst.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describesthestatesoftheLANportLEDs.

• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

• Whenremovingthecable,pullitstraightoutfromtheconnector.Donotrockitsidetosideto

prevent an electrical short inside the cable connector.

AudioJackCongurations:

Jack

Headphone/

2-channel

4-channel 5.1-channel

LineIn/RearSpeakerOut

a a

Line Out/Front Speaker Out

a a a

Mic In/Center/Subwoofer Speaker Out

Front Panel Line Out/Side Speaker Out

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

Line In (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out/Front Speaker Out (Green)

The line out jack.

Mic In (Pink)

The Mic in jack.

(Note2) ToenabletheQ-FlashPlusfunctionpleasevisitthe"UniqueFeatures"webpageofGIGABYTE's

website.

- 11 -
