Conguring a RAID Set

The BIOS Setup menus described in this section may differ from the exact settings for your motherboard.

The actual BIOS Setup menu options you will see shall depend on the motherboard you have and

the BIOS version.

Step 2:

TousetheEZRAIDfeature,followthestepsin"C-1."TocongureUEFIRAID,followthestepsin"C-2."To

enter the legacy RAID ROM, refer to "C-3" for more information. Finally, save the settings and exit BIOS Setup.

B.ConguringSATAcontrollermodeinBIOSSetup

MakesuretoconguretheSATAcontrollermodecorrectlyinsystemBIOSSetup.

Step 1:

Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). Go to

Settings\IOPorts\SATAAndRSTConguration, make sure SATA Controller(s) is enabled. To create RAID,

set SATA Mode Selection to Intel RST Premium With Intel Optane System Acceleration. Then save the

settings and restart your computer. (Figure 1) Note: When using a PCIe SSD, make sure to set the Use RST

Legacy OROM item under Settings\IOPorts\SATAAndRSTConguration to Disabled and RST Control

PCIe Storage Devices to Manual. Then depending the M.2 connector you use, set the corresponding PCIe

Storage Dev On Port XX item to RST Controlled. Finally, save the settings and exit BIOS Setup. (If you want

touseNVMePCIeSSDstocongureRAID,makesuretosetNVMe RAID mode to Enabled.)

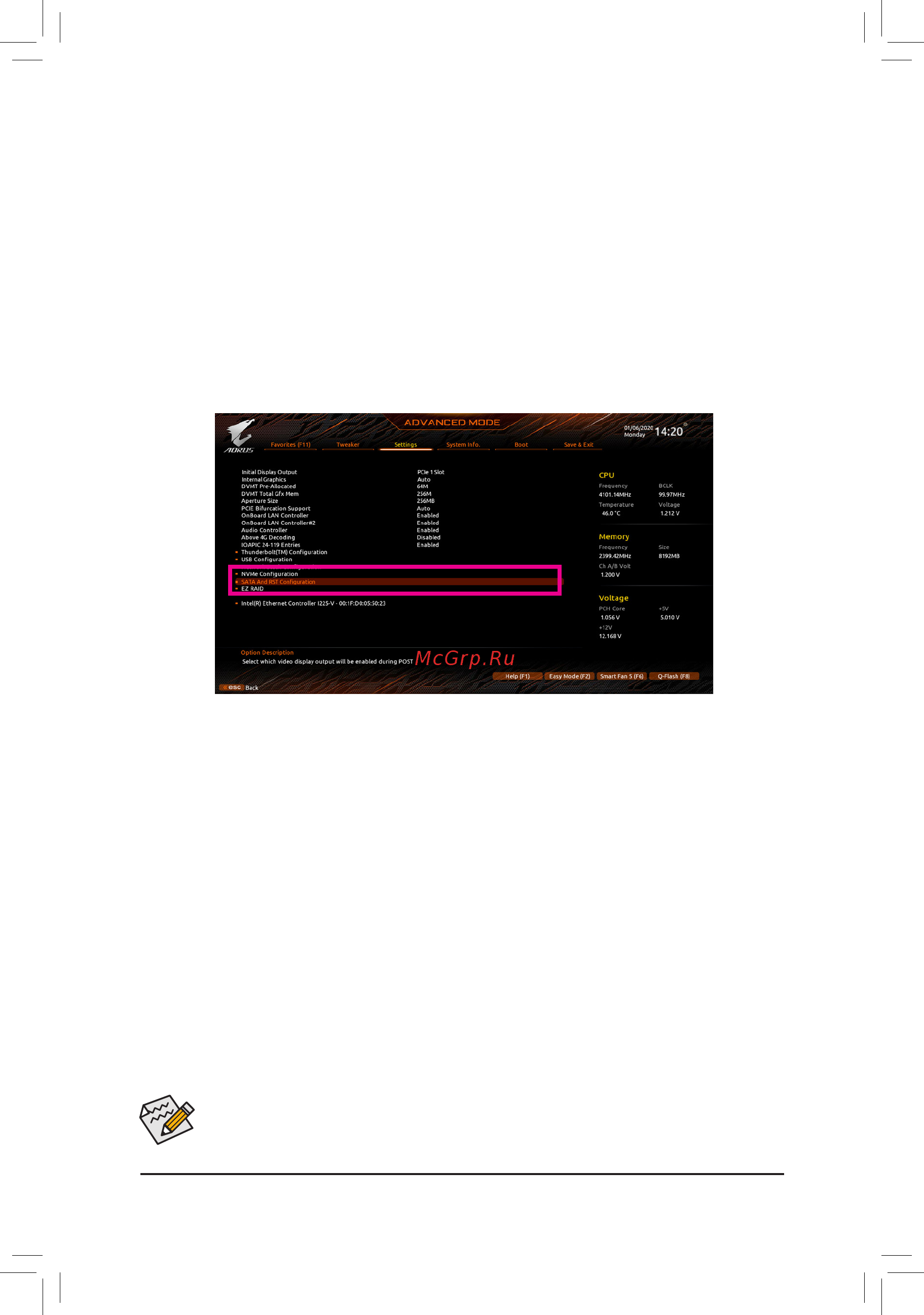

Figure 1
