Gigabyte TRX40 AORUS PRO WIFI (rev. 1.1) [11/48] Installing the cpu
![Gigabyte TRX40 AORUS PRO WIFI (rev. 1.1) [11/48] Installing the cpu](/views2/1666738/page11/bgb.png)
1-3 Installing the CPU
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
• Prepare a T20 star screwdriver.
• Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
• Set the CPU host frequency in accordance with the CPU specications. It is not recommended
that the system bus frequency be set beyond hardware specications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications, please do so according to your hardware specications including the CPU, graphics
card, memory, hard drive, etc.

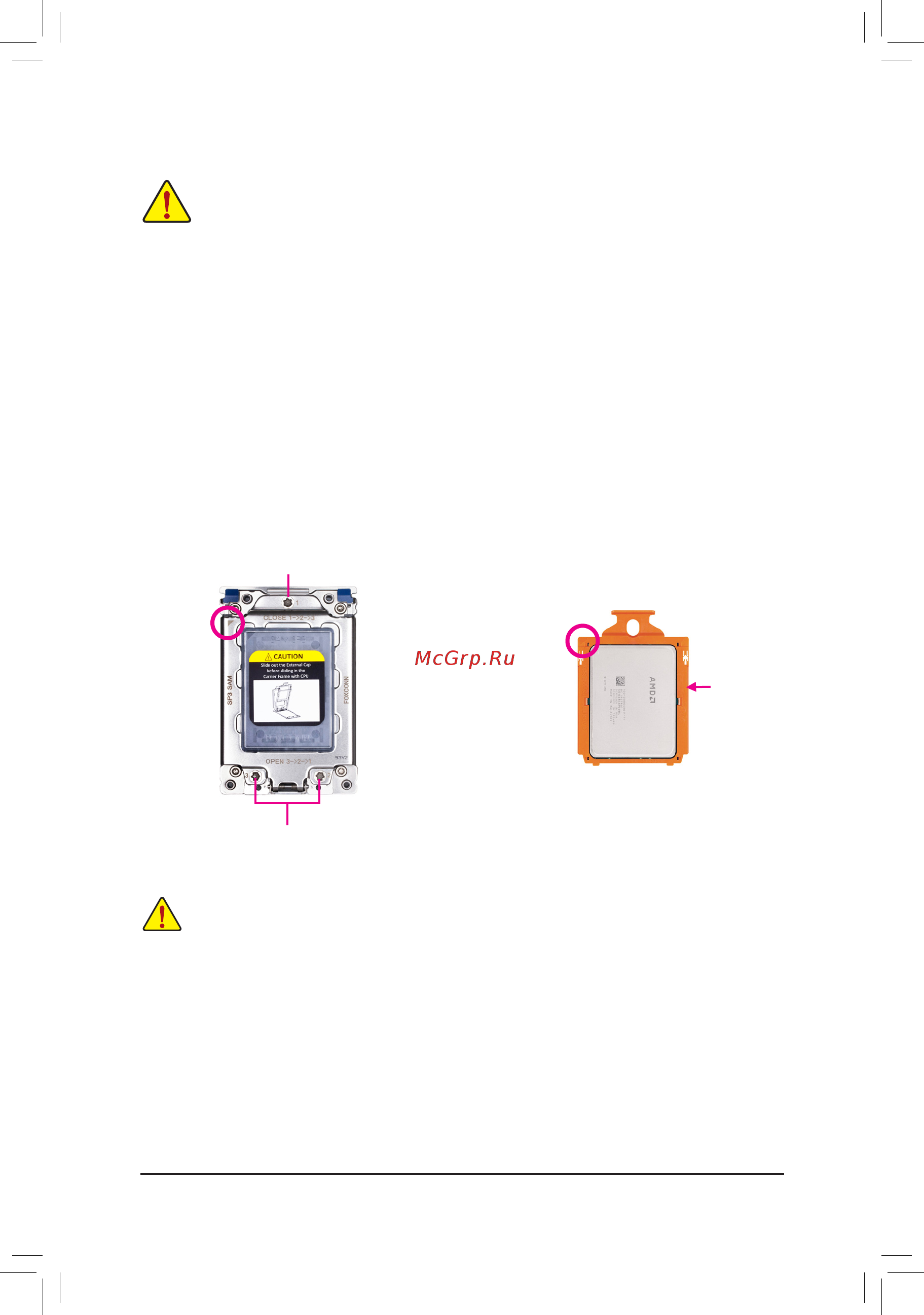

Installing the CPU
The CPU carrier frame must be slided into the CPU rail frame with the CPU. Do not remove the
CPU from the CPU carrier frame.
CPU
Pin One Triangle
CPU Carrier Frame
AMD Socket sTRX4
CPU Load Plate Screw
CPU Load Plate Screw
Pin One Triangle
- 11 -
