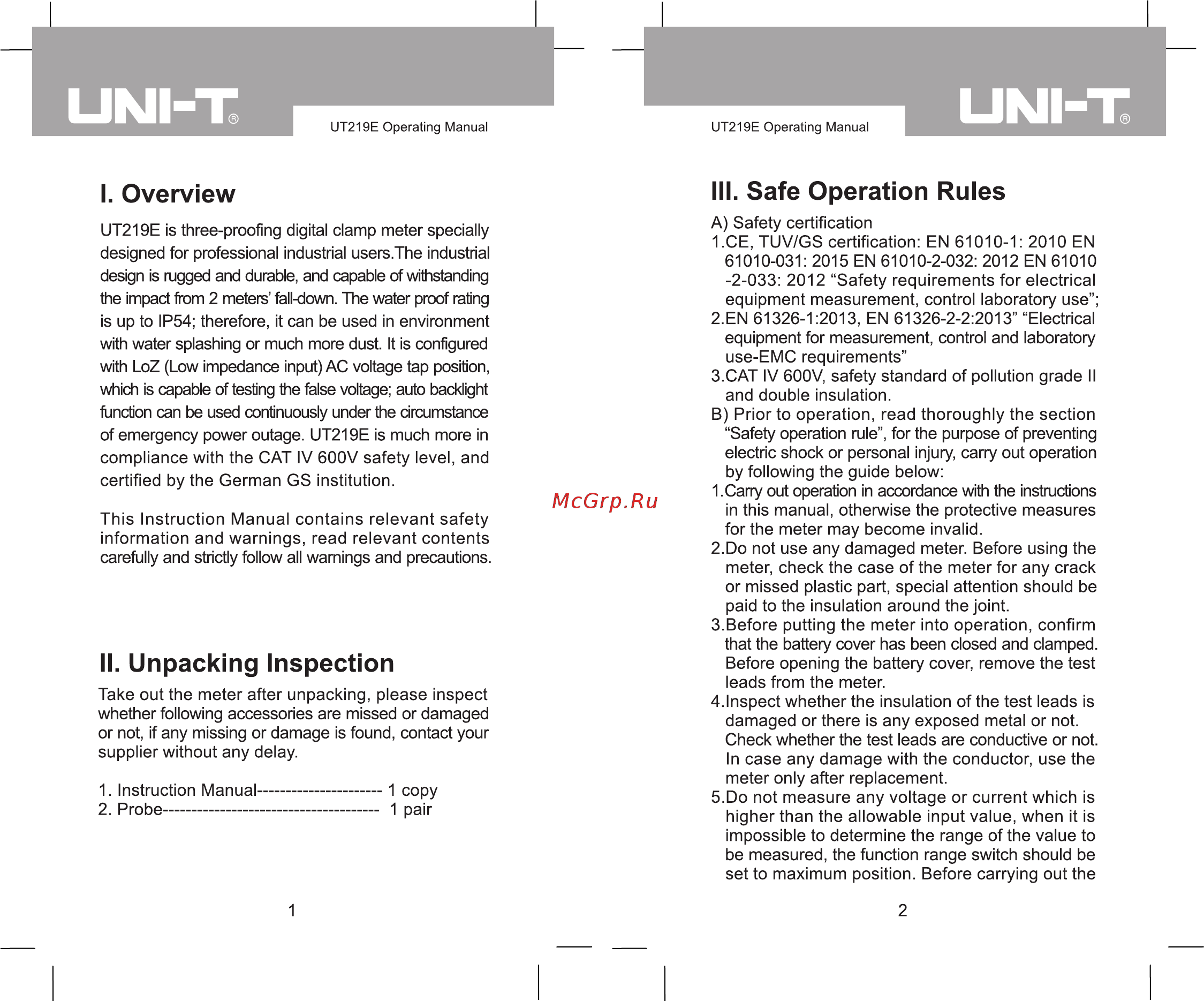

UNI UT219E Operating Manual UT219E Operating Manual I Overview III Safe Operation Rules UT219E is three proofing digital clamp meter specially A Safety certification 1 CE TUV GS certification EN 61010 1 2010 EN 61010 031 2015 EN 61010 2 032 2012 EN 61010 2 033 2012 Safety requirements for electrical equipment measurement control laboratory use 2 EN 61326 1 2013 EN 61326 2 2 2013 Electrical equipment for measurement control and laboratory use EMC requirements 3 CAT IV 600V safety standard of pollution grade II and double insulation B Prior to operation read thoroughly the section Safety operation rule for the purpose of preventing electric shock or personal injury carry out operation by following the guide below 1 Carry out operation in accordance with the instructions in this manual otherwise the protective measures for the meter may become invalid 2 Do not use any damaged meter Before using the meter check the case of the meter for any crack or missed plastic part special attention should be paid to the insulation around the joint 3 Before putting the meter into operation confirm that the battery cover has been closed and clamped Before opening the battery cover remove the test leads from the meter 4 Inspect whether the insulation of the test leads is damaged or there is any exposed metal or not Check whether the test leads are conductive or not In case any damage with the conductor use the meter only after replacement 5 Do not measure any voltage or current which is higher than the allowable input value when it is impossible to determine the range of the value to be measured the function range switch should be set to maximum position Before carrying out the designed for professional industrial users The industrial design is rugged and durable and capable of withstanding the impact from 2 meters fall down The water proof rating is up to IP54 therefore it can be used in environment with water splashing or much more dust It is configured with LoZ Low impedance input AC voltage tap position which is capable of testing the false voltage auto backlight function can be used continuously under the circumstance of emergency power outage UT219E is much more in compliance with the CAT IV 600V safety level and certified by the German GS institution This Instruction Manual contains relevant safety information and warnings read relevant contents carefully and strictly follow all warnings and precautions II Unpacking Inspection Take out the meter after unpacking please inspect whether following accessories are missed or damaged or not if any missing or damage is found contact your supplier without any delay 1 Instruction Manual 1 copy 2 Probe 1 pair 1 2
