CAUTION

Do not measure above rated frequency (1kHz @ < 50A; 100Hz @ < 800A). In

measuring above rated frequency, the magnetic circuits may reach to a hazardous

temperature

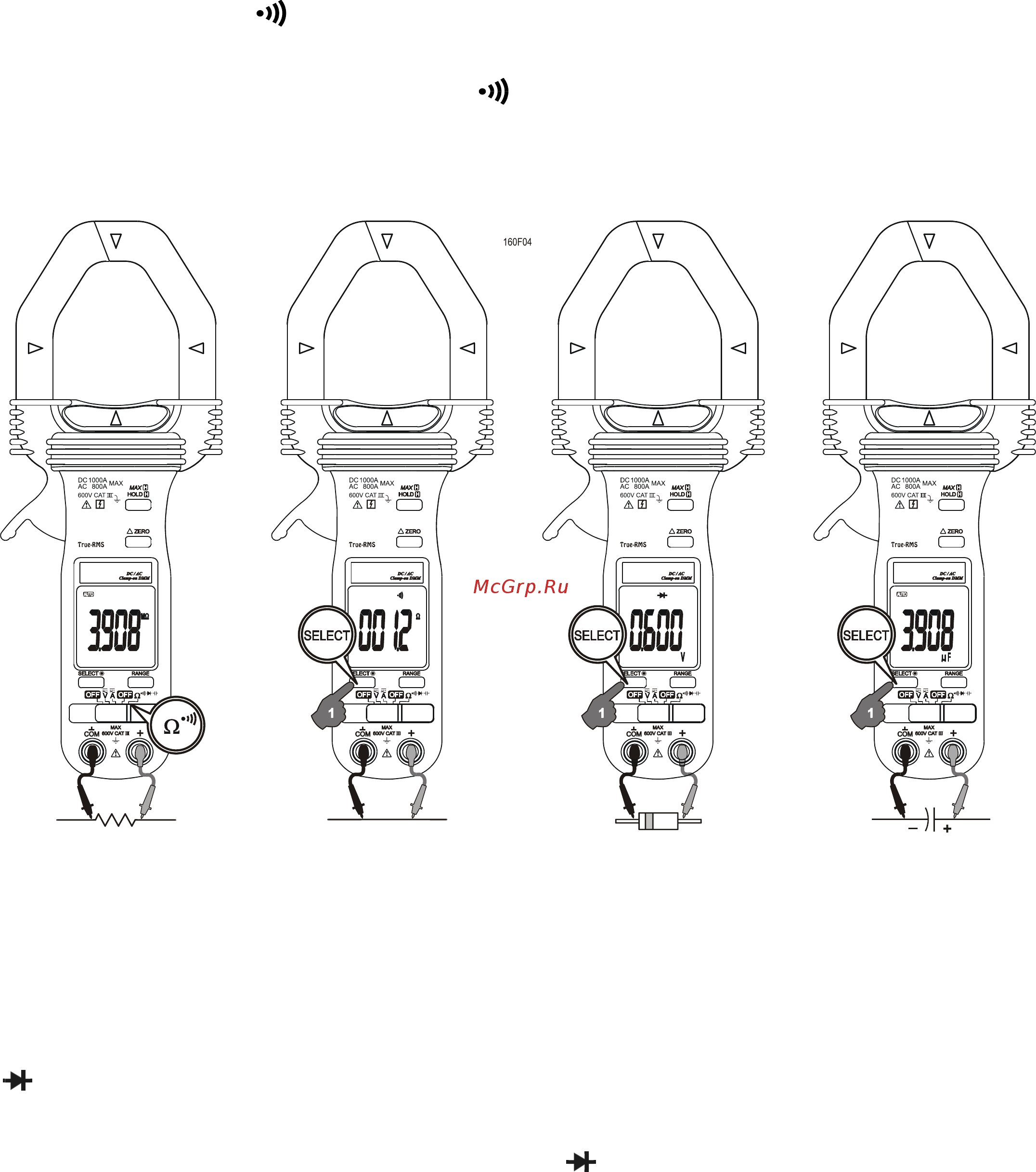

 Resistance, and Continuity functions

Inputs are made through the test leads terminals. Slide-switch on defaults at . Press

SELECT button momentarily to select Continuity function which is convenient for

checking wiring connections and operation of switches. A continuous beep tone

indicates a complete wire.

CAUTION

Using Resistance, Continuity or Diode function in a live circuit will produce false results

and may damage the instrument. In many cases the suspected component must be

disconnected from the circuit to obtain an accurate measurement reading

Diode test function

Inputs are made through the test leads terminals. Slide-switch on defaults at .

Press

SELECT button momentarily 2 times to select Diode test function. Normal forward

voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V. A

reading higher than that indicates a leaky diode (defective). A zero reading indicates a
